Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Park Brake Shoe Assembly
    GM64007Courtesy of GENERAL MOTORS CORP.
  1. Install the park brake shoe assembly by grasping the shoe and spreading slightly while pulling the shoe over the actuator assembly.

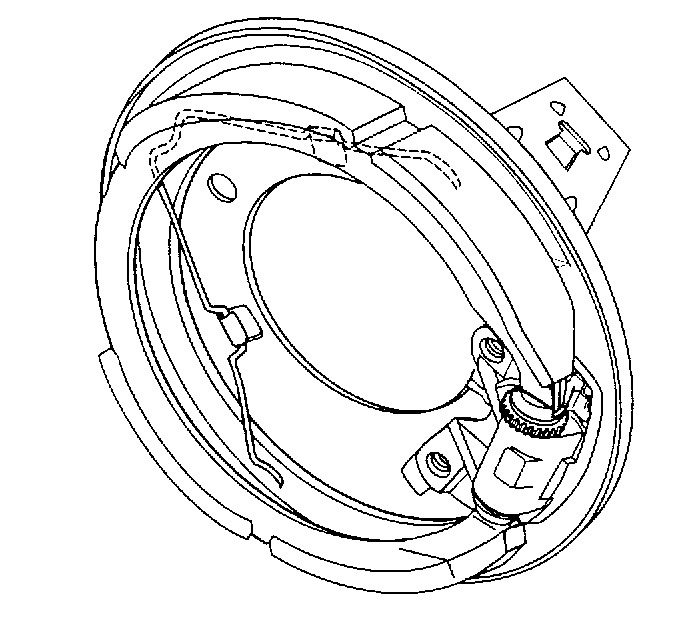

    2. Fig 2: View Of Park Brake Shoes
    GM64008Courtesy of GENERAL MOTORS CORP.
  2. Install the parking brake shoe retaining spring.
  3. Adjust the parking brake shoe-to-drum clearance. Refer to Park Brake Adjustment .
  4. Install the wheel bearing/hub. Refer to Wheel Bearing/Hub Replacement - Rear in Rear Suspension.
  5. Install the brake rotor. Refer to Brake Rotor Replacement - Rear in Disc Brakes.
