Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Front & Rear Park Brake Cables To Equalizer & Retainer
    GM99268Courtesy of GENERAL MOTORS CORP.
  1. Disable the park brake automatic adjuster. Refer to Disabling the Park Brake Cable Automatic Adjuster .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  3. Remove the RH muffler. Refer to Muffler Replacement - Right in Engine Exhaust.
  4. Disconnect the rear park brake cable at the retainer and equalizer.

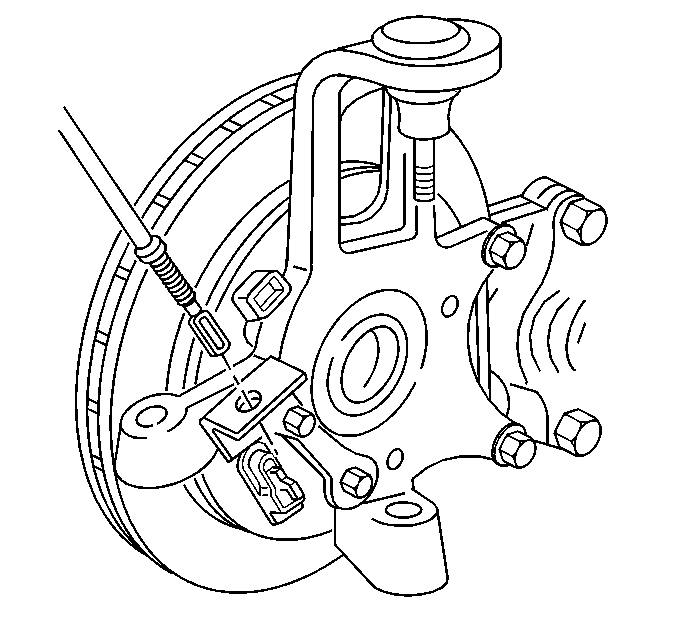

    5. Fig 2: Rear Park Brake Cable To Rear Suspension Mounting Bracket
    GM63999Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear park brake cable from the rear suspension mounting bracket.
  6. Remove the rear park brake cable retainer nut.
  7. Remove the rear park brake cable from the vehicle.
