Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check to be sure that the park brake is released.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  3. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
    4. Fig 1: View Of Park Brake Cable & Apply Lever
    GM64001Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the park brake cable from the park brake apply lever.
    5. Fig 2: Inspecting Caliper For Looseness
    GM171943Courtesy of GENERAL MOTORS CORP.
  5. Install a C-clamp over the body of the brake caliper, with the C-clamp ends against the rear of the caliper body and the outboard disc brake pad.
  6. Using the C-clamp, compress the piston into the caliper bore just enough to allow the caliper to slide away from the rotor.
  7. Remove the C-clamp.
    8. NOTE: Support the brake caliper with heavy mechanic's wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.
  8. Remove the caliper bracket bolts. Do not disconnect the brake flexible hose bolt.
  9. Remove the brake caliper and the caliper mounting bracket as an assembly from the suspension knuckle and support the assembly with heavy mechanic's wire, or equivalent. Ensure that there is no tension on the hydraulic brake flexible hose. Refer to Brake Caliper Bracket Replacement - Rear .
  10. Matchmark the position of the brake rotor to the wheel studs.
  11. Remove the brake rotor. Do not force the rotor off. If the rotor is difficult to remove, ease it off by gently rotating it as you pull outward.

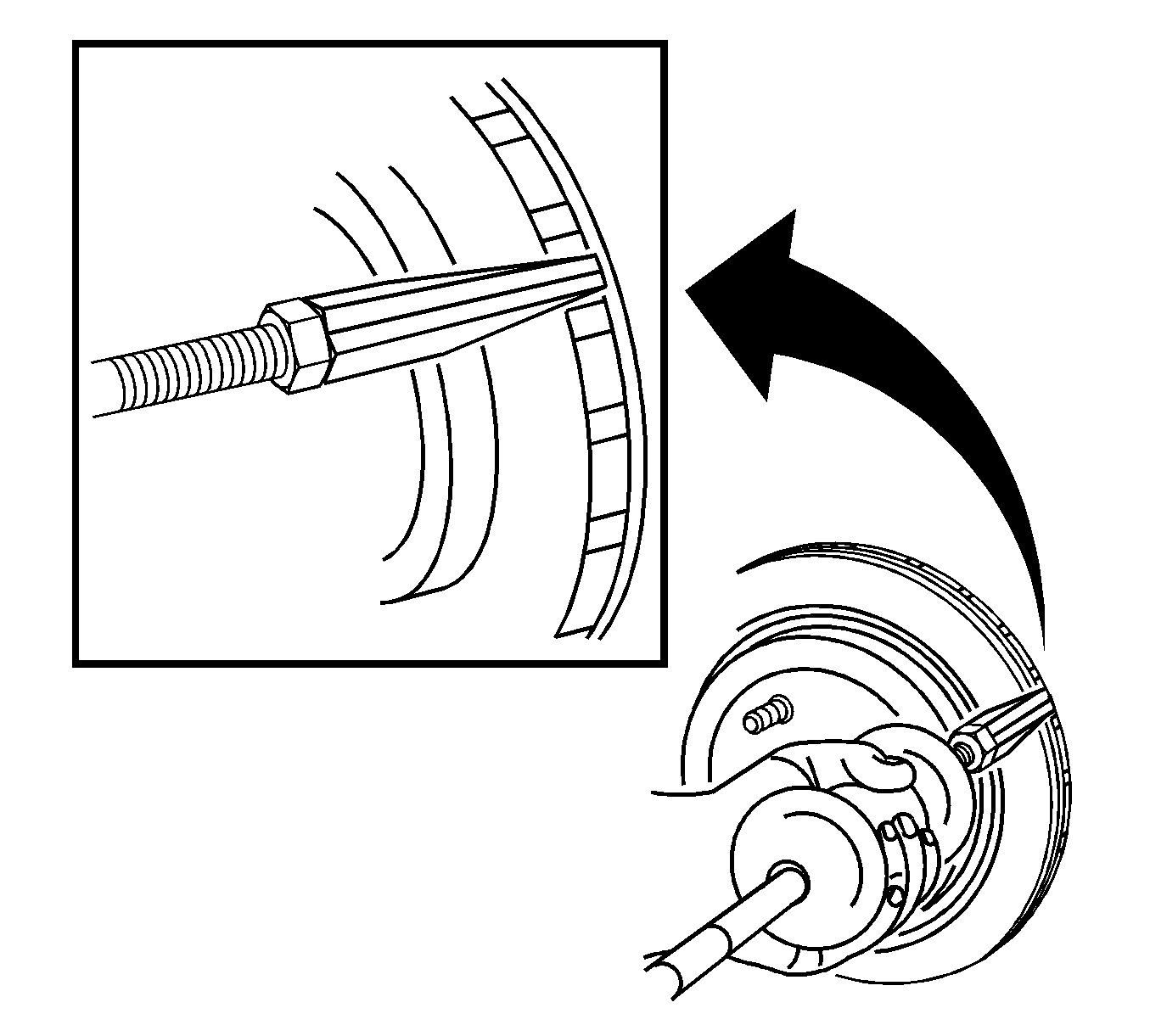

    12. Fig 3: View Of Rotor From Hub Assembly Removal Using J-46277 & J 2619-01
    GM1471360Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The following service procedure is to be used only if the rear brake rotors cannot be removed without using force.
  12. If the rear brake cannot be removed, perform the following:
    1. AssembleJ-46277  to. See Special Tools and Equipment .J 2619-01  . See Special Tools and Equipment .
    2. Insert J-46277  between the rotor friction surfaces in the vent section of the rotor. See Special Tools and Equipment . DO NOT place the J-46277  on the rotor friction surface. See Special Tools and Equipment .
    3. Using the J-46277  and. See Special Tools and Equipment .J 2619-01  , remove the rotor from the hub assembly. See Special Tools and Equipment .
    4. Inspect the park brake components for the following conditions:
      • Bent or broken hold down spring
      • Broken, cracked or worn brake shoe lining
      • Bent or damaged brake shoe
      • Worn, bent or damaged backing plate
    5. Replace any defective parts found.
