Removal Procedure
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer to Brake Dust Caution
in Cautions and Notices.

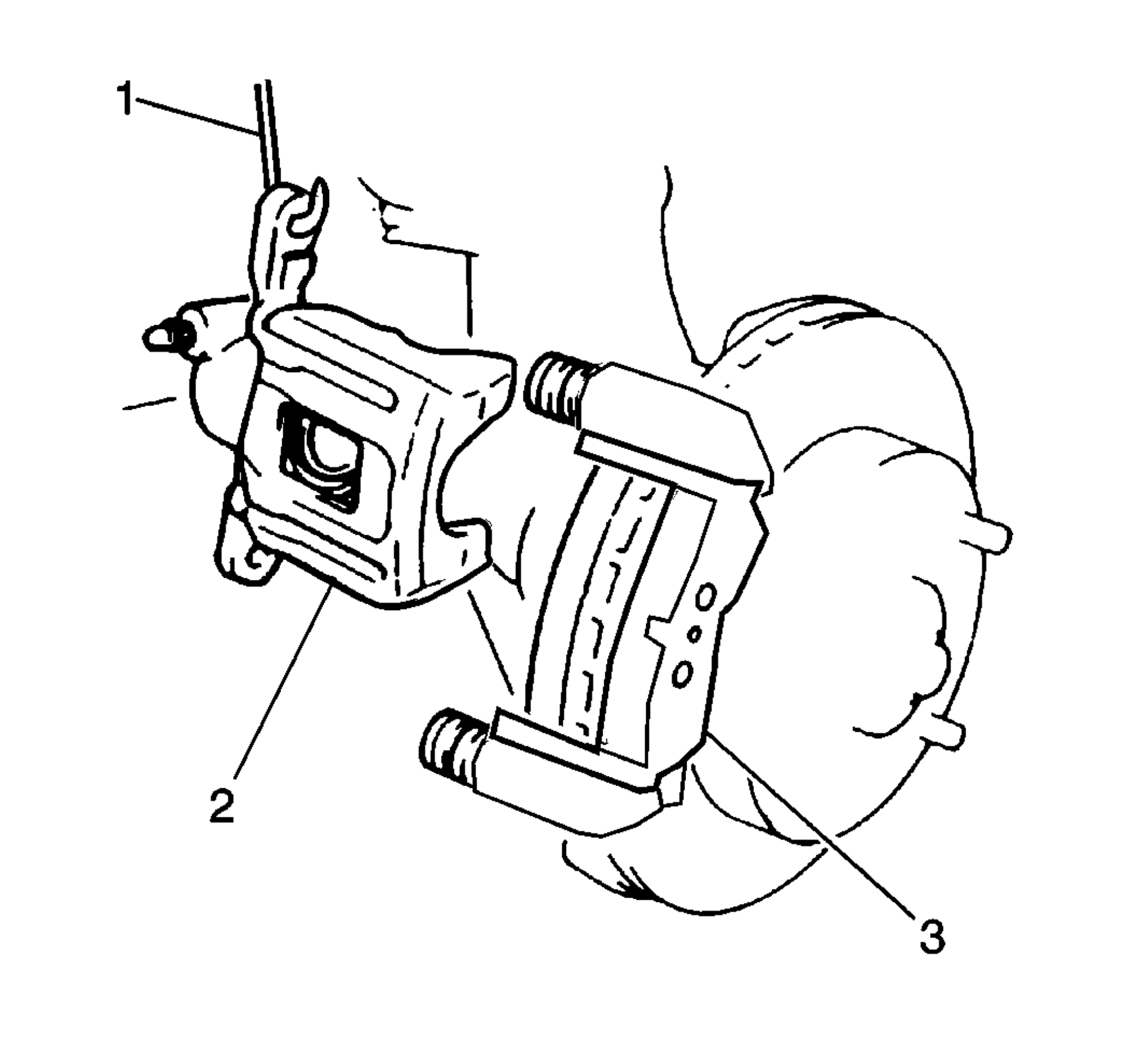

- Remove the brake caliper from the mounting bracket and support the brake caliper (2) with heavy mechanic's wire (1), or equivalent; do NOT disconnect the hydraulic brake flexible hose from the caliper. Refer to Brake Caliper Replacement - Rear .
- Remove the brake pads (1) from the brake caliper bracket (3).
- Remove the brake pad retainers (2) from the brake caliper bracket (3).
- Remove the brake caliper bracket bolts (1) and discard.
- Remove the brake caliper bracket.
- Inspect the brake mounting and hardware. Refer to Disc Brake Mounting and Hardware Inspection - Rear .
- Inspect the brake caliper bracket for cracks or damage.
- Replace the brake caliper bracket if cracked or damaged.
- Clean all the bolt adhesive residue from the brake caliper mounting bracket and the knuckle mating surfaces.
NOTE:
Support the brake caliper with heavy mechanic's wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.
IMPORTANT:
The brake caliper mounting bracket bolts must not be reused. Replace the bolts with new bolts whenever the bolts are removed or become loose.
