Steering Controls Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Power, Ground, And DLC Schematics
GM687601Courtesy of GENERAL MOTORS CORP.

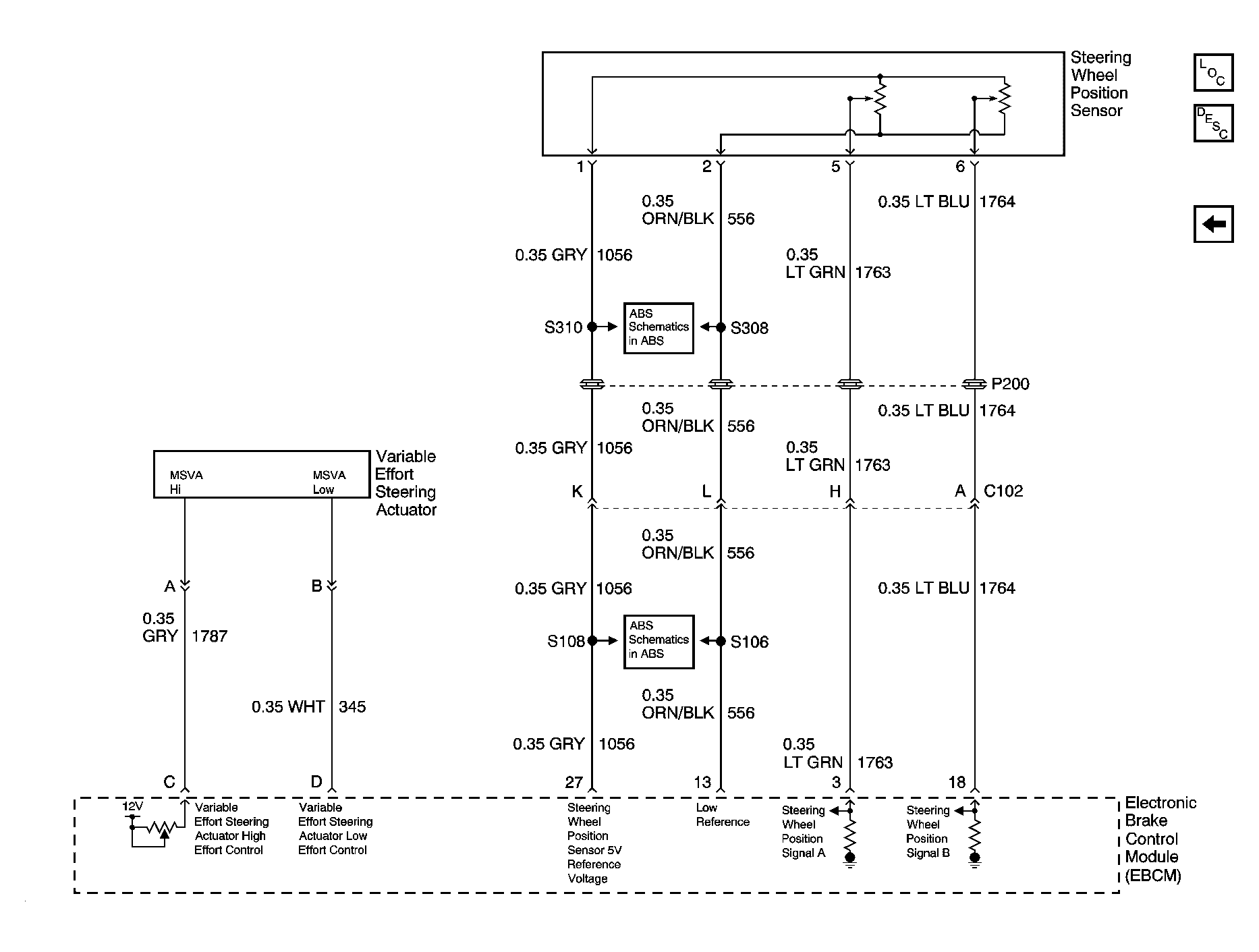

Fig 2: Steering Wheel Position Sensor Schematics
GM687611Courtesy of GENERAL MOTORS CORP.
