Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

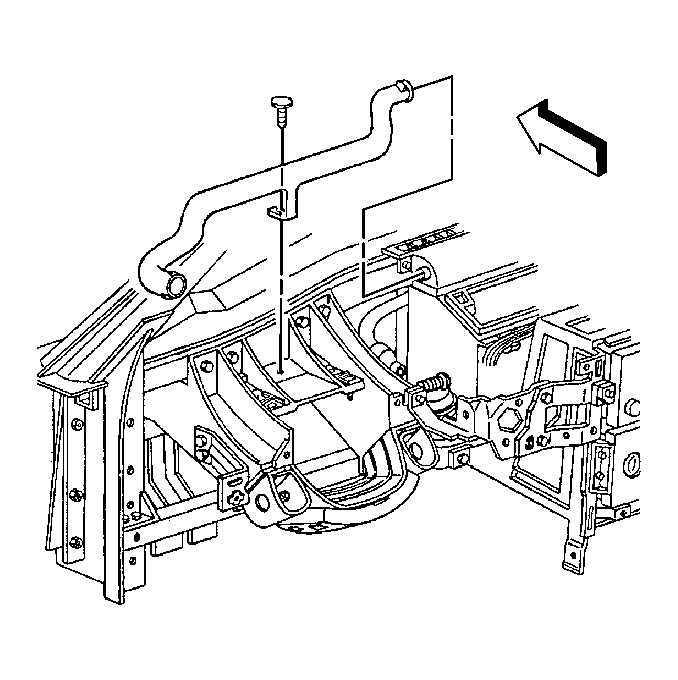

    Fig 1: LH Side Window Defogger Lower Outlet Duct
    GM95655Courtesy of GENERAL MOTORS CORP.
  1. Install the side window defogger lower outlet duct.
    1. Use a twisting motion to secure the lower duct to the windshield defroster duct.
    2. Install the push-in retainer.
    2. Fig 2: LH Side Window Defogger Upper Outlet Duct
    GM95657Courtesy of GENERAL MOTORS CORP.
  2. Install the side window defogger upper outlet duct.
    1. Use a twisting motion to secure the upper duct to the lower duct.
    2. Install the push-in retainers.
  3. Install the I/P upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper in Instrument Panel, Gages and Console.
