Balancing Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: The refrigerant oil in the A/C system must be balanced during compressor replacement.
    Follow the balancing instructions provided with the compressor.
  1. The replacement compressor is shipped without refrigerant oil.

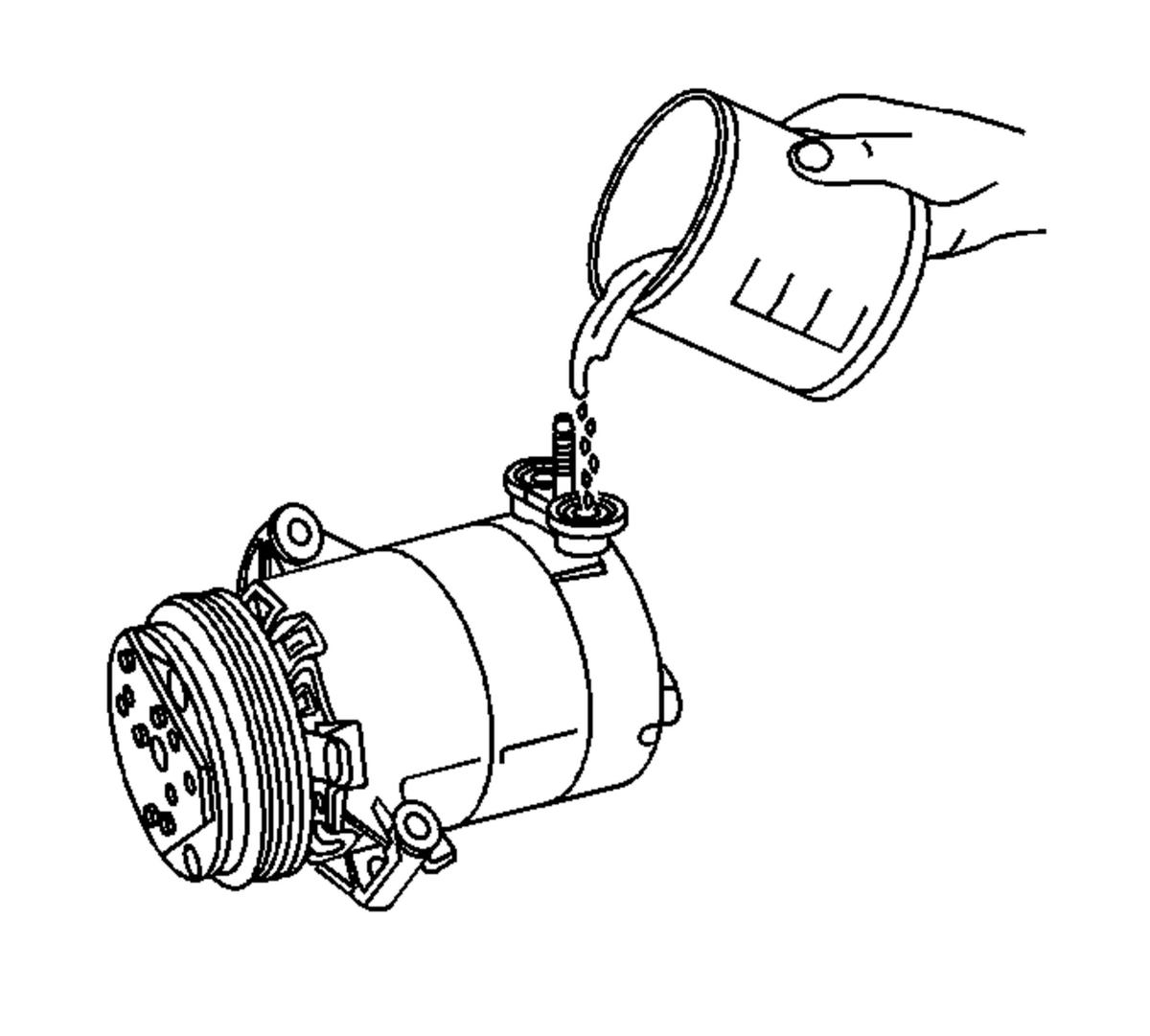

    2. Fig 1: Replacing Measured Compressor Oil
    GM823337Courtesy of GENERAL MOTORS CORP.
  2. Calculate the amount of refrigerant oil required for oil balancing.

    Compare the following refrigerant oil capacities:

    • The amount drained and recorded during compressor removal.
    • The amount recommended for component replacement. Refer to Refrigerant System Capacities .
  3. Add the greater amount of refrigerant oil to the A/C compressor.
