Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

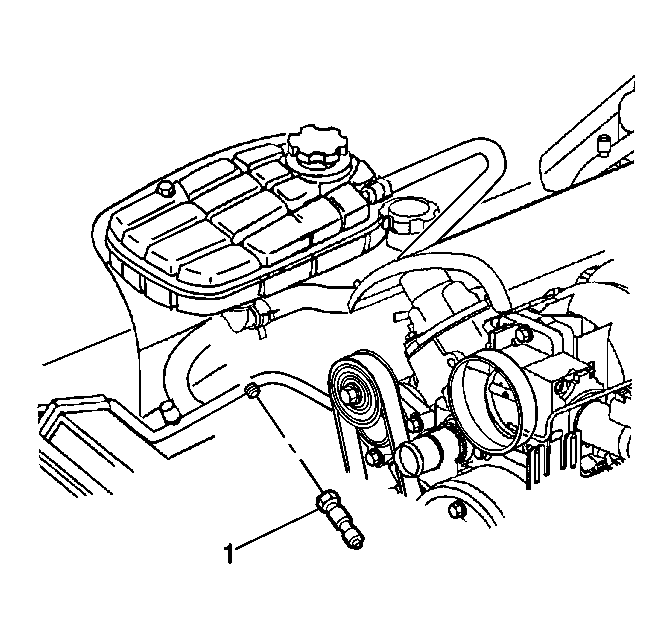

    Fig 1: Front Evaporator Tube & Pressure Sensor
    GM380079Courtesy of GENERAL MOTORS CORP.
  1. Install a new O-ring. Refer to O-Ring Replacement .
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the pressure sensor (1) to the evaporator tube - front.

    Tighten:  Tighten the sensor to 4.75 N.m (42 lb in).

    3. Fig 2: Refrigerant Pressure Sensor & Electrical Connector
    GM380181Courtesy of GENERAL MOTORS CORP.
  3. Connect the pressure sensor electrical connector.
  4. Leak test the fittings of the component using J 39400-A  . See Special Tools and Equipment .
