Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

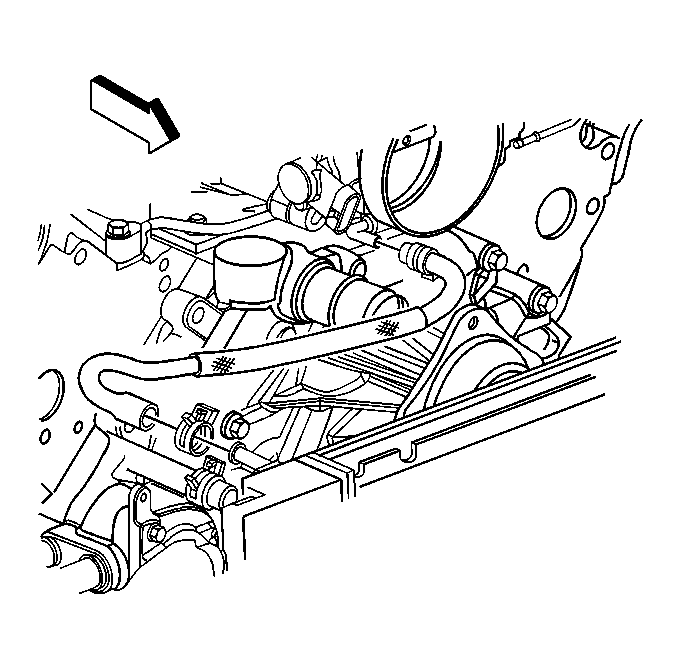

    Fig 1: Throttle Body Heater Outlet Hose
    GM672639Courtesy of GENERAL MOTORS CORP.
  1. Install the throttle body heater outlet hose to the radiator and throttle body.
  2. Position the throttle body heater outlet hose clamps at the radiator and throttle body.
  3. Install the radiator support. Refer to Radiator Support Replacement .
  4. Fill the cooling system. Refer to Draining and Filling Cooling System .
