Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
    2. Fig 1: Radiator Inlet Hose
    GM64025Courtesy of GENERAL MOTORS CORP.
  2. Remove the radiator support. Refer to Radiator Support Replacement .
  3. Reposition the radiator inlet hose clamp from the radiator using J 38185  . See Special Tools and Equipment .
  4. Remove the radiator inlet hose from the radiator.
  5. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

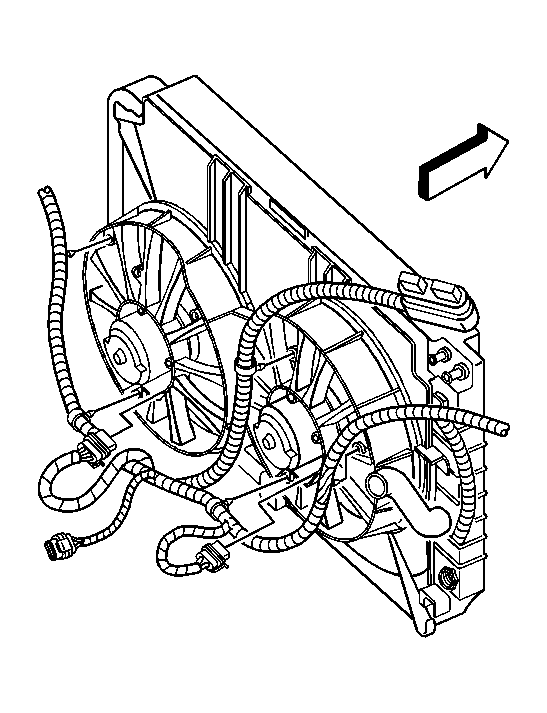

    6. Fig 2: Cooling Fan Electrical Connectors
    GM672687Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the cooling fan electrical connectors.
  7. Remove the forward lamp harness from the retaining clips on the shroud.
    8. Fig 3: Radiator Outlet Hose & Clamp
    GM64026Courtesy of GENERAL MOTORS CORP.
  8. Reposition the radiator outlet hose clamp from the radiator using J 38185  . See Special Tools and Equipment .
  9. Remove the radiator outlet hose from the radiator.
  10. Lower the vehicle.
  11. Remove fan shroud.
