Special Tools

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Number/Description
Courtesy of GENERAL MOTORS CORP.	Scan Tool
Courtesy of GENERAL MOTORS CORP.	J 21867 Pressure Gage

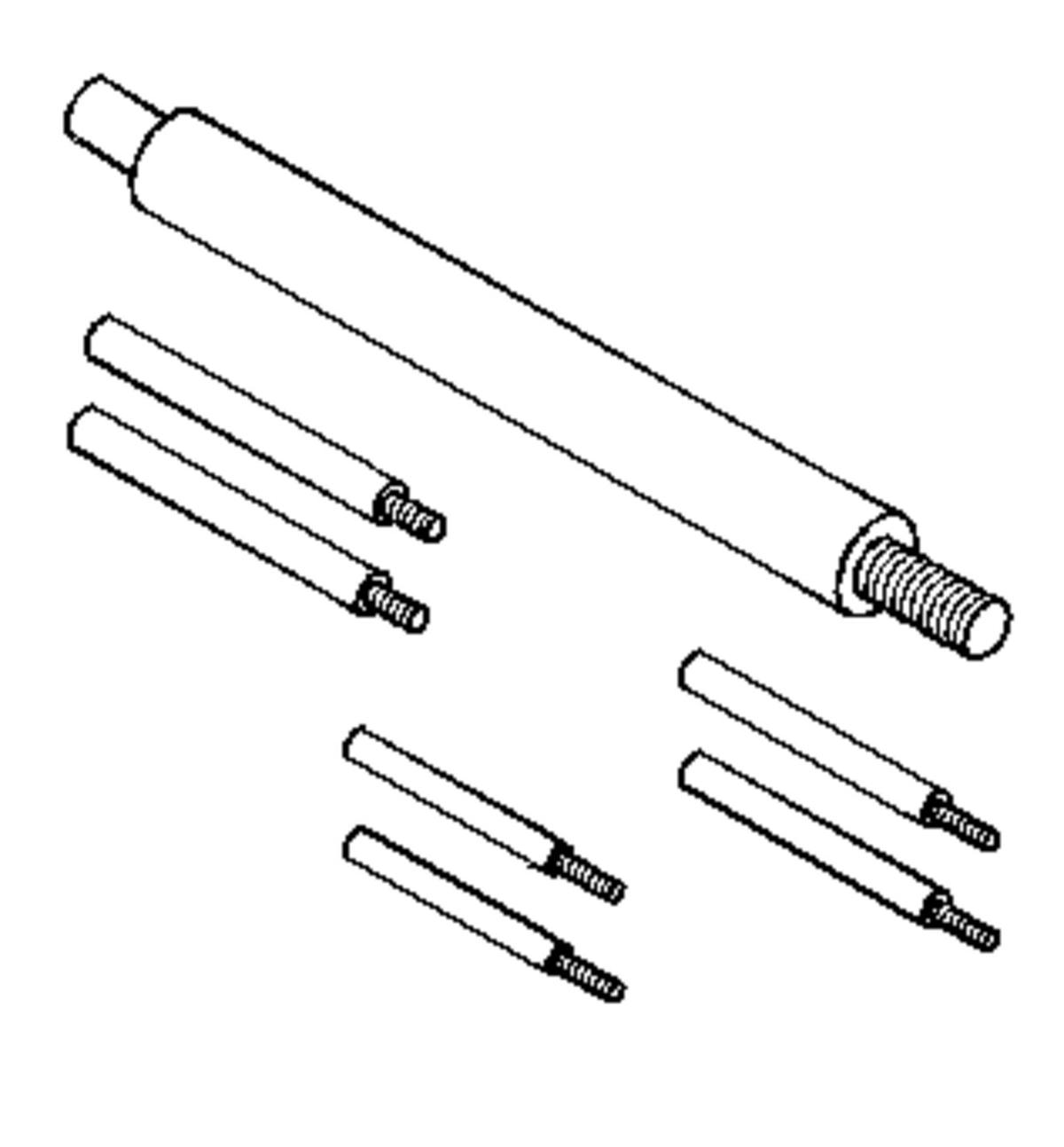

Courtesy of GENERAL MOTORS CORP.	J 25025-B Pump and Valve Body Alignment
Courtesy of GENERAL MOTORS CORP.	J 28458 Power Piston Seal Protector
Courtesy of GENERAL MOTORS CORP.	J 28467-B Universal Engine Support Fixture
Courtesy of GENERAL MOTORS CORP.	J 35616-B GM Terminal Test Kit
Courtesy of GENERAL MOTORS CORP.	J 35944-A Transmission Oil Cooler Flusher
Courtesy of GENERAL MOTORS CORP.	J 35944-22 Transmission Oil Cooler Flushing Fluid
Courtesy of GENERAL MOTORS CORP.	J 35944-200 Cooler Flushing Adapter
Courtesy of GENERAL MOTORS CORP.	J 35944-600 Transmission Cooler Flush Adapter

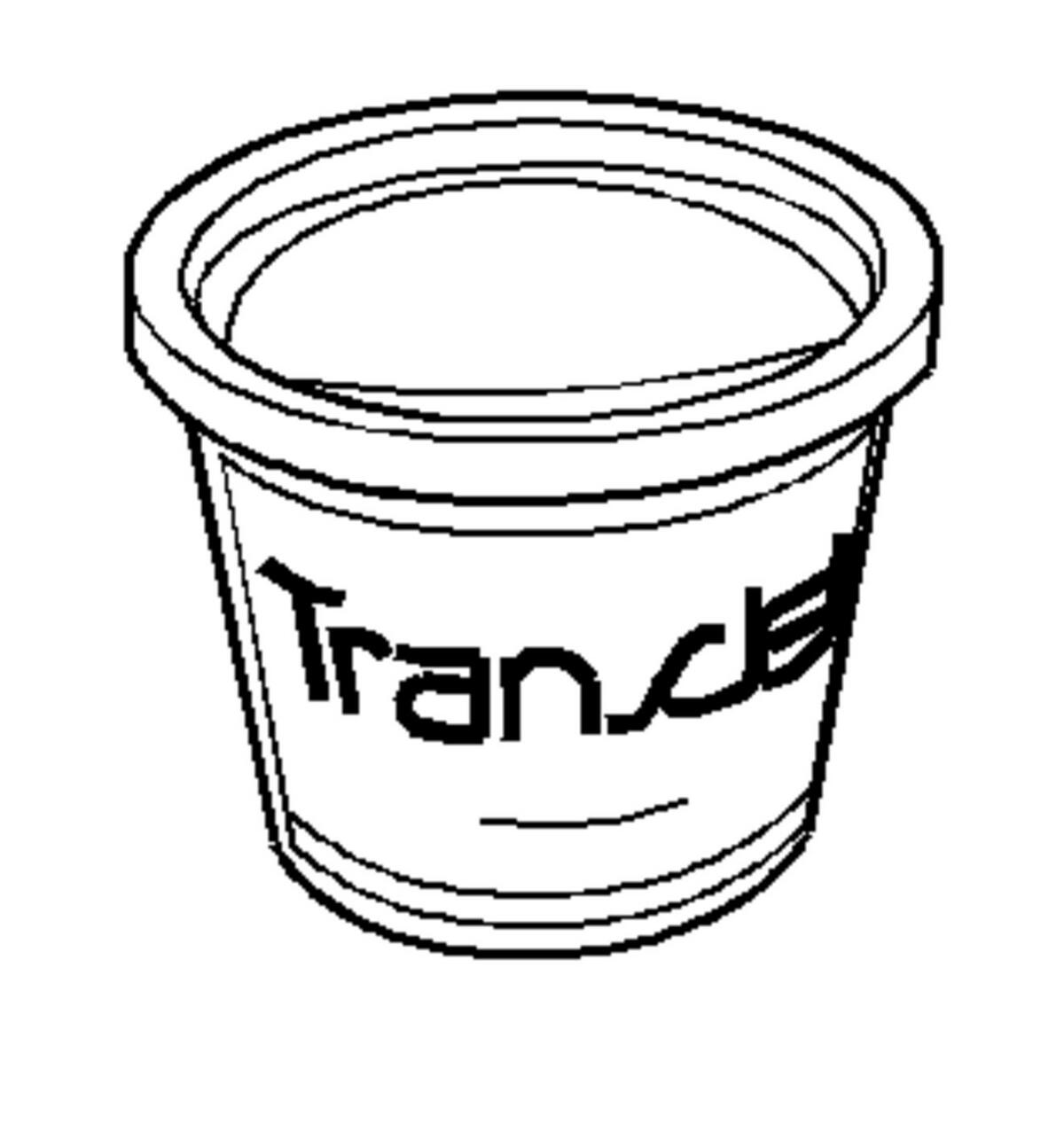

Courtesy of GENERAL MOTORS CORP.	J 36850 Transmission Assembly Lubricant
Courtesy of GENERAL MOTORS CORP.	J 38185 Hose Clamp Pliers
Courtesy of GENERAL MOTORS CORP.	J 39200 Digital Multimeter (DMM)
Courtesy of GENERAL MOTORS CORP.	J 41364-A Neutral Position Adjustment Tool

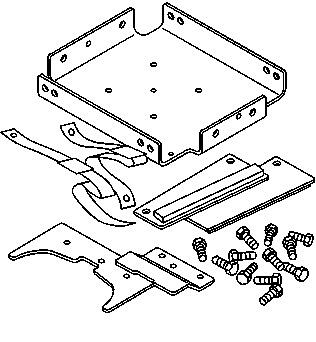

Courtesy of GENERAL MOTORS CORP.	J 42055 Transmission Support Fixture
Courtesy of GENERAL MOTORS CORP.	J 42386-A Flywheel Holding Tool
Courtesy of GENERAL MOTORS CORP.	J 44152 Jumper Harness (20 pins)
Courtesy of GENERAL MOTORS CORP.	J 44246 Solenoid Testing Kit
Courtesy of GENERAL MOTORS CORP.	J 44827 Transmission Cooler Quick Disconnect
Courtesy of GENERAL MOTORS CORP.	J 45096 Transmission Oil Cooling System Flush and Flow Test Tool
