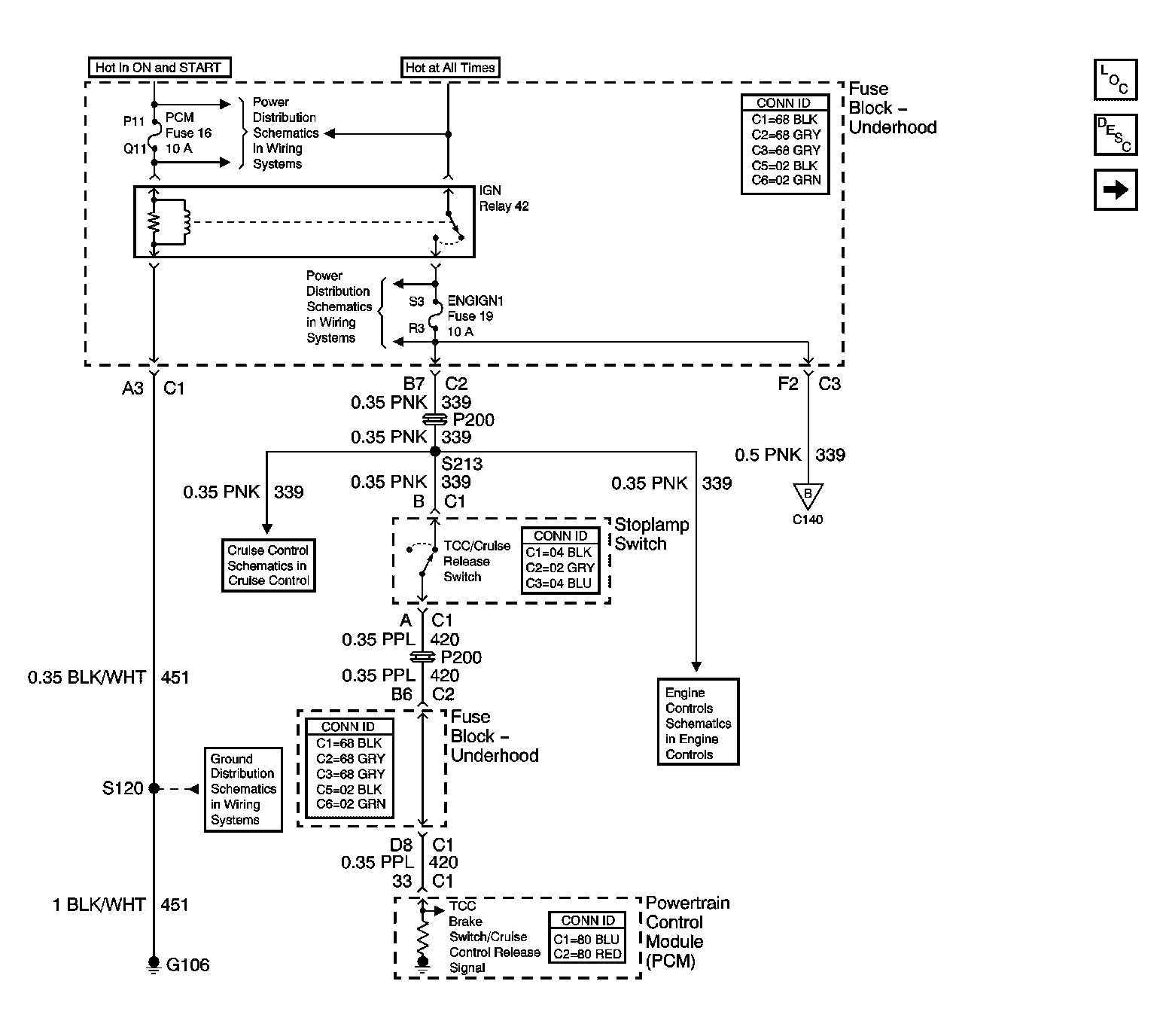

Fig 1: Torque Convertor Clutch (TCC) Control Switch Schematics
Courtesy of GENERAL MOTORS CORP.

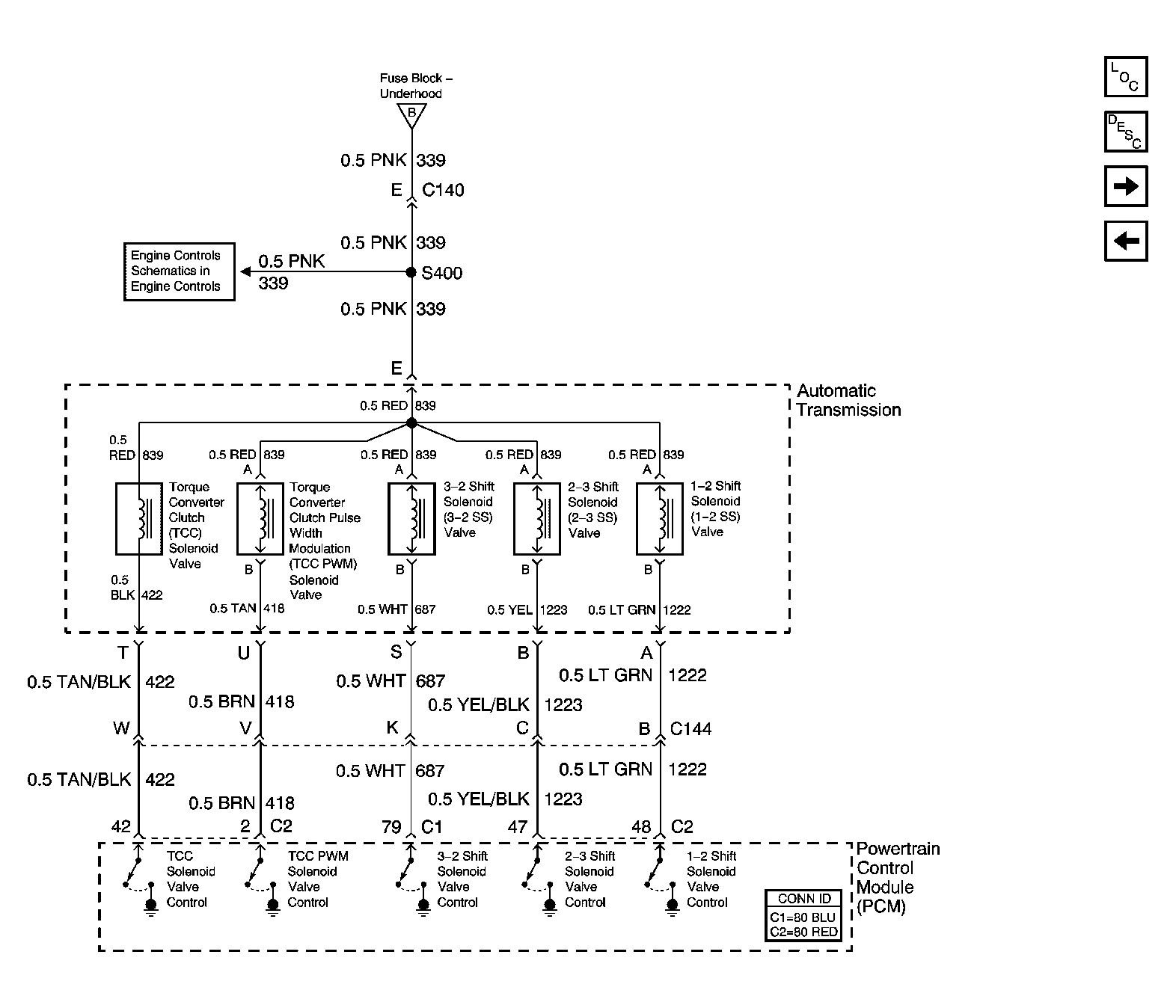

Fig 2: Transmission Valve Controls Schematics
Courtesy of GENERAL MOTORS CORP.

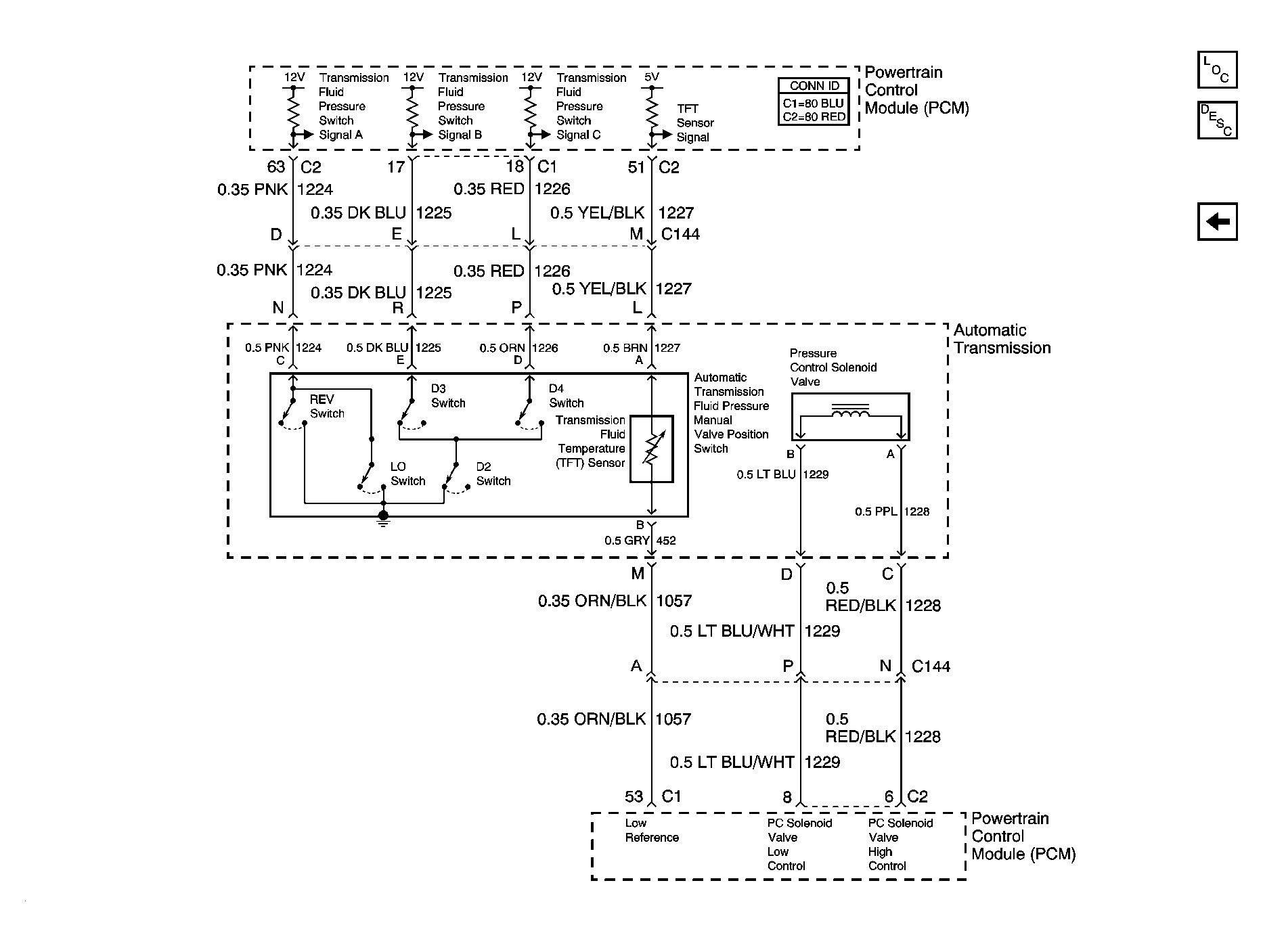

Fig 3: Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch And Pressure Control Solenoid (PC SOL) Valve Schematics
