Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Oil Pan Cover Bolts, Cover & Gasket
    GM639841Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install a new gasket, the cover, and bolts.

    Tighten:  Tighten the oil pan cover bolts to 12 N.m (106 lb in).

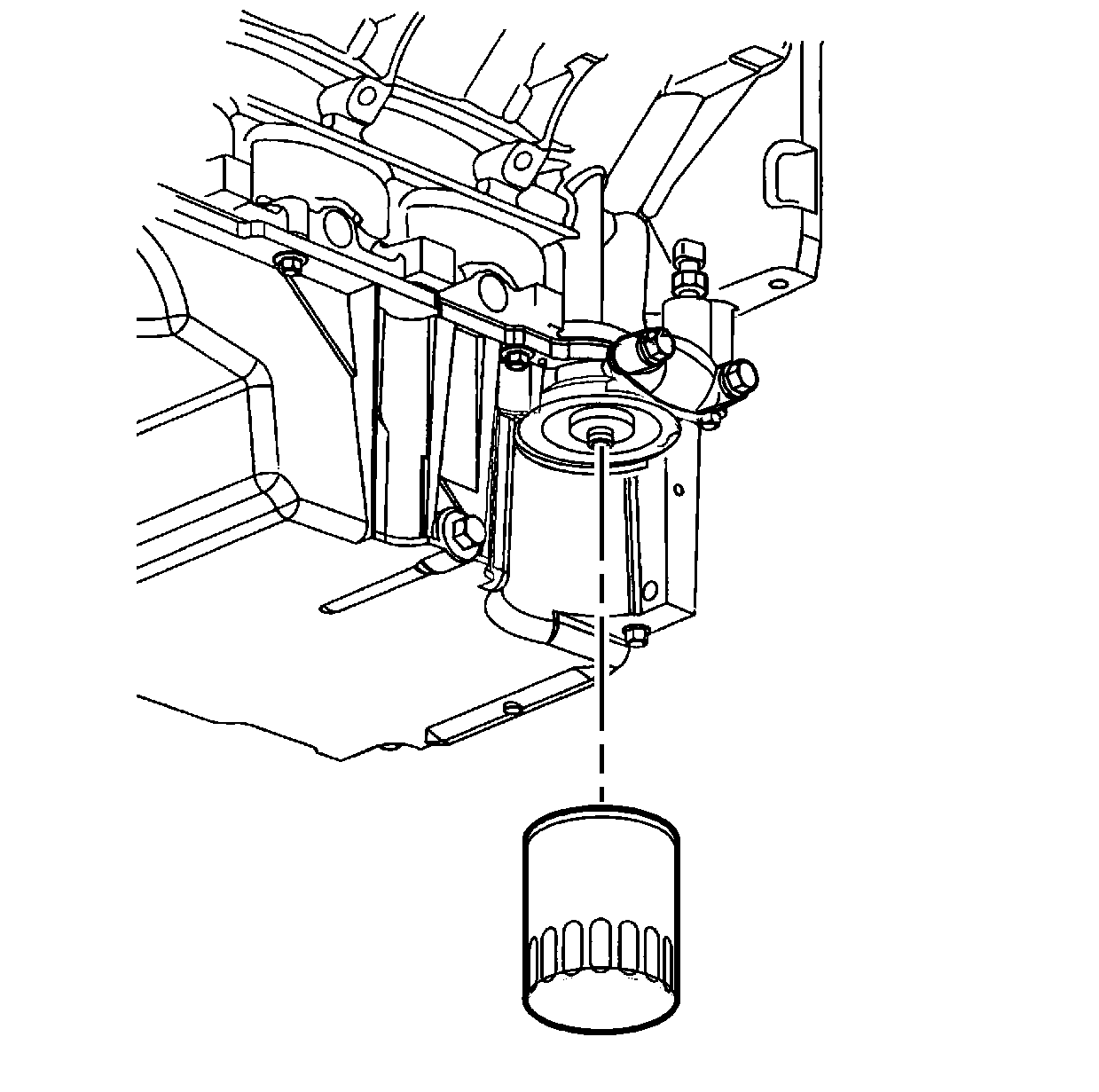

    2. Fig 2: Oil Filter
    GM639842Courtesy of GENERAL MOTORS CORP.
  2. Install the oil filter.

    Tighten:  Tighten the oil filter to 30 N.m (22 lb ft).

  3. Refill the engine oil.
