SIR Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

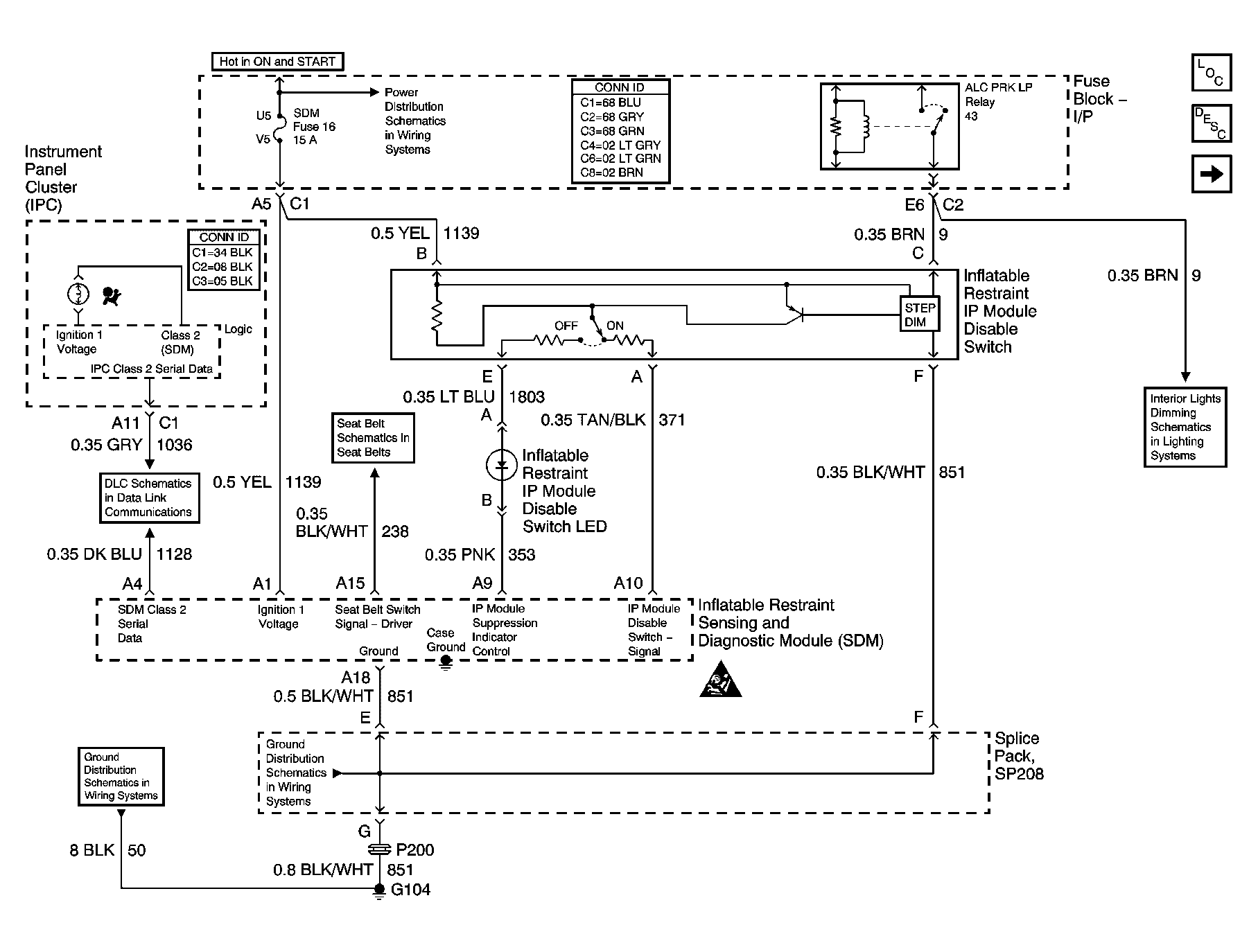

Fig 1: Passenger Side Inflatable Restraint Schematics (PSIR) I/P Module Switch
GM691151Courtesy of GENERAL MOTORS CORP.

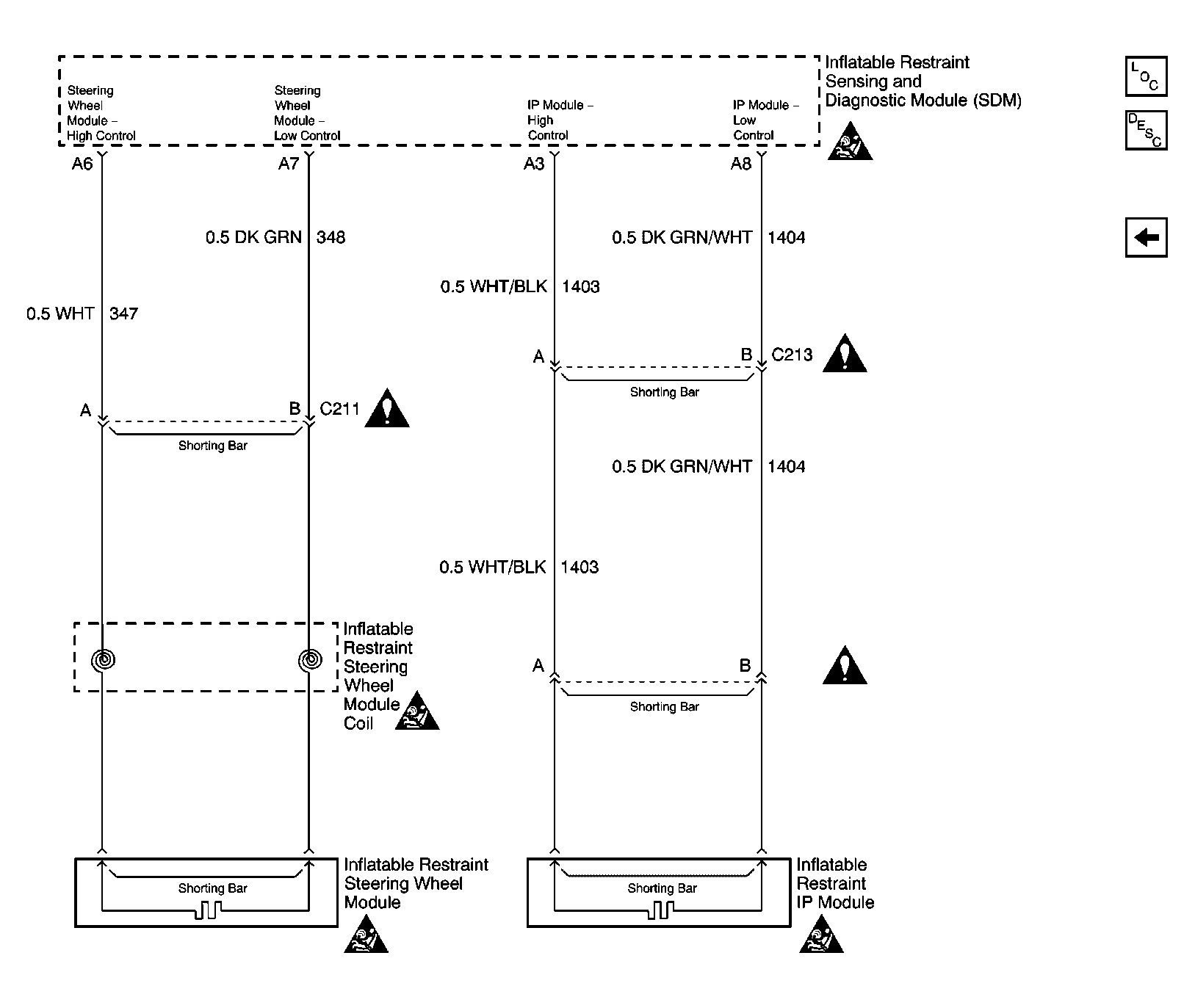

Fig 2: Inflatable Restraint Modules Schematics
GM691154Courtesy of GENERAL MOTORS CORP.
