Suspension Controls Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

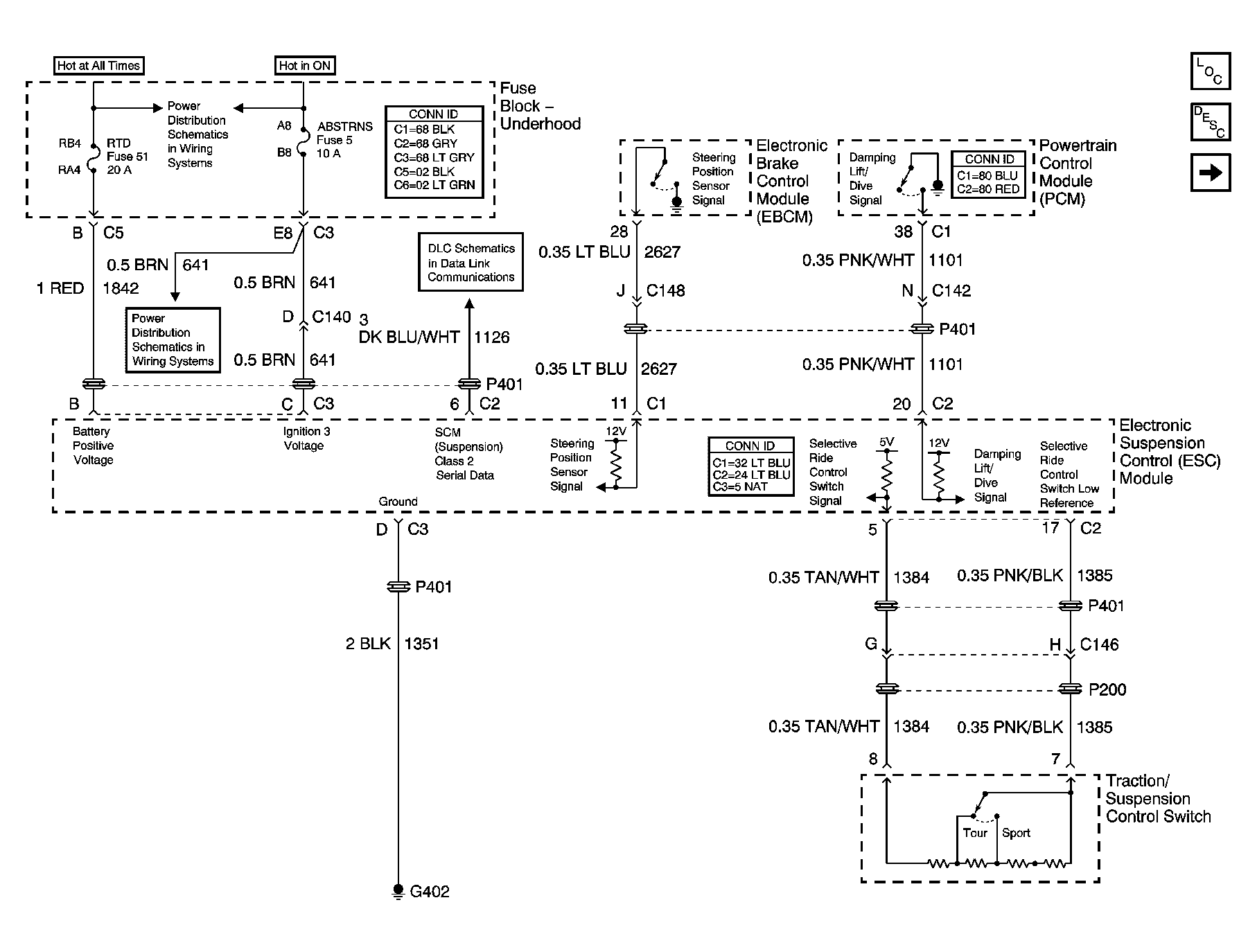

Fig 1: Power, Ground, DLC, And Controls Schematics

Courtesy of GENERAL MOTORS CORP.

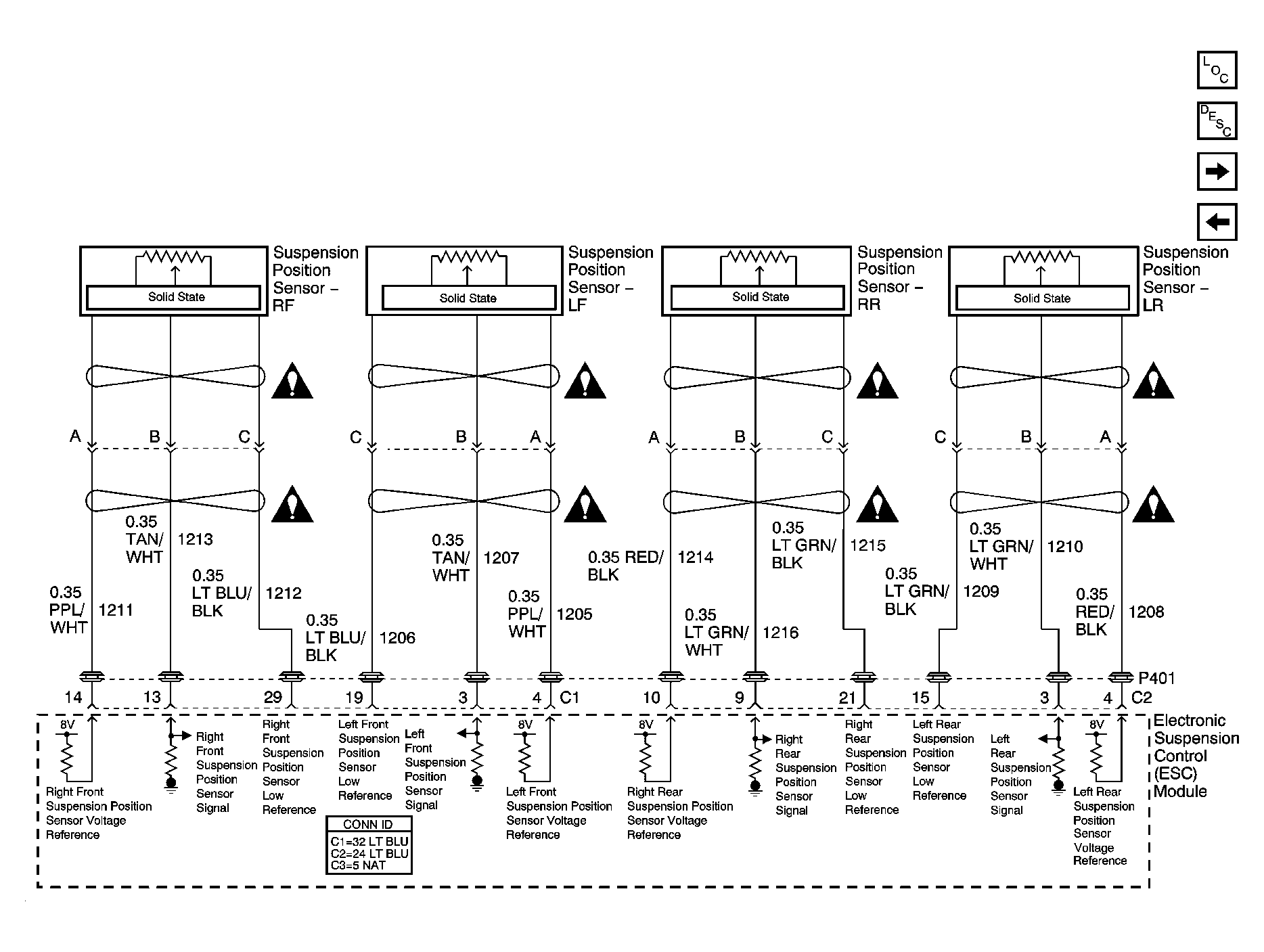

Fig 2: Suspension Position Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

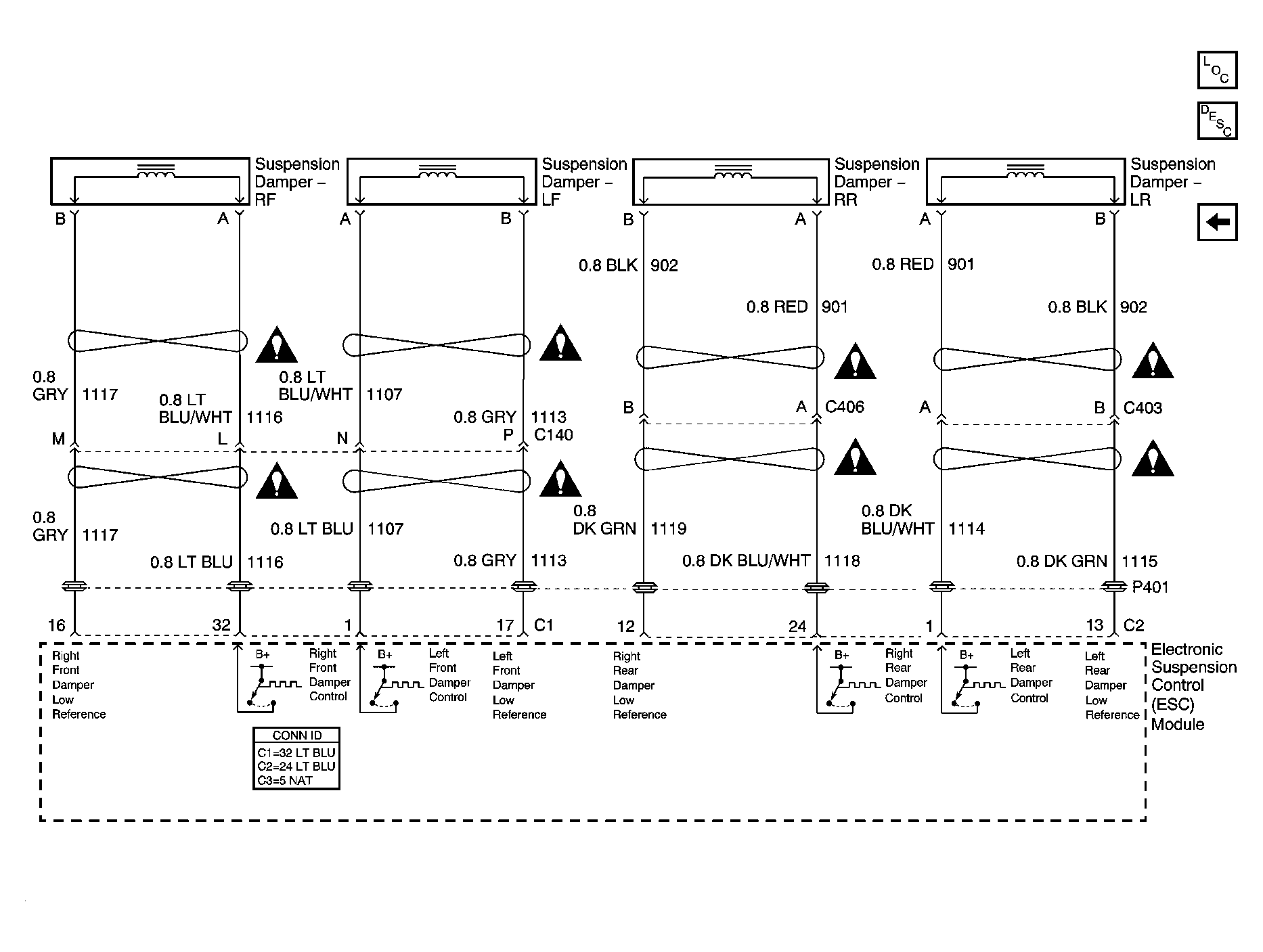

Fig 3: Suspension Dampers Schematics

Courtesy of GENERAL MOTORS CORP.
