HVAC Vacuum Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

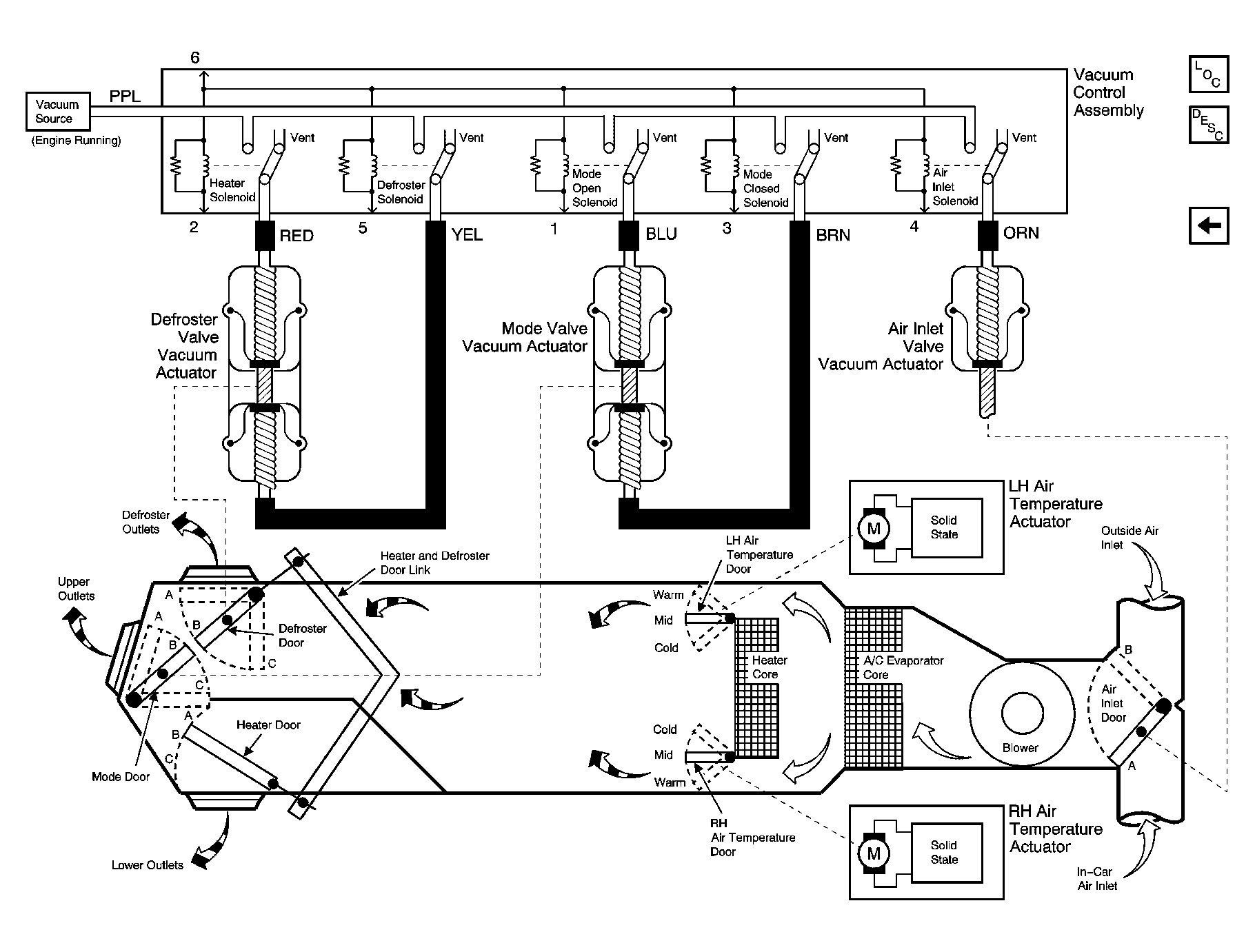

Fig 1: Air Delivery Schematics (CJ2)
GM1234213Courtesy of GENERAL MOTORS CORP.
