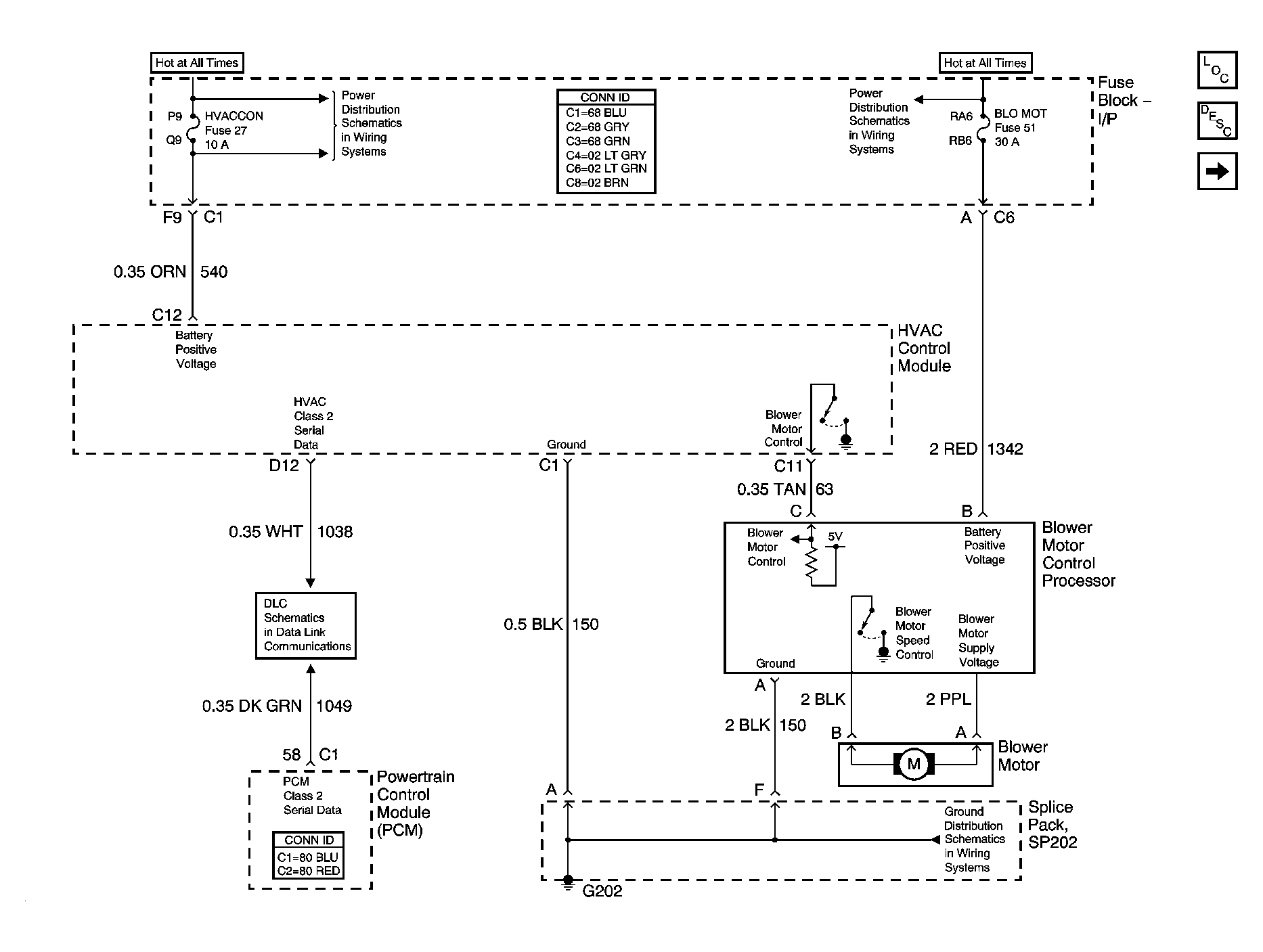

Fig 1: Blower Controls Schematics
Courtesy of GENERAL MOTORS CORP.

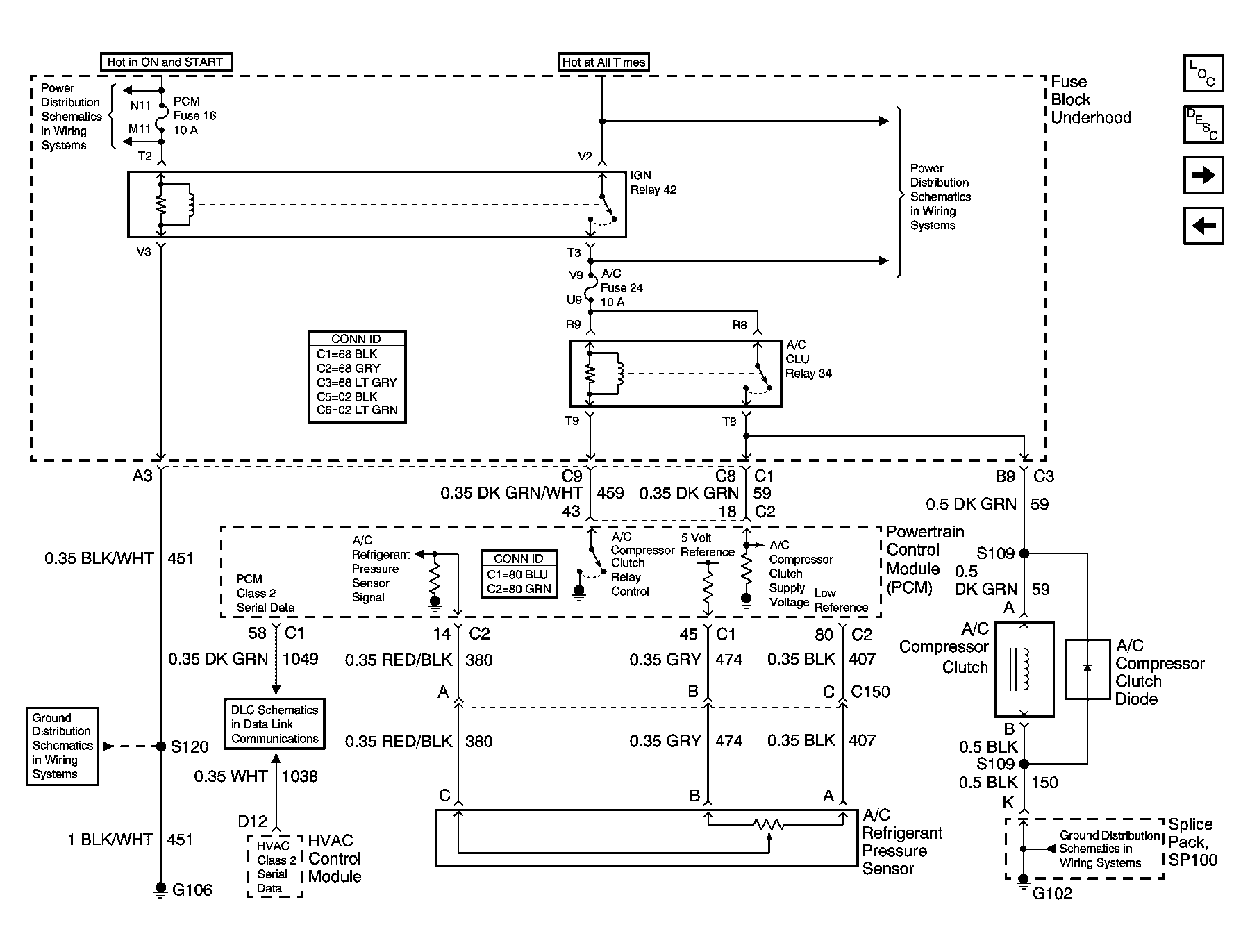

Fig 2: Compressor Controls Schematics
Courtesy of GENERAL MOTORS CORP.

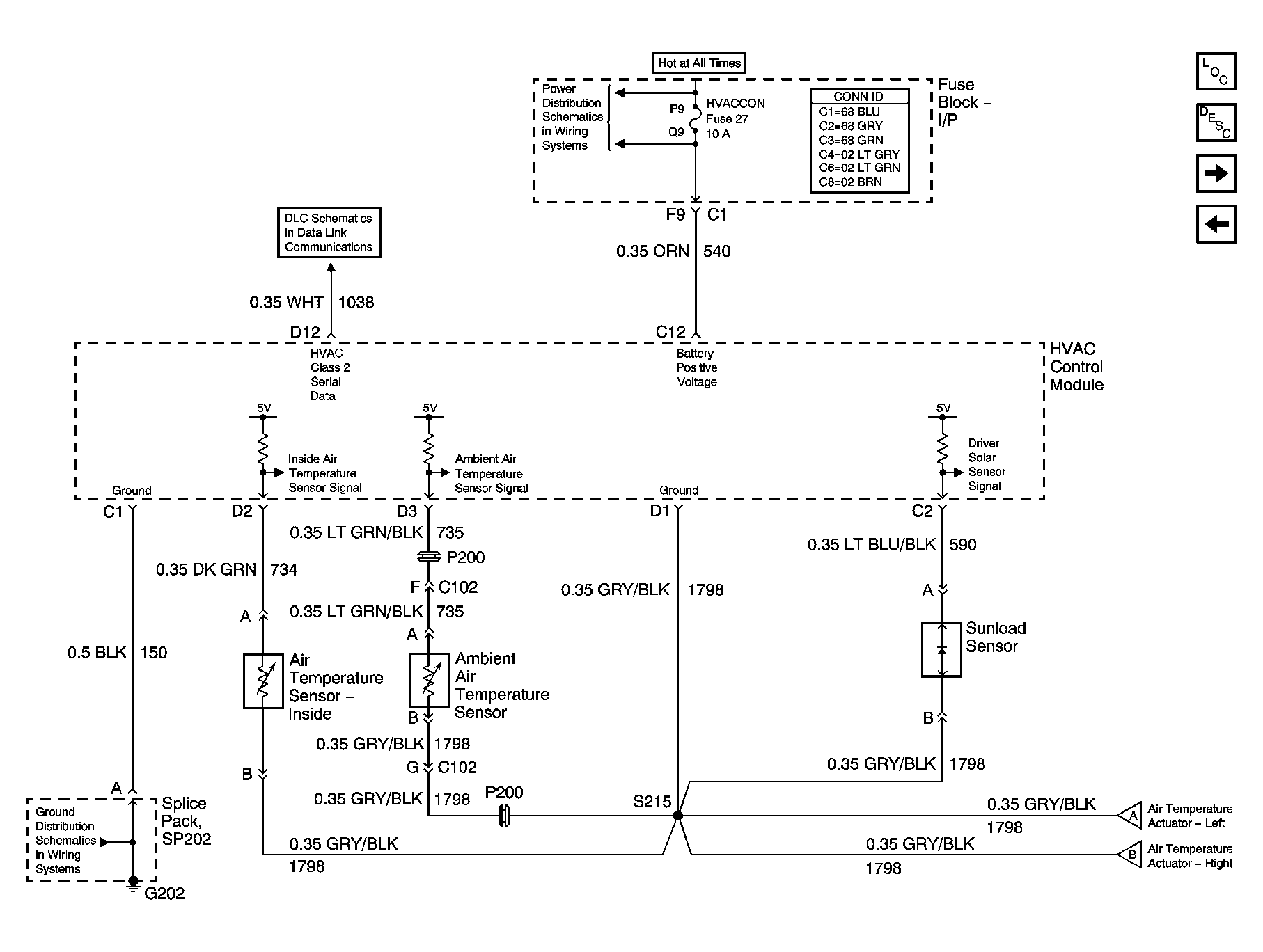

Fig 3: Air Delivery/Temperature Controls Schematics - Power, Ground And DLC
Courtesy of GENERAL MOTORS CORP.

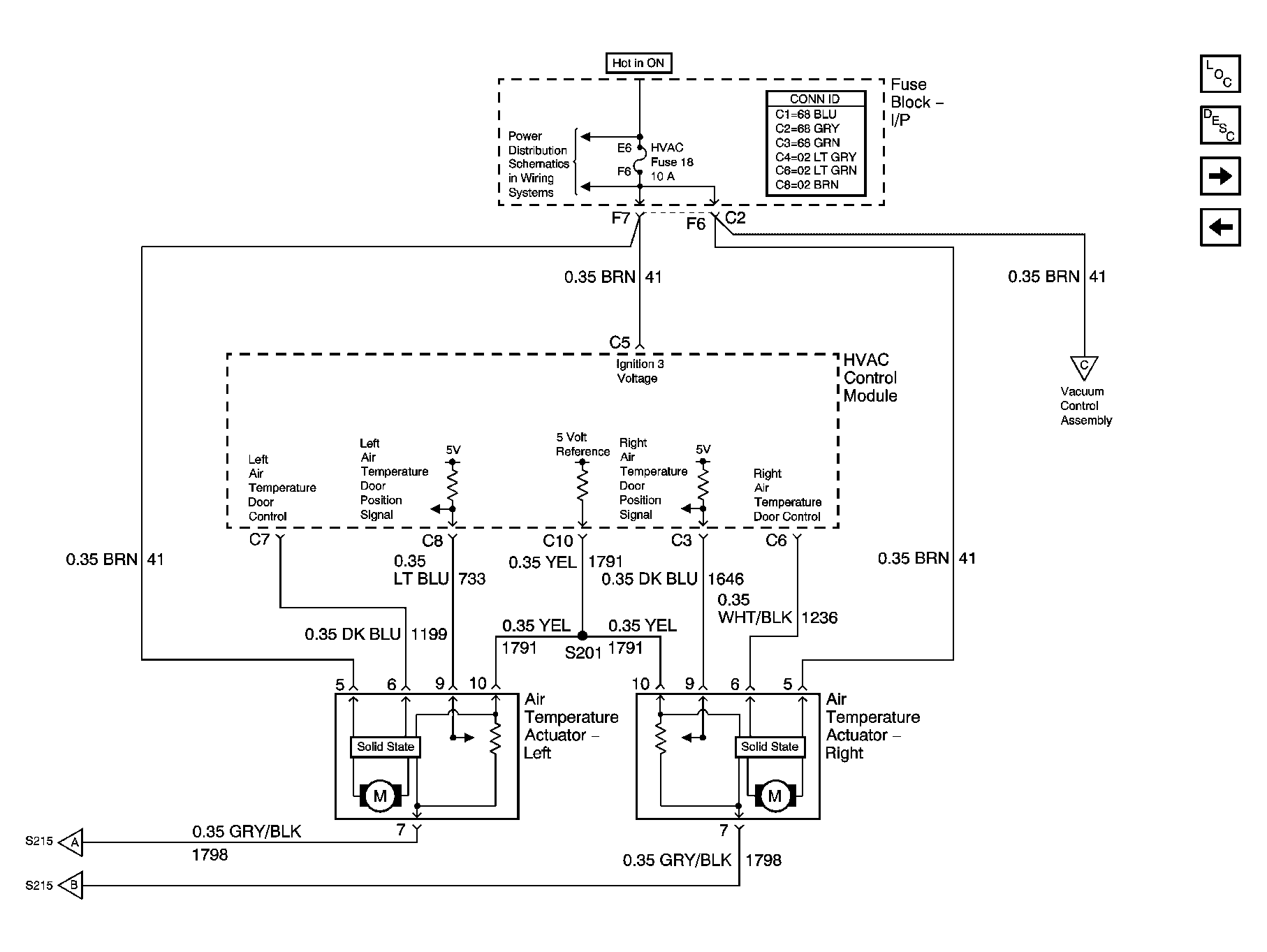

Fig 4: Air Delivery/Temperature Controls Schematics - Actuator Control
Courtesy of GENERAL MOTORS CORP.

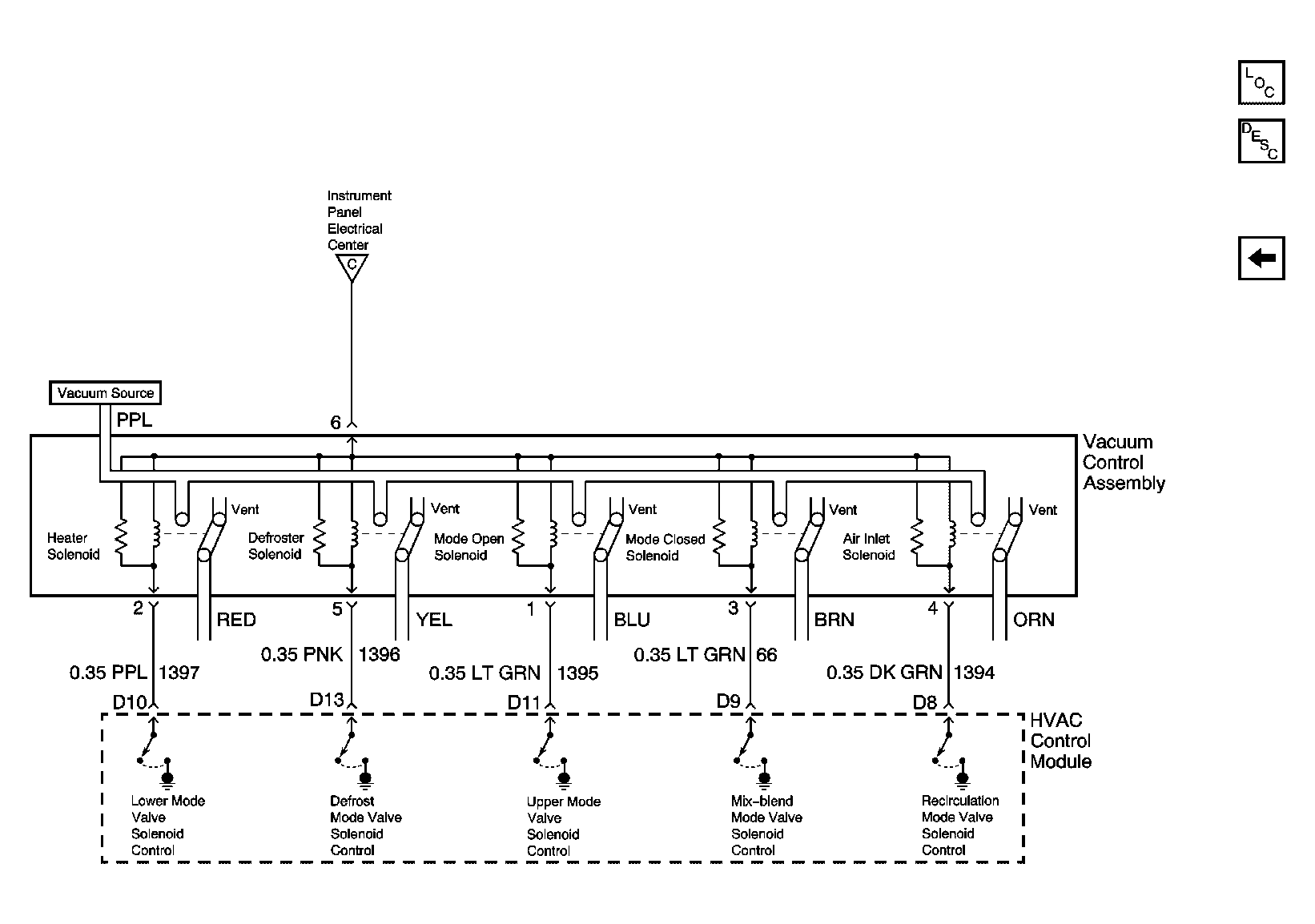

Fig 5: Air Delivery/Temperature Controls Schematics - Solenoid Control
