Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

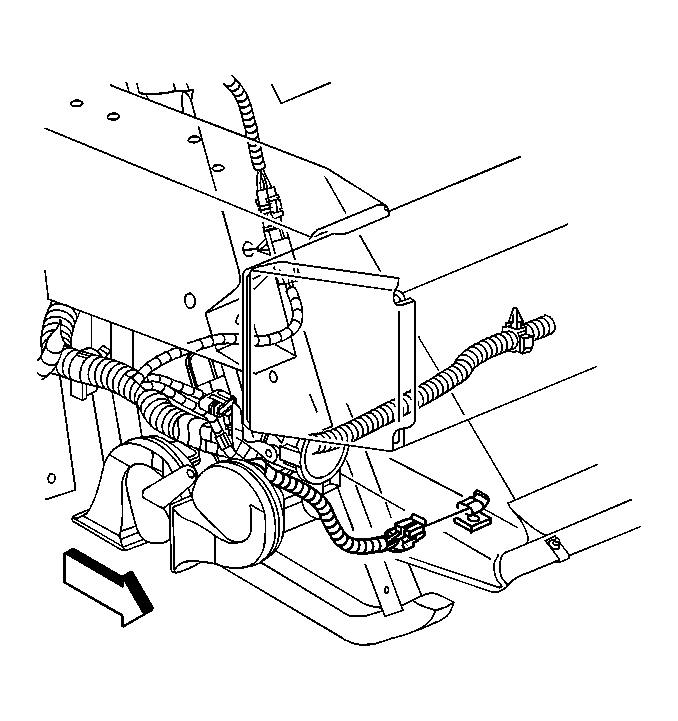

    Fig 1: Ambient Air Temperature Sensor Electrical Connector
    GM296200Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the ambient air temperature sensor electrical connector.
    2. Fig 2: Radiator Support & Ambient Air Temperature Sensor
    GM82160Courtesy of GENERAL MOTORS CORP.
  2. Remove the push-in retainer securing the ambient air temperature sensor to the lower RH side of the radiator support.
  3. Remove the ambient air temperature sensor from the radiator support.
