Theft Deterrent System Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

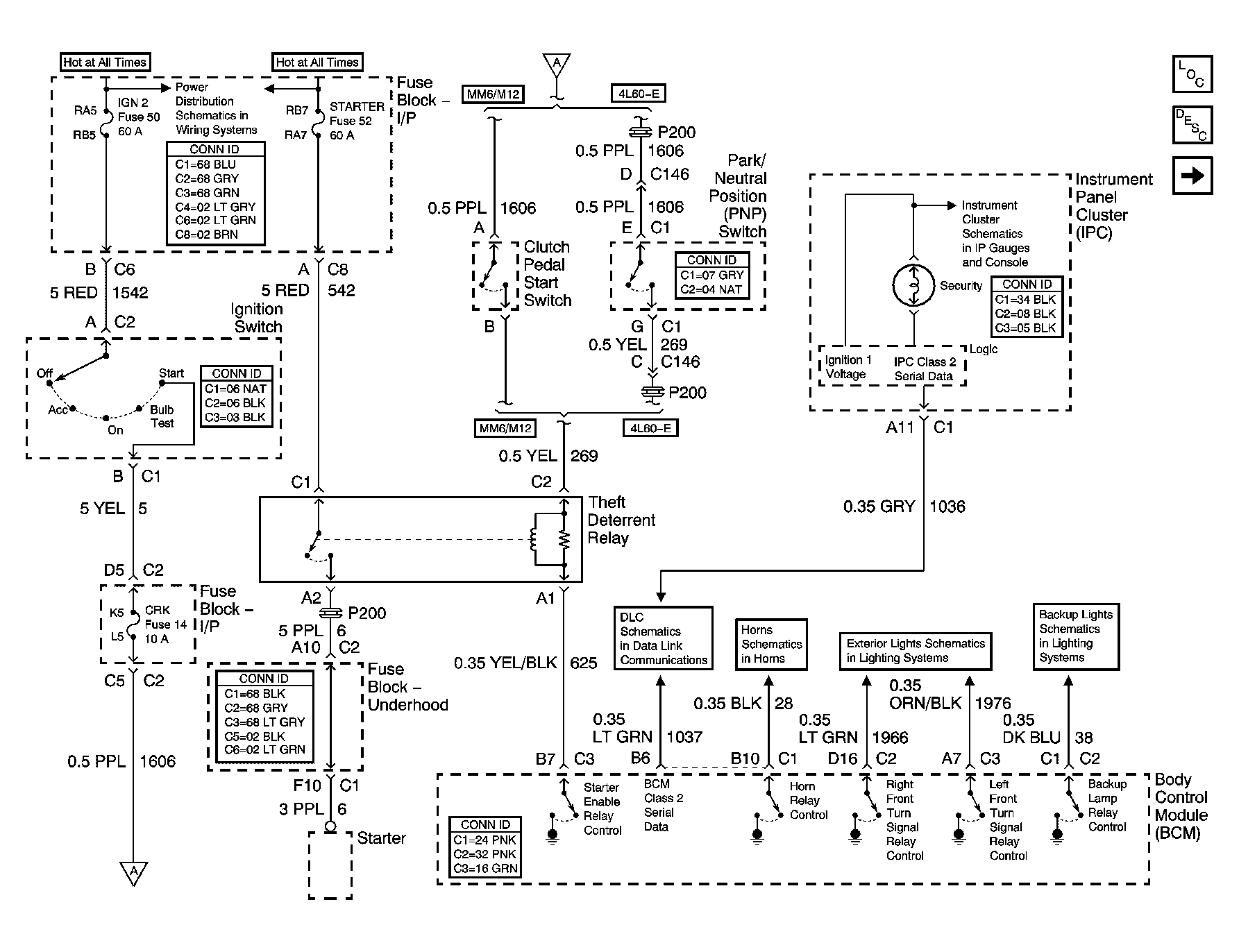

Fig 1: Theft Deterrent Relay, Security Indicator, Lighting and Horn References Schematic

Courtesy of GENERAL MOTORS CORP.

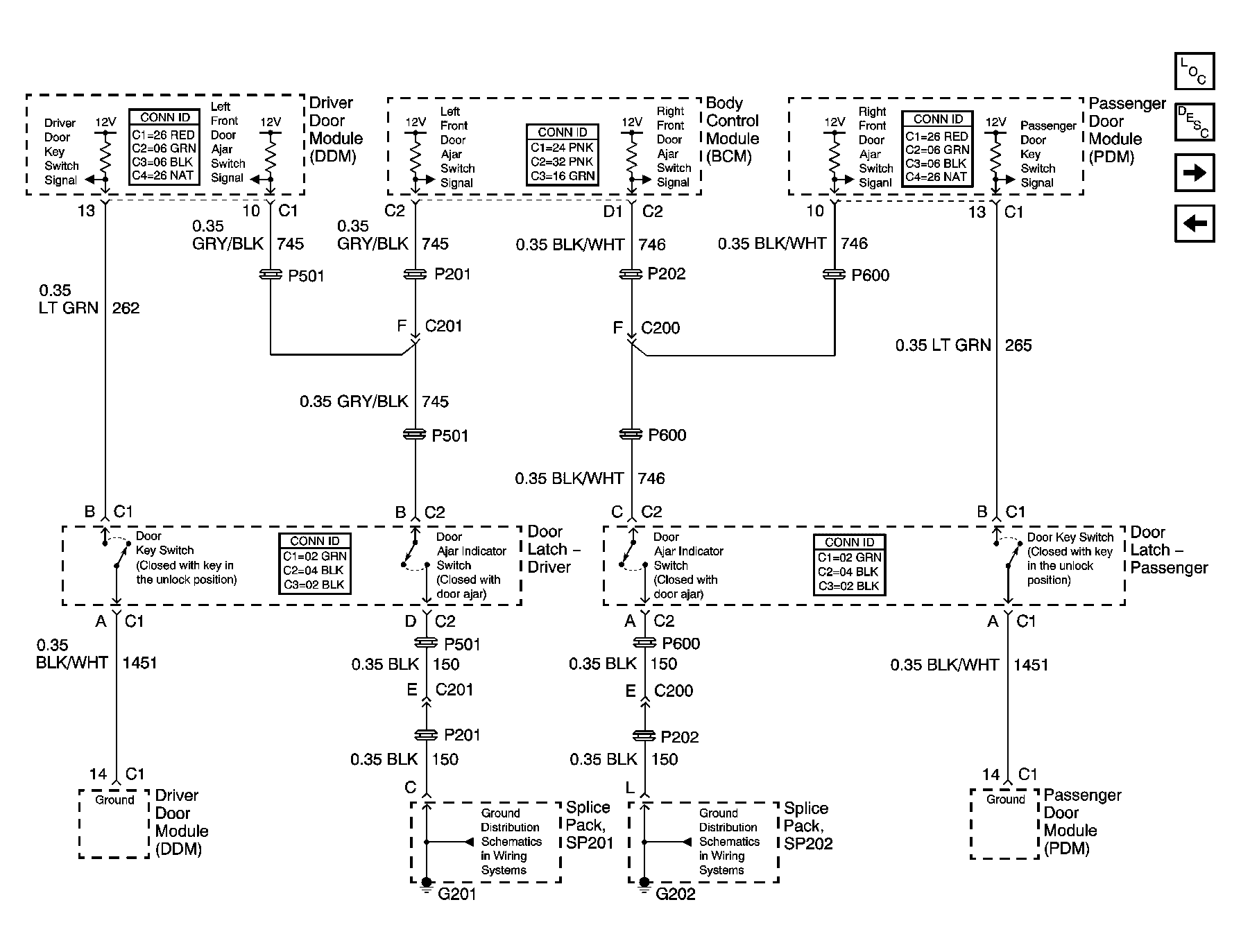

Fig 2: Door Signals Schematic

Courtesy of GENERAL MOTORS CORP.

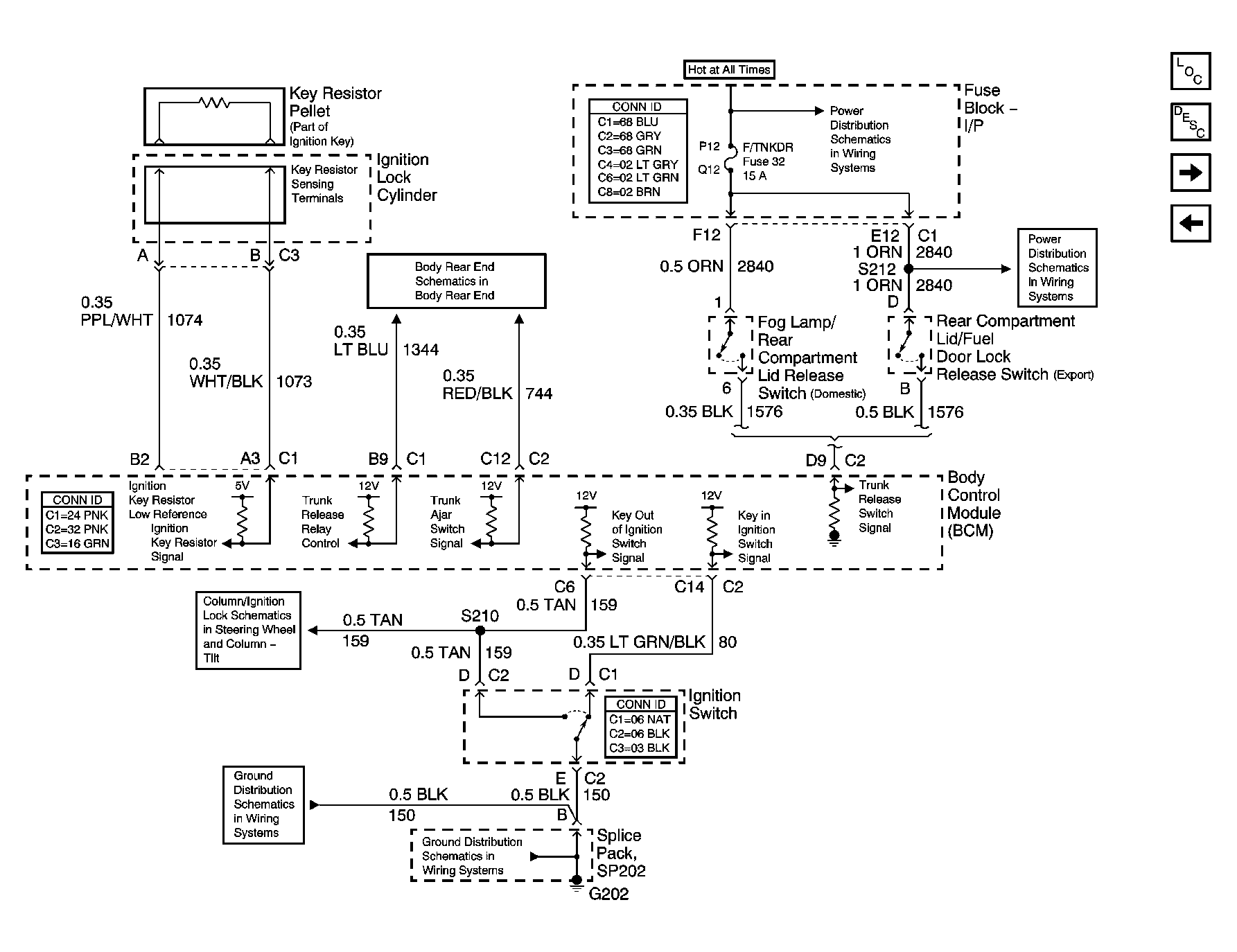

Fig 3: Ignition Key Signals and Trunk Release Switch Signal Schematic

Courtesy of GENERAL MOTORS CORP.

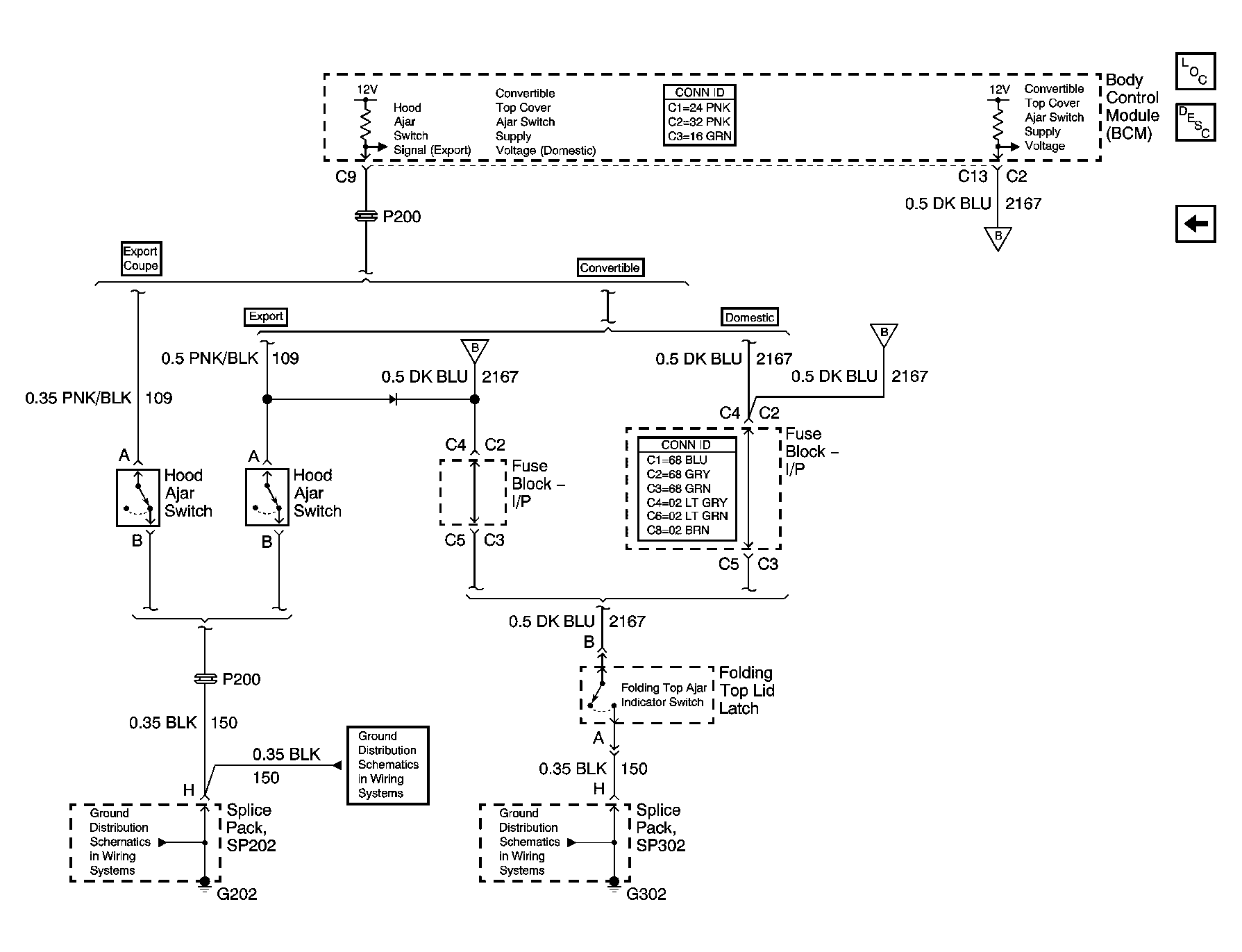

Fig 4: Hood Ajar Switch Signal and Convertible Top Cover Ajar Switch Supply Voltage Schematic
