Section 1524 (Tire Pressure Monitoring System)
>>
Schematic and Routing Diagrams
>>
Tire Pressure Monitoring System Schematics
Tire Pressure Monitoring System Schematics
WARNING:
This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

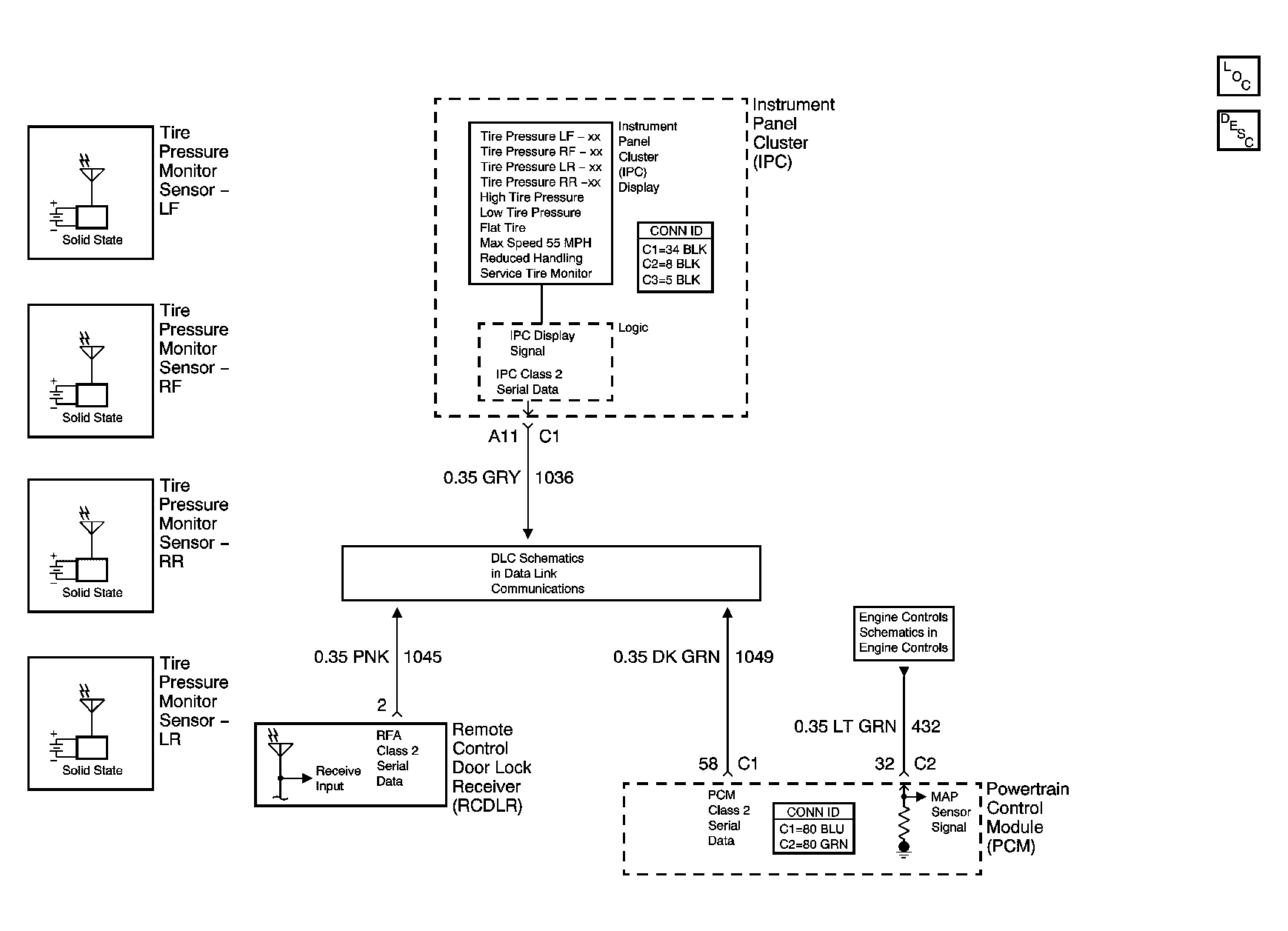

Fig 1: Tire Pressure Monitoring System Schematics
Courtesy of GENERAL MOTORS CORP.
