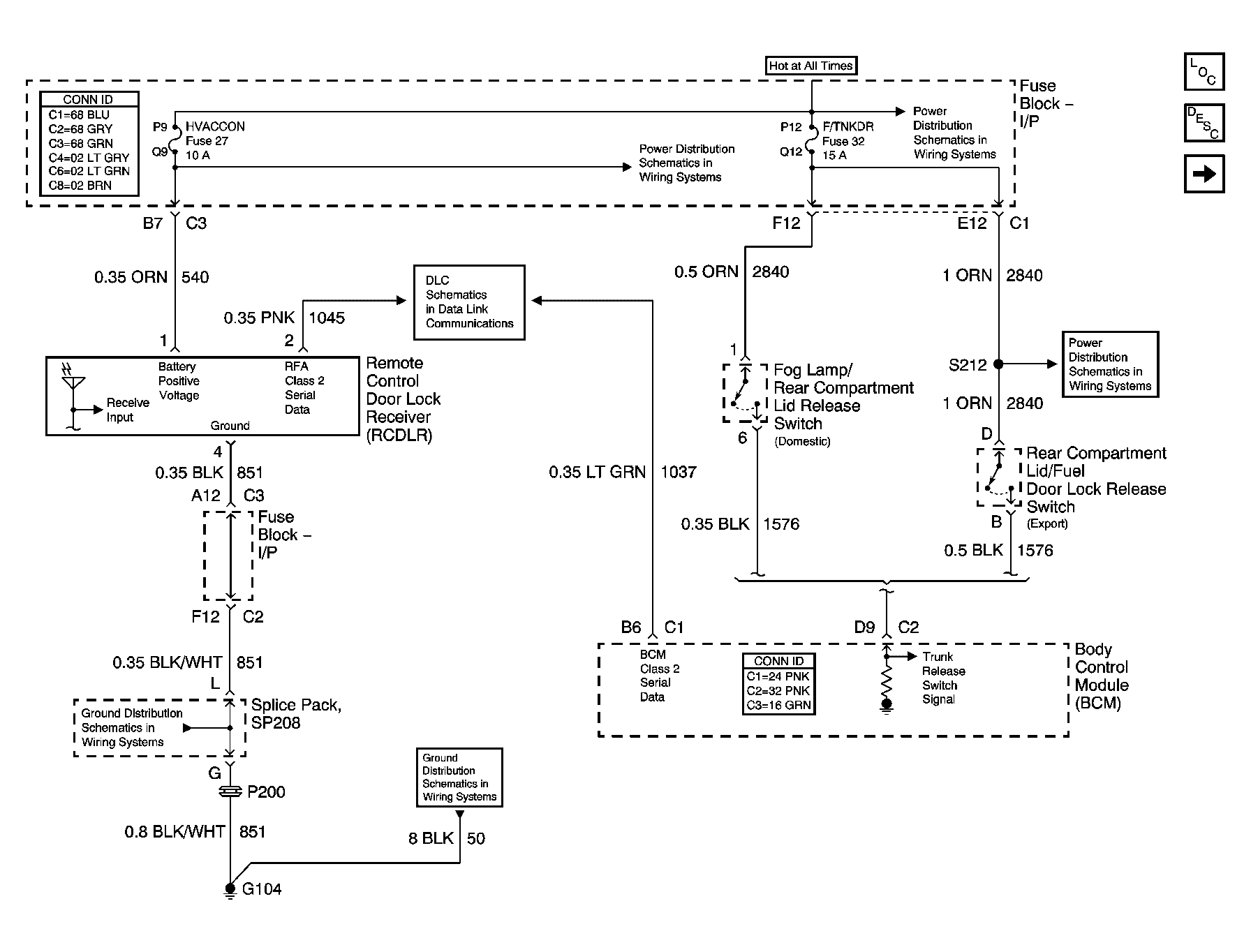

Fig 1: Remote Control Door Lock Receiver And Rear Compartment Lid Release Request Schematics
Courtesy of GENERAL MOTORS CORP.

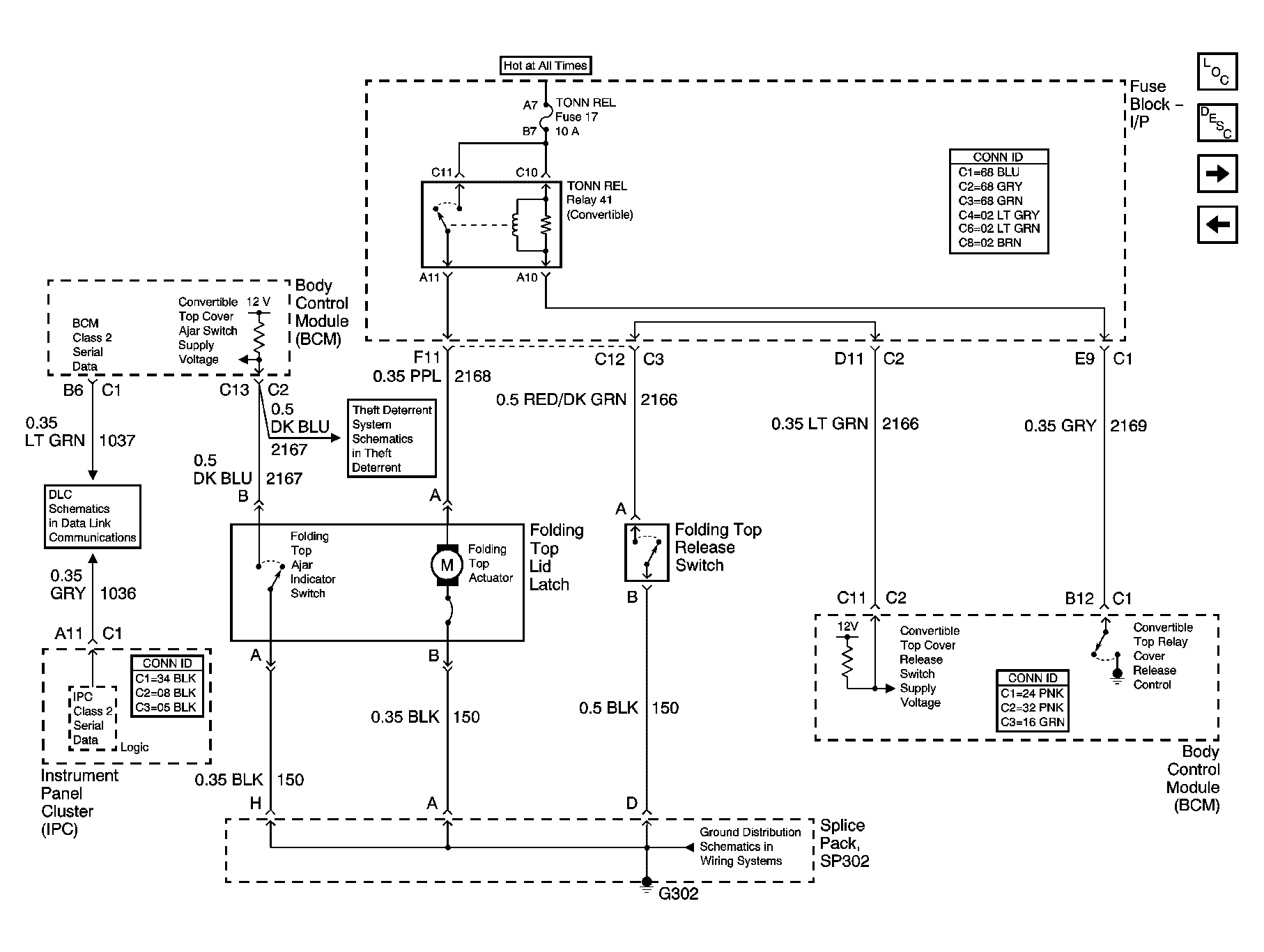

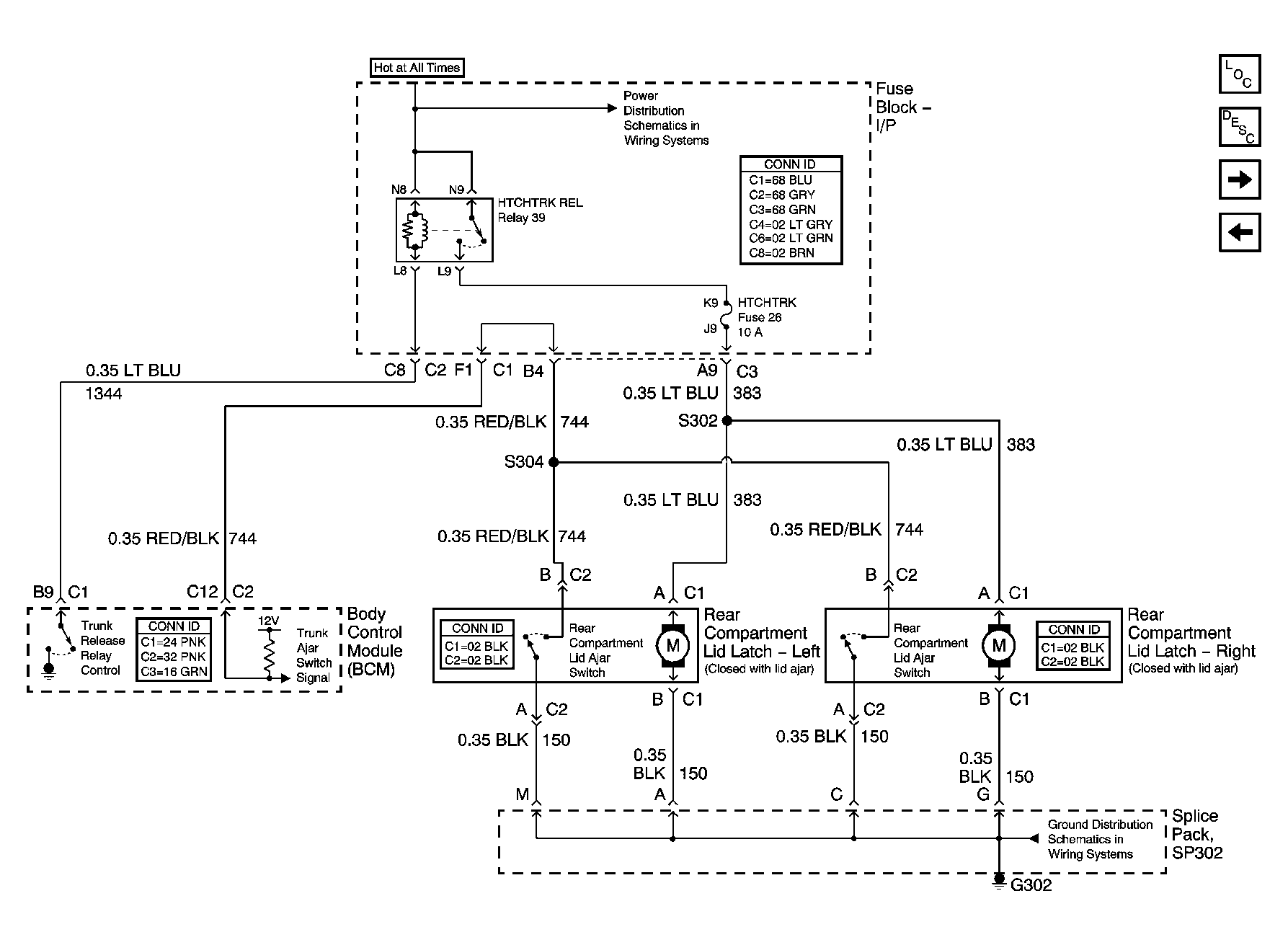

Fig 2: Rear Compartment Lid Release Control And Rear Compartment Lid Ajar Switch Schematics (Hardtop/Convertible)
Courtesy of GENERAL MOTORS CORP.

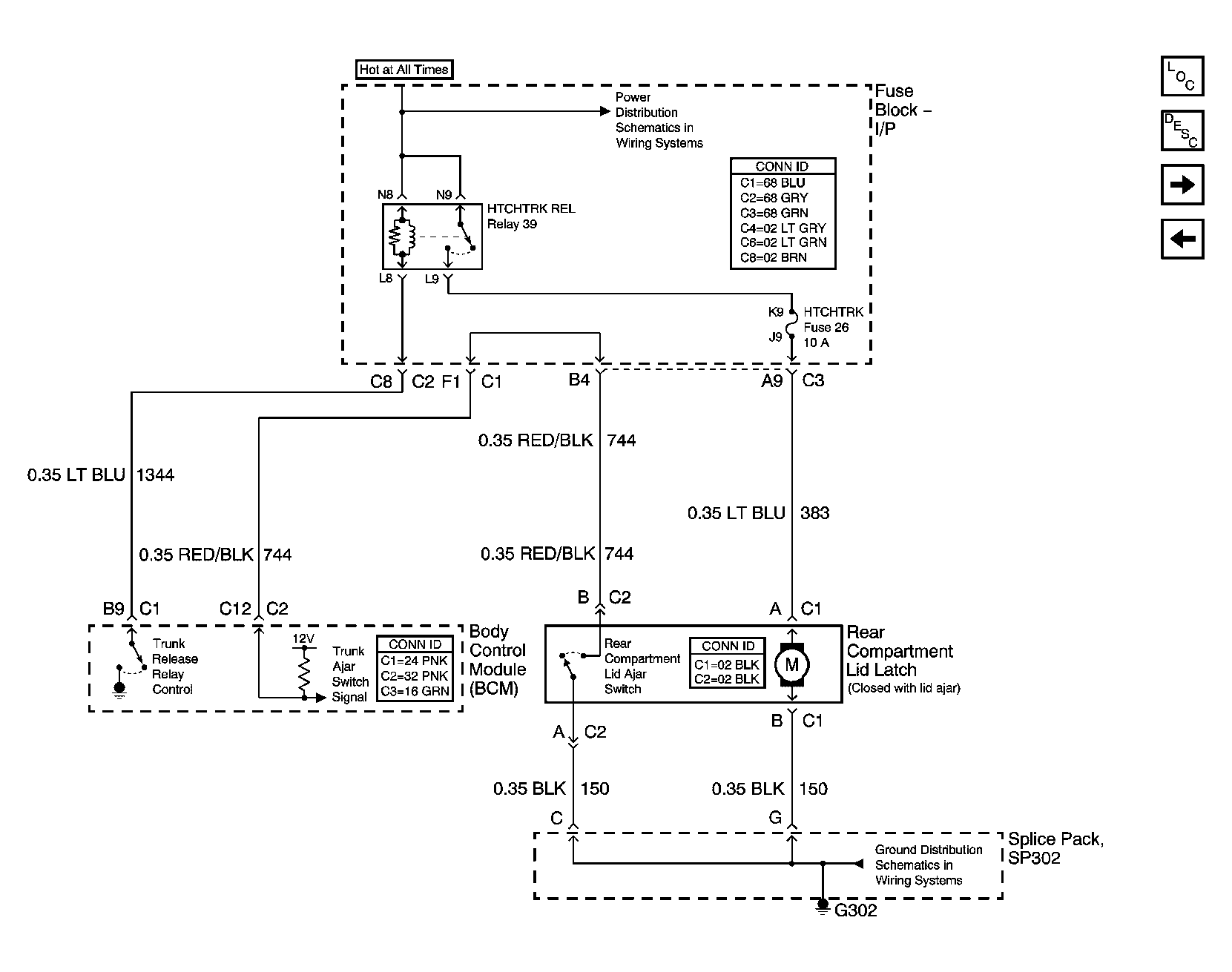

Fig 3: Rear Compartment Lid Release Control And Rear Compartment Lid Ajar Switch Schematics (Coupe)
