Power Antenna Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

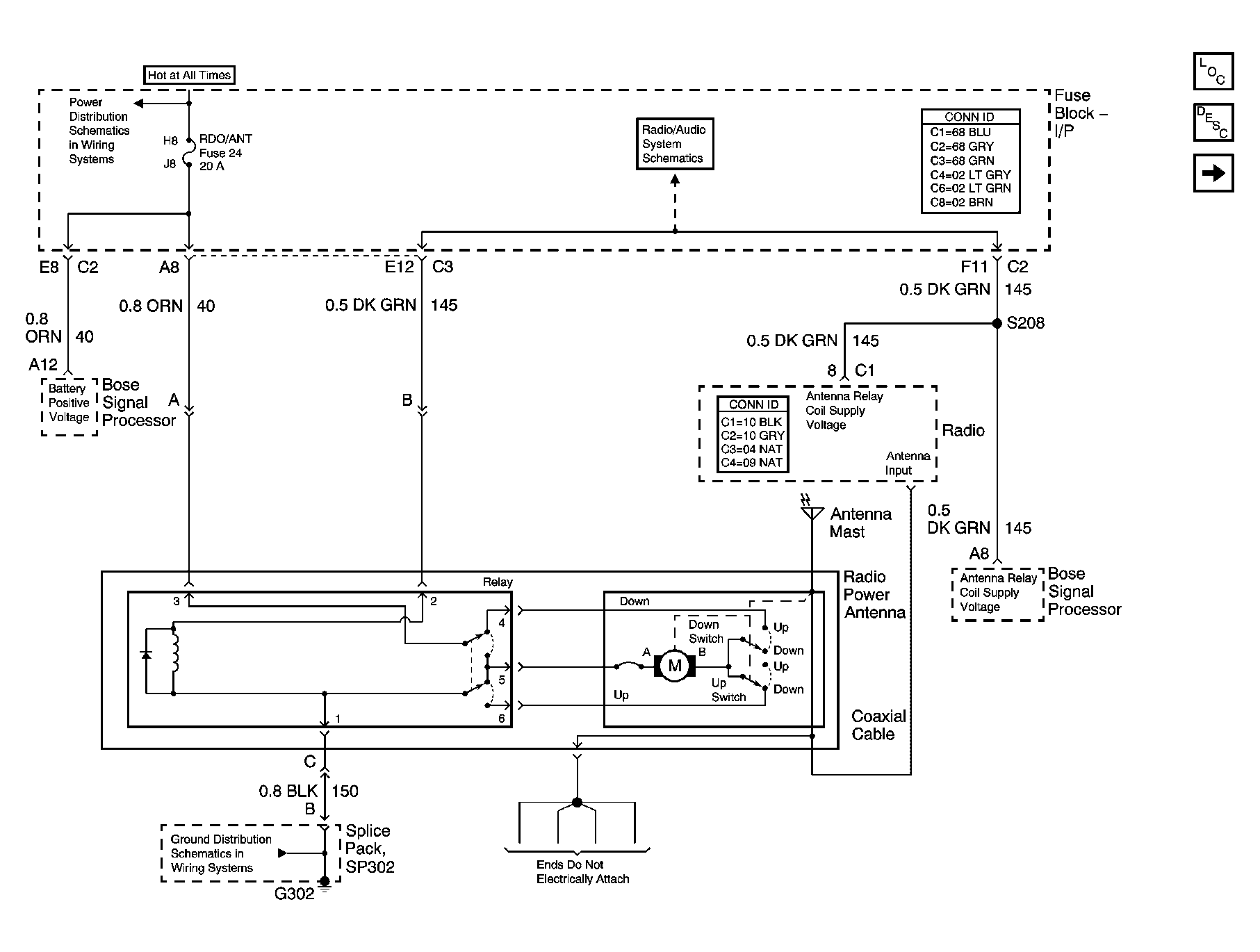

Fig 1: Convertible Schematic

Courtesy of GENERAL MOTORS CORP.

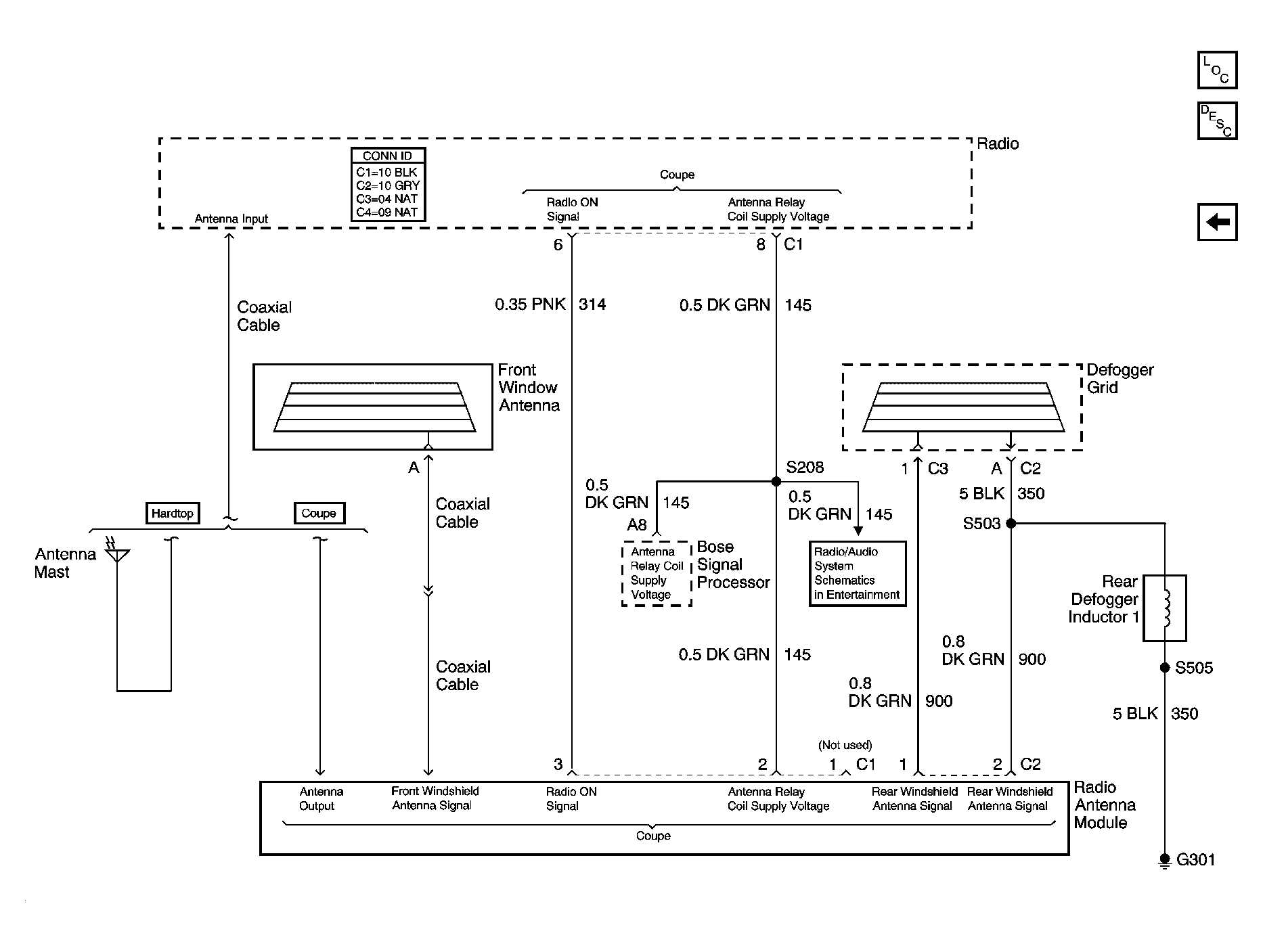

Fig 2: Coupe And Hardtop Schematic

Courtesy of GENERAL MOTORS CORP.
