Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

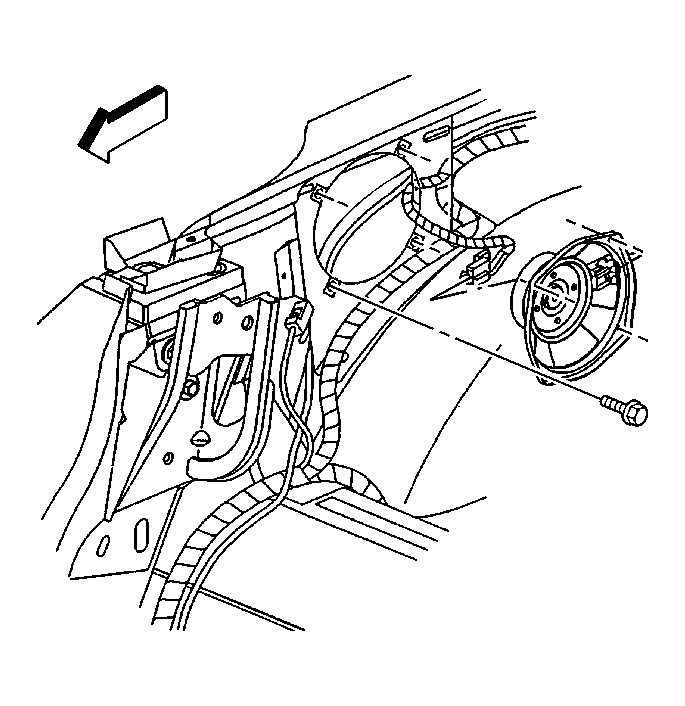

    Fig 1: Electrical/Audio Connector At Rear Speaker & Screws
    GM214776Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical/audio connector to the rear speaker.
  2. Install the rear speaker into position.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the rear speaker retaining screws.

    Tighten:  Tighten the rear speaker retaining screws to 2.5 N.m (22 lb in).

    4. Fig 2: Rear Compartment Right Side Trim Panel
    GM214022Courtesy of GENERAL MOTORS CORP.
  4. Install the rear compartment side trim panel.
  5. Install the push -in fastener to the rear compartment side trim panel.
  6. Lower the folding top stowage compartment lid.
  7. Raise the convertible top.
