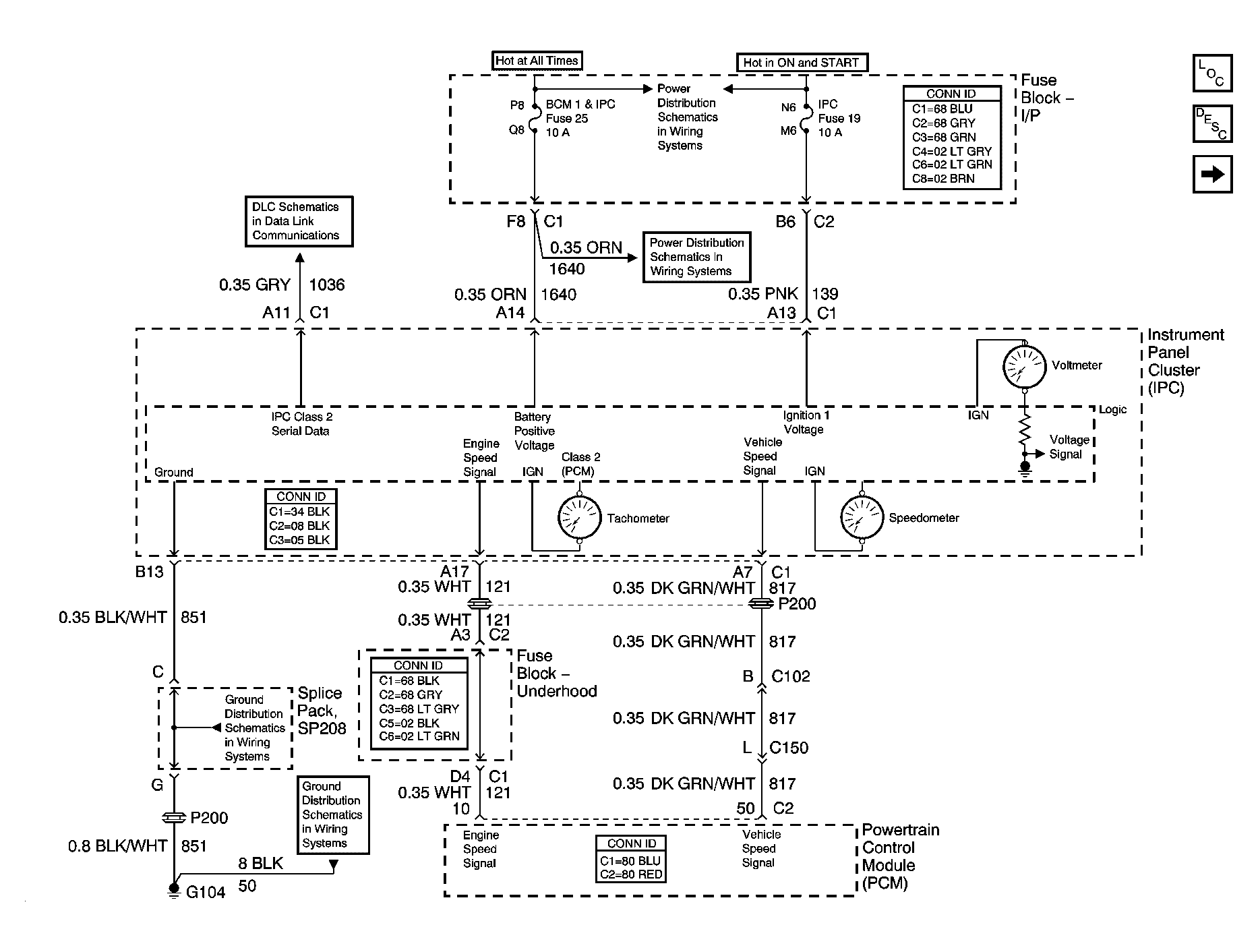

Fig 1: Power, Ground, DLC, Tachometer And Speedometer Schematic
Courtesy of GENERAL MOTORS CORP.

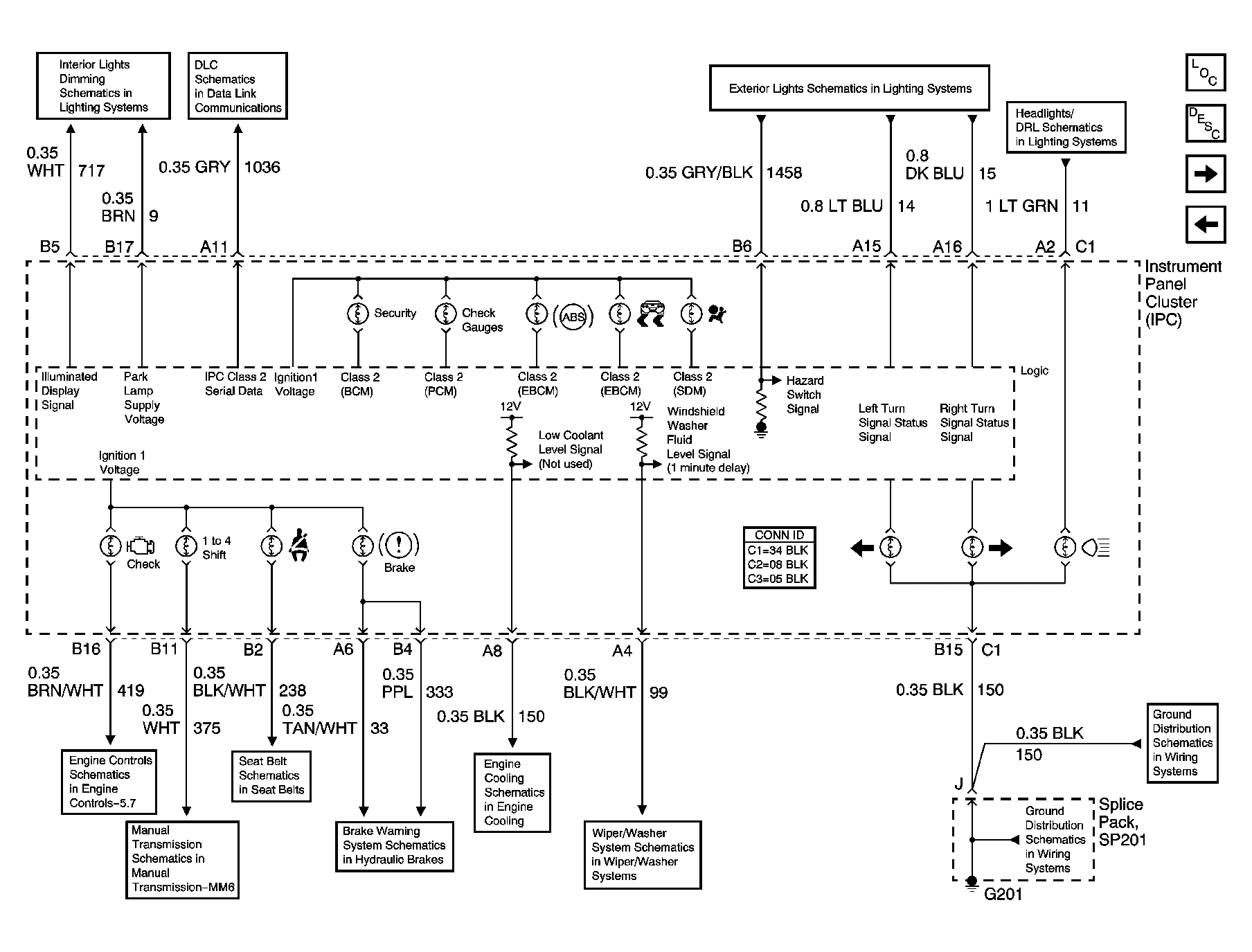

Fig 2: Indicators Schematic
Courtesy of GENERAL MOTORS CORP.

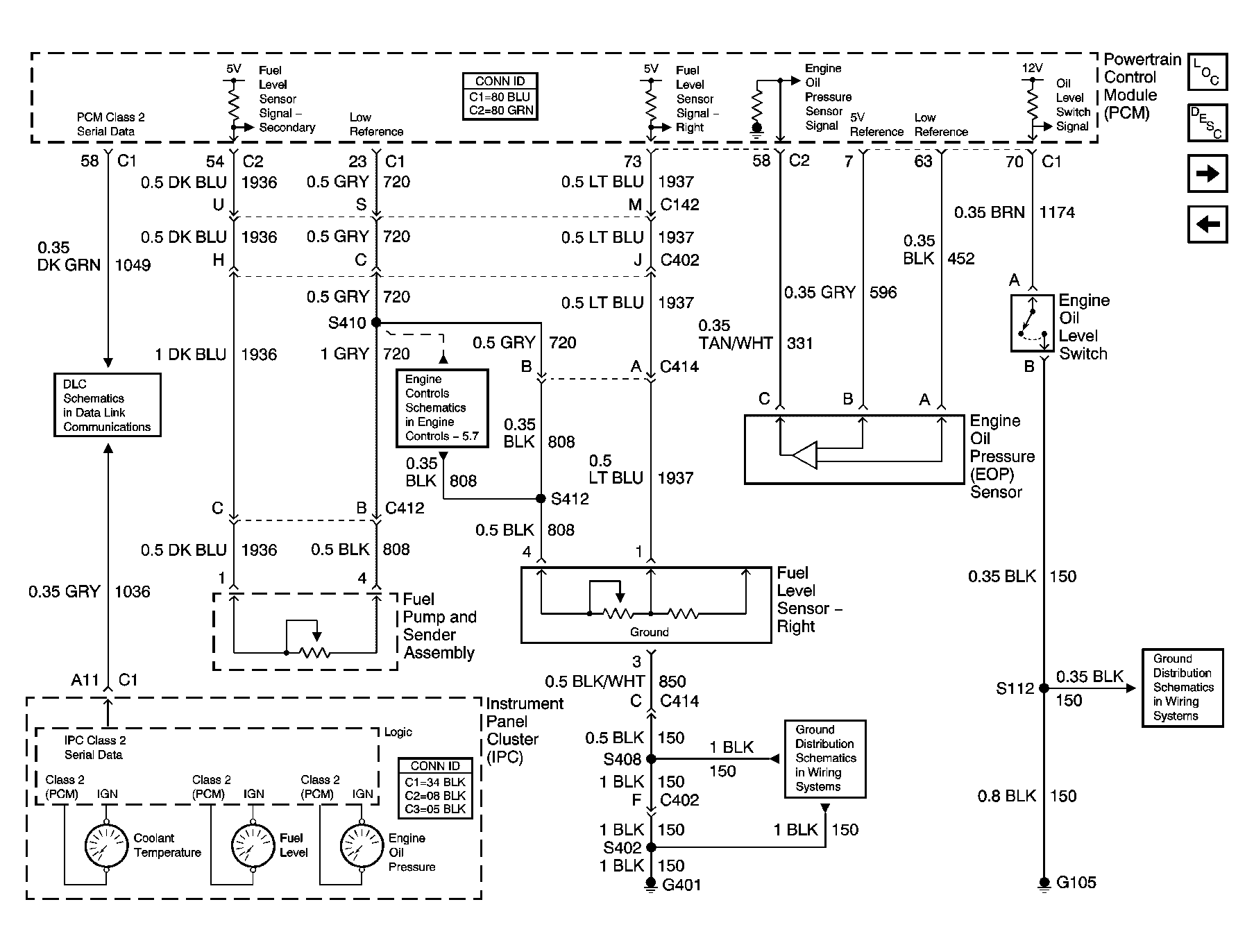

Fig 3: Temperature, Fuel Level And Oil Pressure Gages Schematic
Courtesy of GENERAL MOTORS CORP.

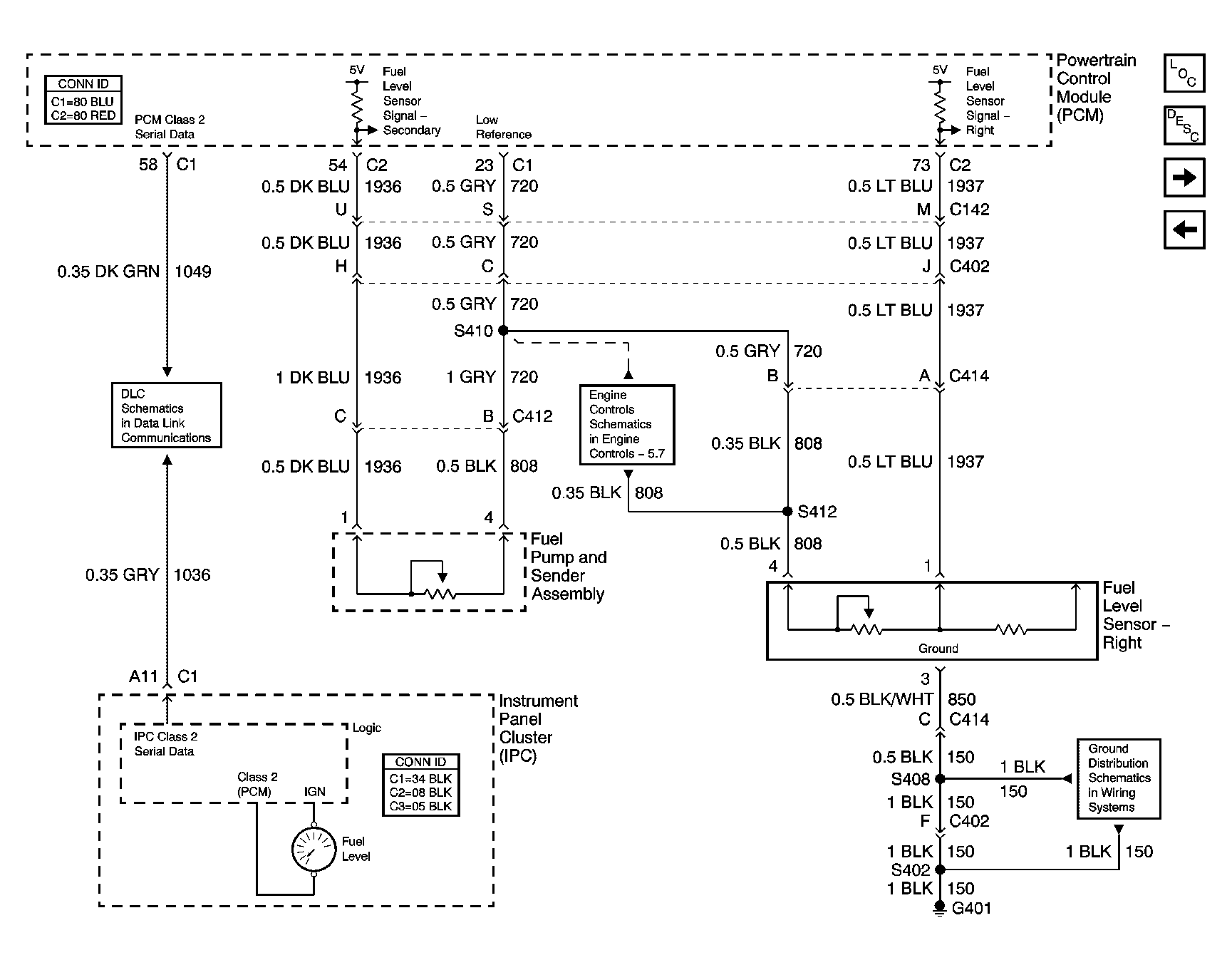

Fig 4: Fuel Level Signals Schematic (W/FFS)
Courtesy of GENERAL MOTORS CORP.

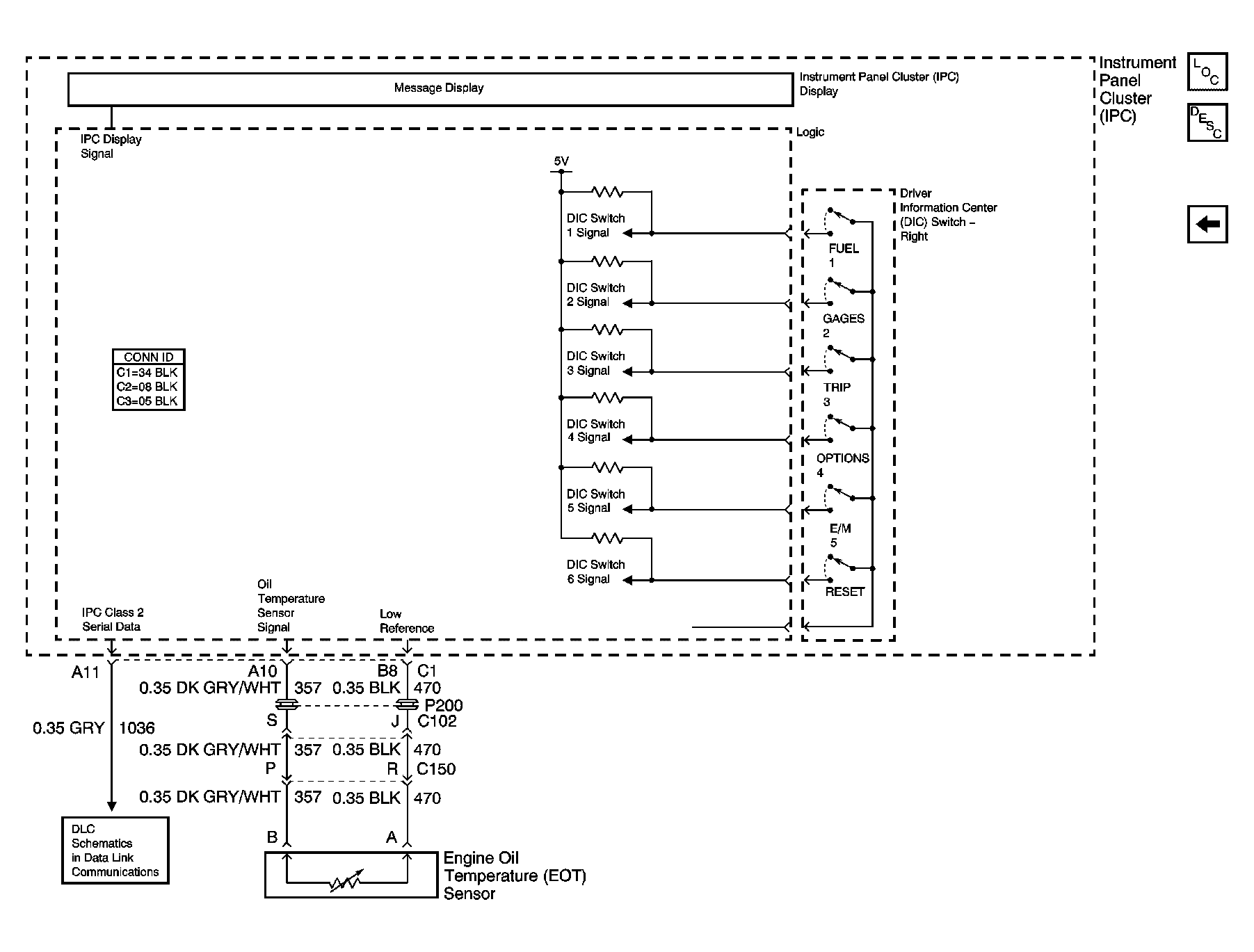

Fig 5: Driver Information Center, Engine Oil Temperature Gage Sensor And Dimmer Switch Schematic
