Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

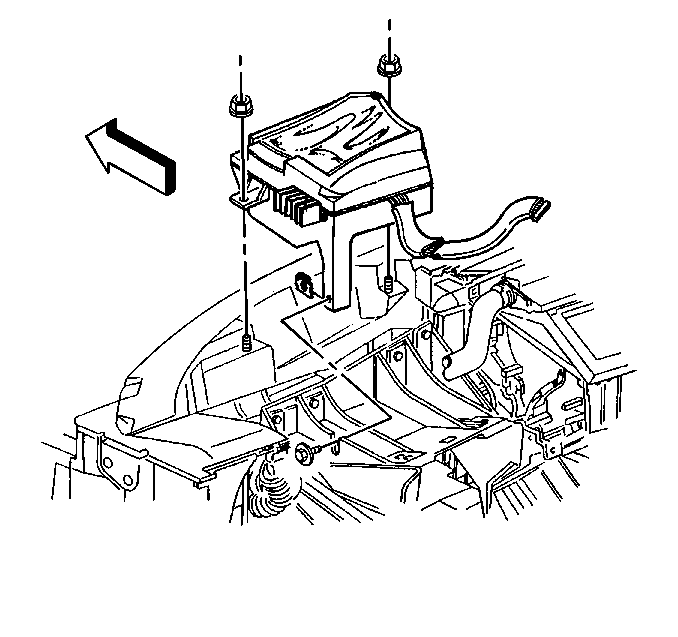

    Fig 1: HUD-To-Steering Column Bracket
    GM378935Courtesy of GENERAL MOTORS CORP.
  1. Transfer the HUD-to-steering column bracket retaining screw and nut, to the replacement HUD, if necessary.
  2. Install the head-up display (HUD) to the vehicle:
    1. Install the HUD onto the dash panel mounting studs.
    2. Slide the HUD retaining screw into the slot on the steering column bracket.
  3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the HUD retaining nuts.

    Tighten:  Tighten the HUD retaining nuts to 5 N.m (44 lb in).

  5. Tighten the HUD-to-steering column bracket retaining screw.

    Tighten:  Tighten the HUD-to-steering column bracket retaining screw to 3 N.m (27 lb in).

  6. Fig 2: IPC At Steering Column Bracket
    GM95728Courtesy of GENERAL MOTORS CORP.
  7. Position the IPC to the steering column bracket.
  8. Check that the IPC retaining tab (1) is positioned correctly to the steering column bracket (2).
  9. Fig 3: IPC To Steering Column Bracket Retaining Screws
    GM95727Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  10. Install the IPC to steering column bracket retaining screws.

    Tighten:  Tighten the IPC to steering column bracket retaining screws to 3 N.m (27 lb in).

  11. Fig 4: HUD Electrical Connector To IPC
    GM378944Courtesy of GENERAL MOTORS CORP.
  12. Connect the HUD electrical connector to the IPC.
  13. Carefully tuck the HUD electrical harness (1) down between the IPC and the HUD as shown.
  14. Install the I/P upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper .
  15. Connect the negative battery cable.

    Tighten:  Tighten the negative battery cable bolt to 15 N.m (11 lb ft).

  16. Program the transmitters. Refer to Transmitter Programming in Keyless Entry.
