Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
    2. CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  2. Disconnect the negative battery cable.
  3. Remove the console. Refer to Console Replacement .
  4. Remove the I/P accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory .
  5. Remove the driver knee bolster trim panel. Refer to Trim Panel Replacement - Knee Bolster .
  6. Remove the ignition switch housing bracket and reposition the ignition switch. Refer to Ignition Switch Housing Bracket Replacement .
  7. Release the ignition switch and hazard warning switch wiring harness retainers from the driver knee bolster bracket.
    8. IMPORTANT: The following step must be performed to assure proper trim fit during installation.
  8. Mark the location of the driver knee bolster bracket. Refer to Instrument Panel (I/P) Disassembly Precautions .
    9. Fig 1: Driver Knee Bolster Bracket To Steering Column Bracket
    GM95668Courtesy of GENERAL MOTORS CORP.
  9. Remove the retaining screws from the driver knee bolster bracket.
  10. Remove the driver knee bolster bracket.
    11. Fig 2: Bose® Module Electrical/Audio Connector
    GM65118Courtesy of GENERAL MOTORS CORP.
  11. Remove the left lower closeout panel. Refer to Closeout/Insulator Panel Replacement - Left .
  12. Tilt the steering wheel to the lowest position.
  13. Remove the upper and lower nuts retaining the steering column to the steering column bracket. Carefully rest the steering column on the I/P lower support beam. Refer to Steering Column Replacement in Steering Wheel and Column.
  14. Remove the left windshield side garnish molding. Refer to Windshield Side Garnish Molding Replacement in Interior Trim.
  15. Remove the I/P upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper .
  16. Remove the outlet duct from the left side window defogger.
  17. Remove the instrument panel cluster. Refer to Instrument Panel Cluster (IPC) Replacement .
  18. Disconnect the Bose® module electrical/audio connector, if equipped.
    19. Fig 3: Bose® Module To Steering Column Bracket
    GM65115Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The Bose® module is only held in place by retaining bolts. Support the module upon removal.
  19. If the vehicle is equipped with a Bose® player, remove the bolts mounting the Bose® module to the steering column bracket
  20. Remove the Bose® module.
    21. IMPORTANT: The following step must be performed to assure proper trim fit during installation.
  21. Mark the location of the driver knee bolster outer bracket. Refer to Instrument Panel (I/P) Disassembly Precautions .

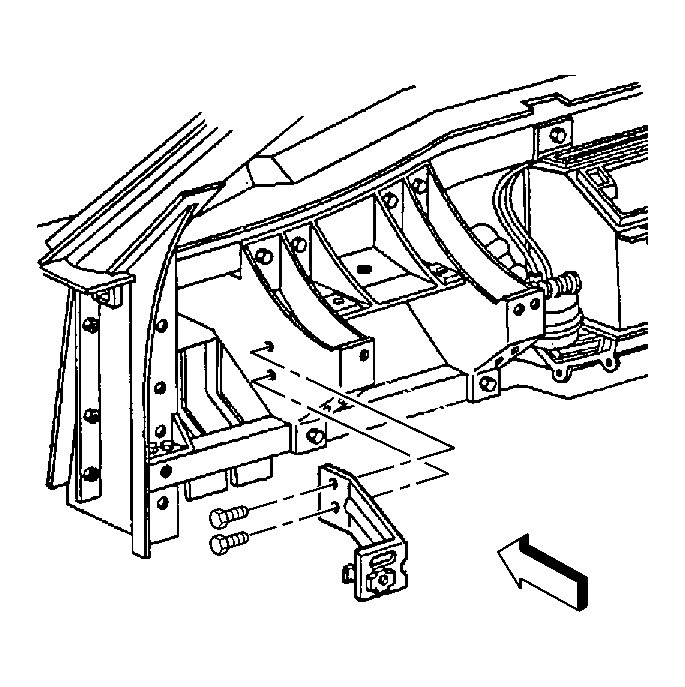

    22. Fig 4: Driver Knee Bolster Outer Bracket To Steering Column Bracket
    GM95667Courtesy of GENERAL MOTORS CORP.
  22. Remove the retaining screws from the driver knee bolster outer bracket.
  23. Remove the outer bracket.
    24. Fig 5: Brake Booster Mounting Nuts At Accelerator Pedal
    GM174198Courtesy of GENERAL MOTORS CORP.
  24. Remove the accelerator pedal assembly with the accelerator pedal position sensor. Refer to Accelerator Pedal Position (APP) Sensor Replacement in Engine Controls - 5.7L.
  25. Disconnect the brake master cylinder push rod from the brake pedal.
  26. Remove the brake booster mounting nuts.
    27. Fig 6: Cruise Control Release Switch & Bracket
    GM71494Courtesy of GENERAL MOTORS CORP.
  27. Remove the mounting bolts from the cruise control release switch bracket.
  28. Reposition the cruise control release switch and the bracket.
    29. Fig 7: View Of Master Cylinder Push Rod To Clutch Pedal
    GM71474Courtesy of GENERAL MOTORS CORP.
  29. Disconnect the master cylinder push rod from the clutch pedal.
    30. Fig 8: Clutch Pedal Bracket & Steering Column Bracket
    GM71482Courtesy of GENERAL MOTORS CORP.
  30. Remove the nuts which secure the clutch pedal bracket to the steering column bracket.
  31. Remove the pedal bracket stud plate.

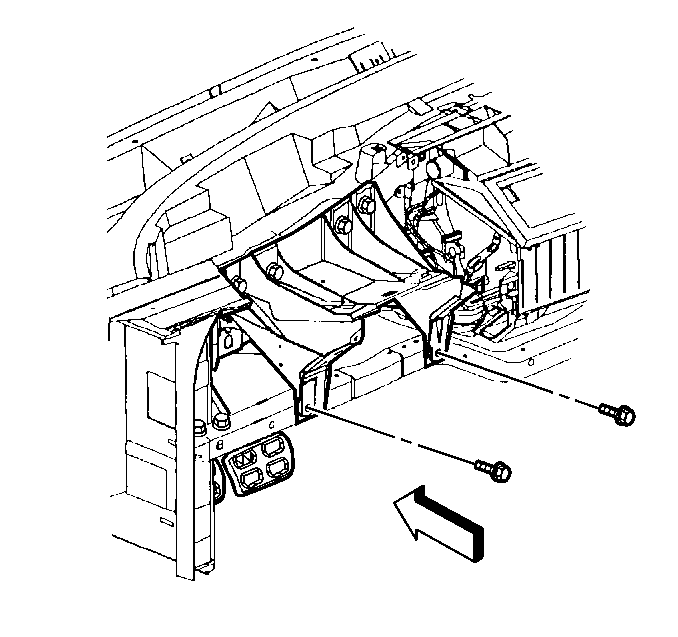

    32. Fig 9: Steering Column Bracket To I/P Lower Support Beam
    GM95665Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The following step assures proper trim fit during installation.
  32. Mark the location of the steering column bracket. Refer to Instrument Panel (I/P) Disassembly Precautions .
  33. Remove the bolts which secure the steering column bracket to the I/P lower support beam.
    34. Fig 10: Steering Column Bracket To I/P Upper Support Beam
    GM95663Courtesy of GENERAL MOTORS CORP.
  34. Remove the bolts which secure the steering column bracket to the I/P upper support beam.
  35. Remove the steering column bracket.
