Column/Ignition Lock Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

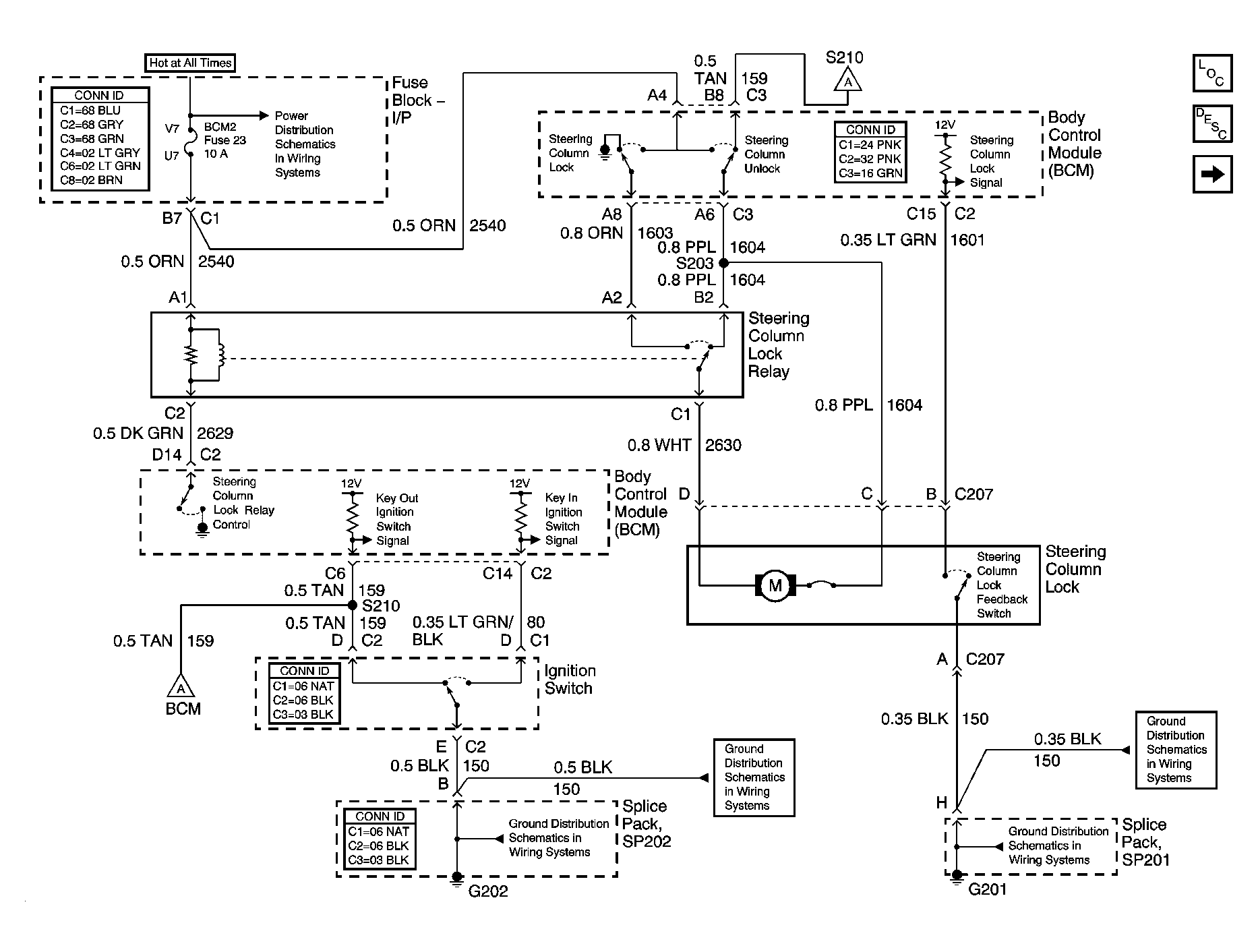

Fig 1: Domestic Manual Transmission And All Export Schematics
GM687588Courtesy of GENERAL MOTORS CORP.
Fig 2: Domestic Automatic Transmission Schematics
GM728676Courtesy of GENERAL MOTORS CORP.
