Steering Column Disassembled View (Telescoping)

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

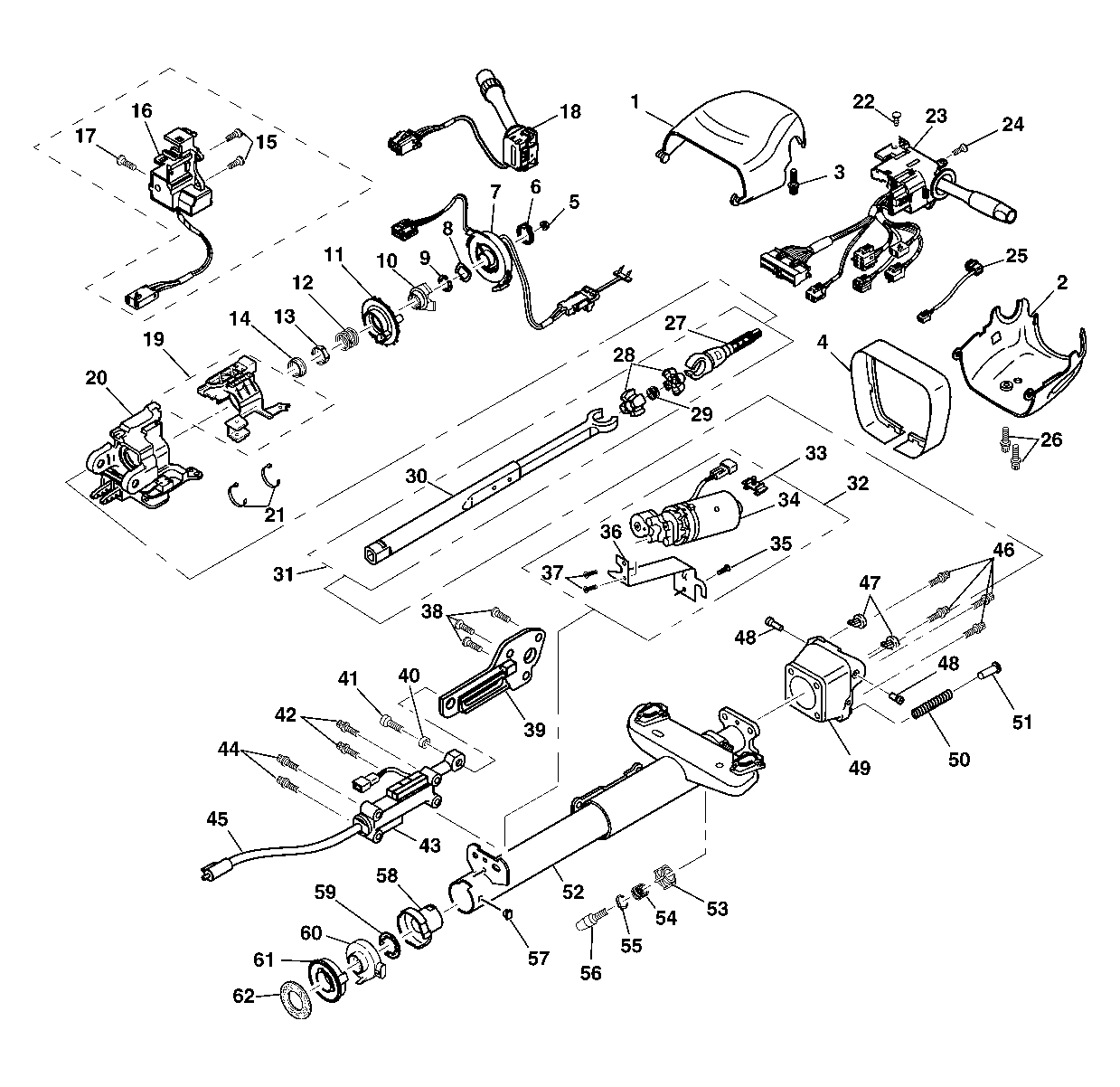

Fig 1: Y-Car Telescoping Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Trim Cover
2	Lower Trim Cover
3	TORX® Head Screw
4	Steering Column Close Out Trim Cover
5	Flanged Prevailing Torque Nut
6	Retaining Ring
7	SIR Coil
8	Wave Washer
9	Bearing Retainer
10	Cam Orientation Plate
11	Turn Signal Cancel Cam Assembly
12	Upper Bearing Spring
13	Upper Bearing Inner Race Seat
14	Inner Race
15	Pan Head Tapping Screws
16	Steering Wheel Theft Deterrent Lock
17	Pan Head Tapping Screw
18	Windshield Wiper and Washer Switch Assembly
19	Wiper/Washer Switch Bracket
20	Steering Column Tilt Head Housing
21	Wire Harness Straps
22	Pan Head Tapping Screw
23	Turn Signal and Multifunction Switch Assembly
24	Pan Head Tapping Screw
25	Telescoping Switch Assembly
26	Pan Head Tapping Screws
27	Race and Upper Shaft Assembly
28	Centering Sphere
29	Joint Preload Spring
30	Lower Steering Shaft
31	Steering Shaft Assembly
32	Telescope Motor and Bracket Assembly
33	Connector Clip
34	Telescope Drive Motor Assembly
35	Pan Head Tapping Screw
36	Telescope Drive Bracket
37	Pan Head Tapping Screws
38	Flat Head 6-Lobed Soc Tap Screws
39	Telescope Adapter Assembly
40	Telescope Drive Ball
41	Telescope Drive Bolt
42	TORX®Head Screws
43	Telescope Motor Assembly
44	TORX® Head Screws
45	Cable Assembly
46	Support Screws
47	Tilt Bumpers
48	Pivot Pins
49	Steering Column Support Assembly
50	Tilt Spring
51	Spring Guide
52	Jacket Assembly
53	Housing Support Guide
54	Compression Spring
55	Retaining Ring
56	Shoulder Bolt
57	Jacket Hole Plug
