Steering Column Disassembled View (Manual)
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

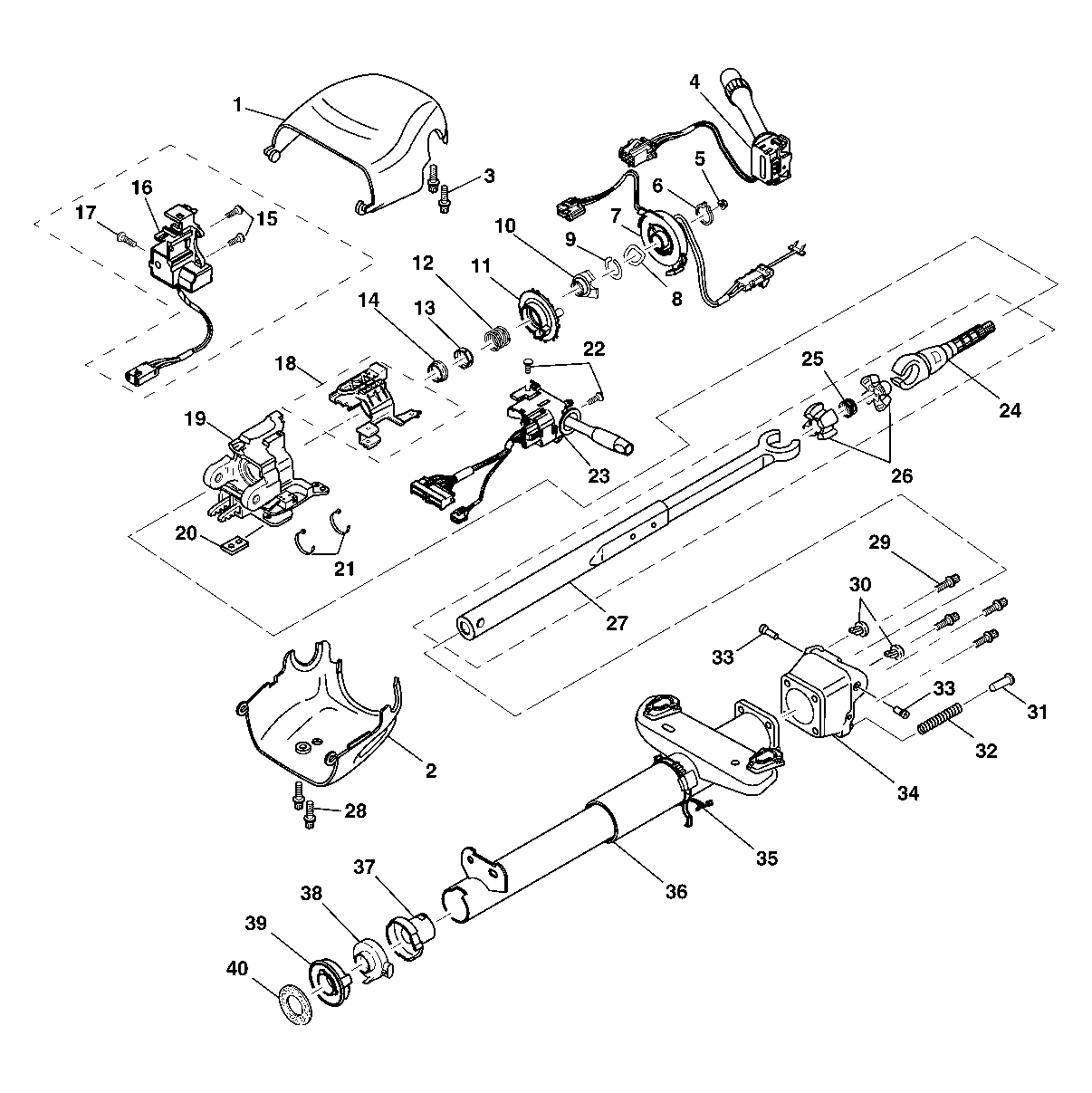

| Callout | Component Name |
|---|---|
| 1 | Upper Trim Cover |
| 2 | Lower Trim Cover |
| 3 | TORX® Head Screws |
| 4 | Windshield Wiper and Washer Switch Assembly |
| 5 | Flanged Prevailing Torque Nut |
| 6 | Retaining Ring |
| 7 | SIR Coil |
| 8 | Wave Washer |
| 9 | Bearing Retainer |
| 10 | Cam Orientation Plate |
| 11 | Turn Signal Cancel Cam Assembly |
| 12 | Upper Bearing Spring |
| 13 | Upper Bearing Inner Race Seat |
| 14 | Inner Race |
| 15 | Pan Head Tapping Screws |
| 16 | Steering Wheel Theft Deterrent Lock |
| 17 | Pan Head Tapping Screw |
| 18 | Wiper/Washer Switch Bracket |
| 19 | Steering Column Tilt Head Housing |
| 20 | Wire Harness Spacer |
| 21 | Wire Harness Straps |
| 22 | Pan Head Tapping Screws |
| 23 | Turn Signal and Multifunction Switch Assembly |
| 24 | Race and Upper Shaft Assembly |
| 25 | Joint Preload Spring |
| 26 | Centering Sphere |
| 27 | Lower Steering Shaft Assembly |
| 28 | TORX® Head Screws |
| 29 | TORX® Head Screws |
| 30 | Tilt Bumpers |
| 31 | Spring Guide |
| 32 | Tilt Spring |
| 33 | Pivot Pins |
| 34 | Steering Column Support Assembly |
| 35 | Wire Harness Strap |
| 36 | Steering Column Jacket Assembly |
| 37 | Adapter and Bearing Assembly |
| 38 | Steering Wheel Position Sensor Assembly |
| 39 | Sensor Retainer |
