Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: EVAP Canister Purge Valve & Purge Bracket
    GM419407Courtesy of GENERAL MOTORS CORP.
  1. Install the EVAP canister purge valve to the purge bracket.
  2. Connect the harness connector to the EVAP canister purge valve.

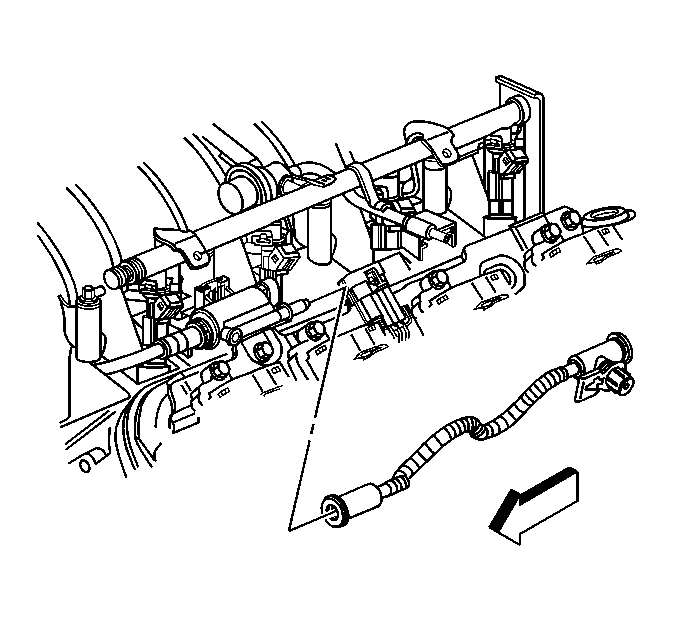

    3. Fig 2: EVAP Canister Purge Valve
    GM406071Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine purge pipe to the chassis purge pipe.
    4. Fig 3: Intake Manifold EVAP Pipe
    GM419425Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine vacuum pipe to the EVAP canister purge valve.
    5. Fig 4: Left Fuel Rail Cover
    GM43560Courtesy of GENERAL MOTORS CORP.
  5. Install the left fuel rail cover.
