DTC P1810: Notes

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

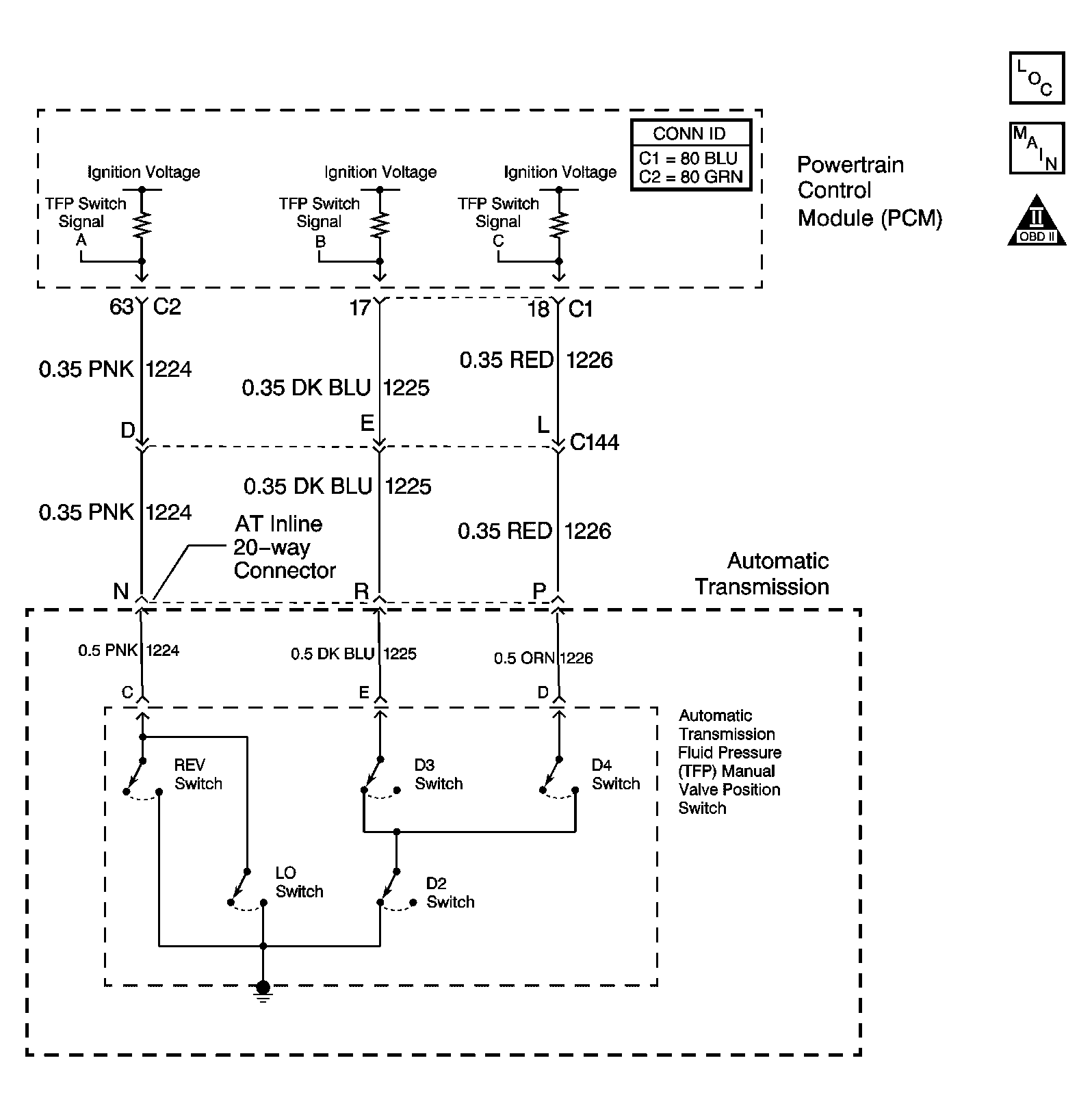

Fig 1: DTC P1810 Schematics
GM1215655Courtesy of GENERAL MOTORS CORP.
