Filling Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

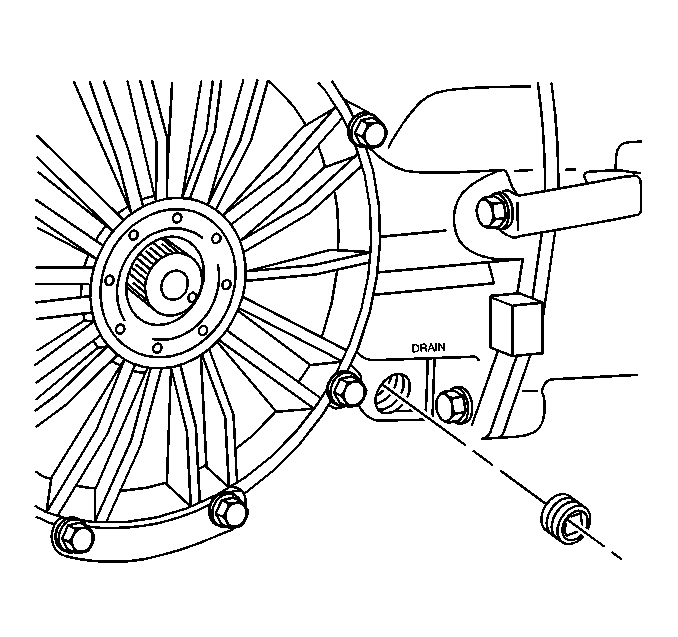

    Fig 1: Transmission Fluid Drain Plug
    GM71532Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the transmission fluid drain plug.

    Tighten:  Tighten the transmission fluid drain plug to 27 N.m (20 lb ft).

    2. Fig 2: Transmission Fluid Fill Plug Hole
    GM71531Courtesy of GENERAL MOTORS CORP.
  2. Clean away all dirt and debris from the transmission fluid fill plug area.
  3. Remove the fill plug.
  4. Fill the transmission with DEXRON®-III transmission fluid, until even with the bottom of the fill plug hole.
  5. Install the transmission fluid fill plug.

    Tighten:  Tighten the transmission fluid fill plug to 27 N.m (20 lb ft).

  6. Lower the vehicle.
