DTC P0833: Notes

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

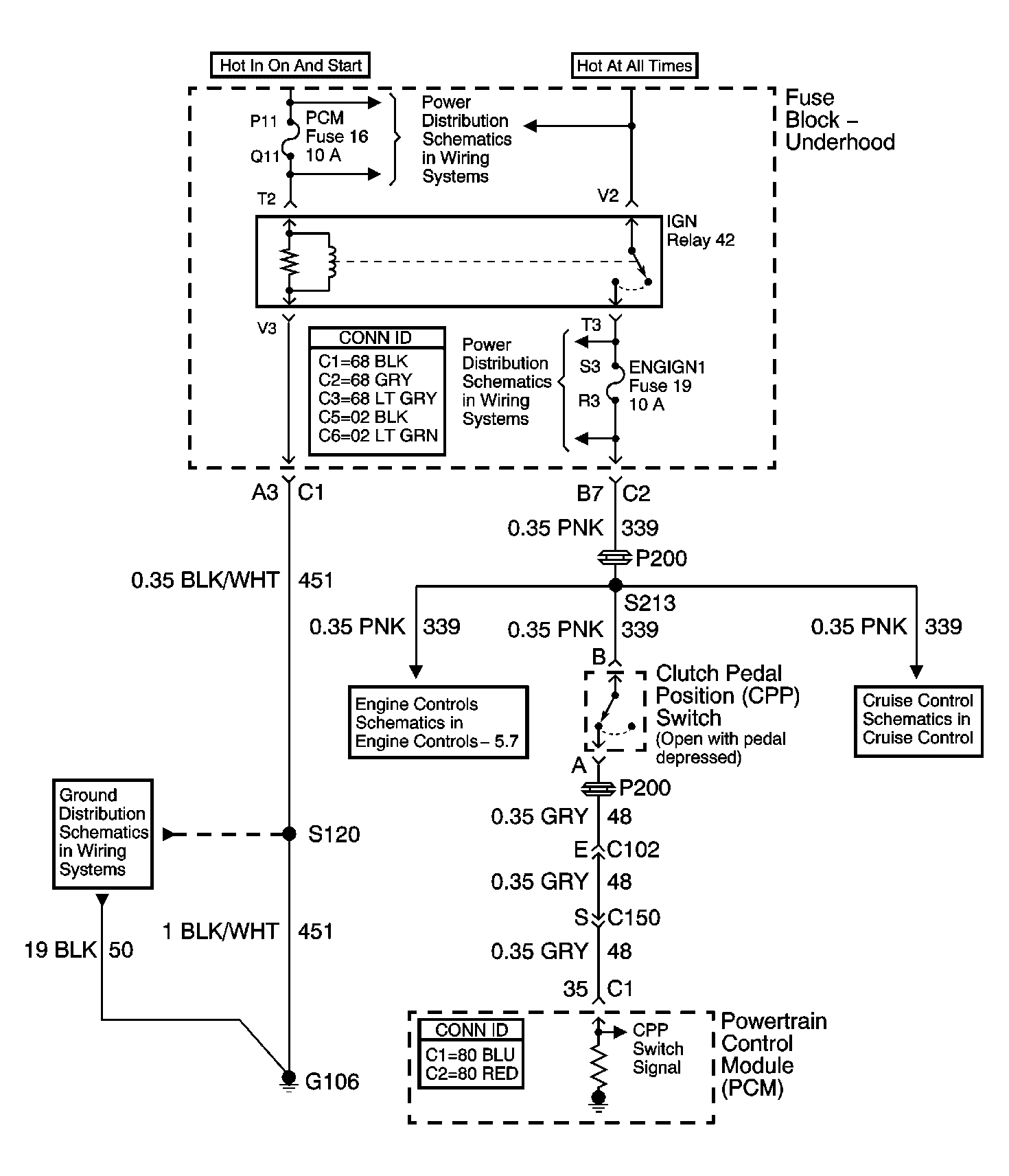

Fig 1: DTC P0833 Schematics
GM892699Courtesy of GENERAL MOTORS CORP.
