DTC P0801: Notes

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

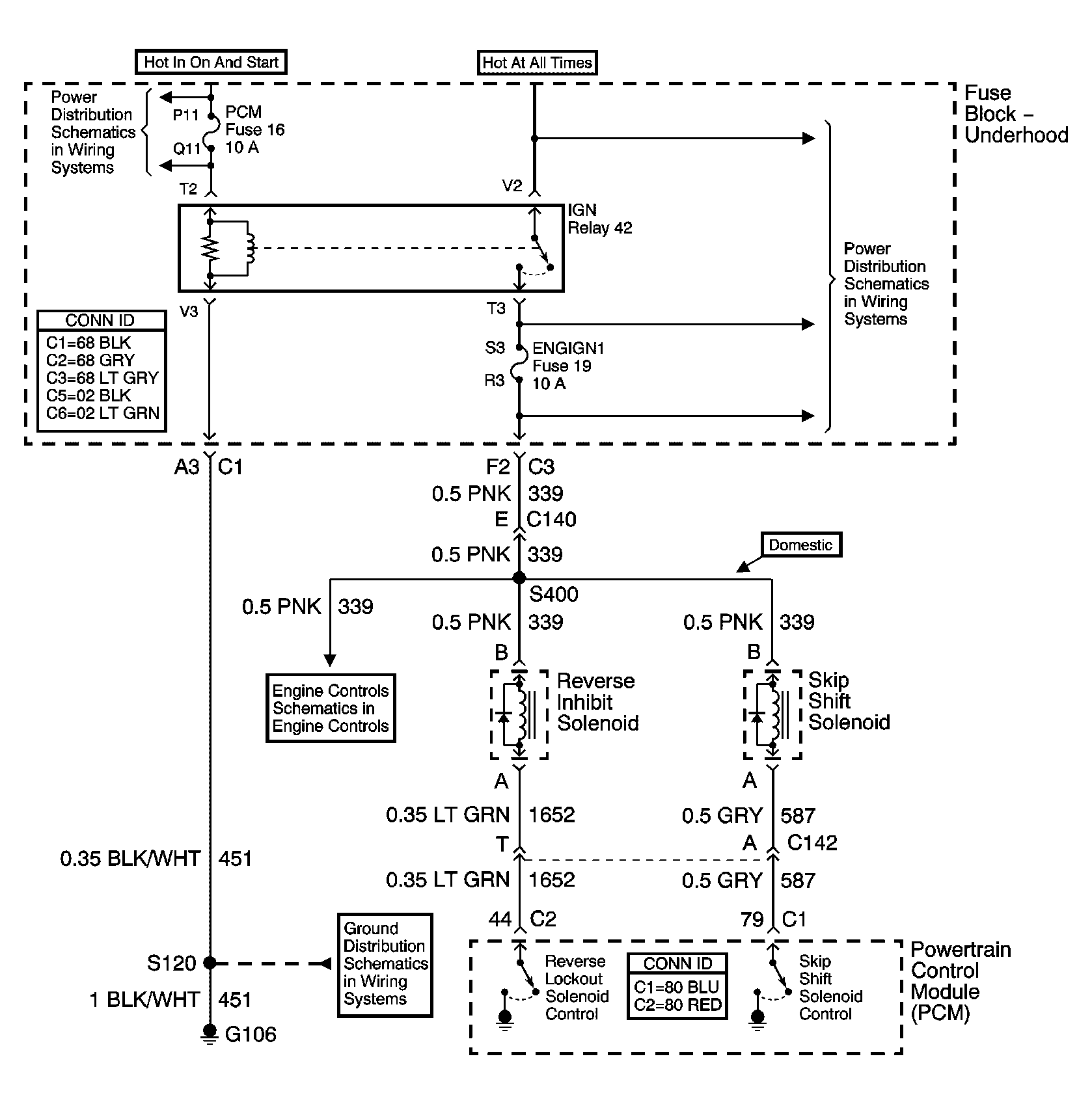

Fig 1: DTC P0801 Schematics
GM1206011Courtesy of GENERAL MOTORS CORP.
