Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the headliner in order to gain access to the wire harness.
  2. Position the sunshade to the headliner.
  3. Connect the sunshade electrical connector to the headliner harness.
  4. Using a glue gun, hot melt the electrical connectors (1) to the headliner substrate, ensuring the connectors are securely attached to the substrate.

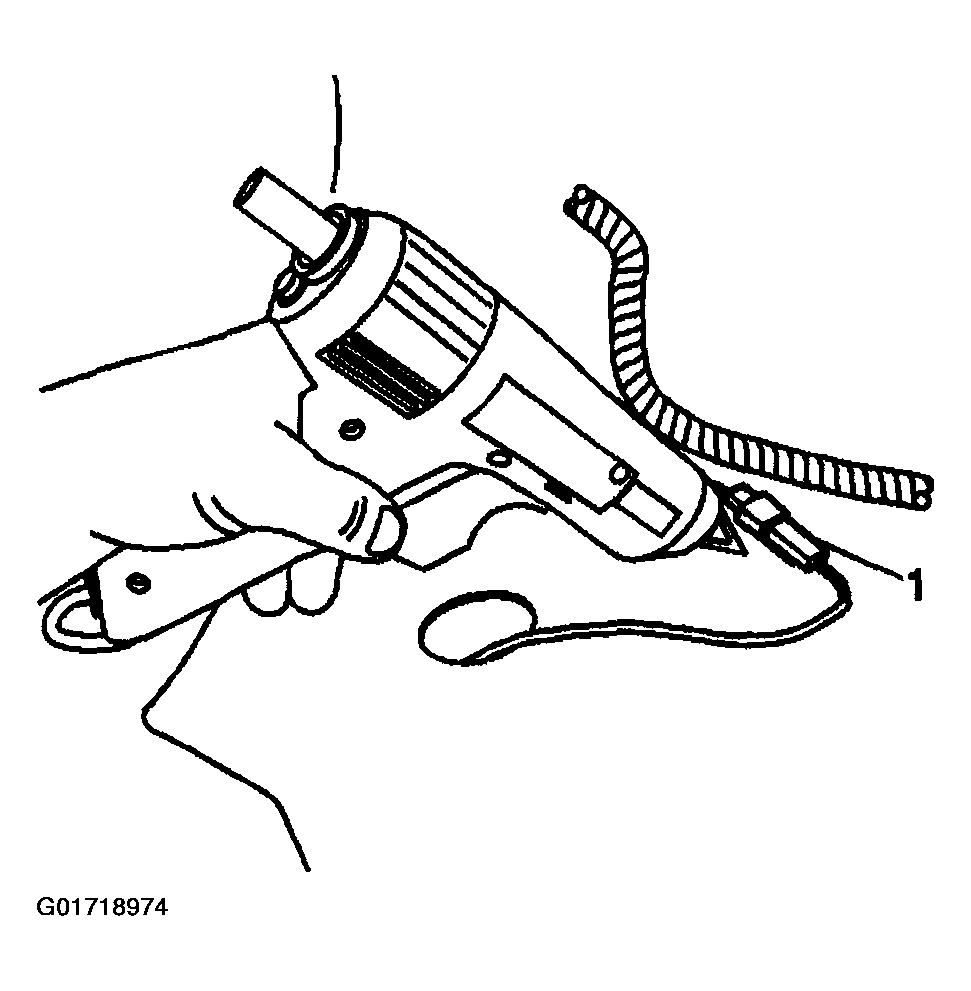

    Fig 1: Connecting Sunshade Electrical Connector
    G01718974Courtesy of GENERAL MOTORS CORP.
  5. Route the wire harness until fully seated into the sunshade wire harness channel located on the pivot arm.

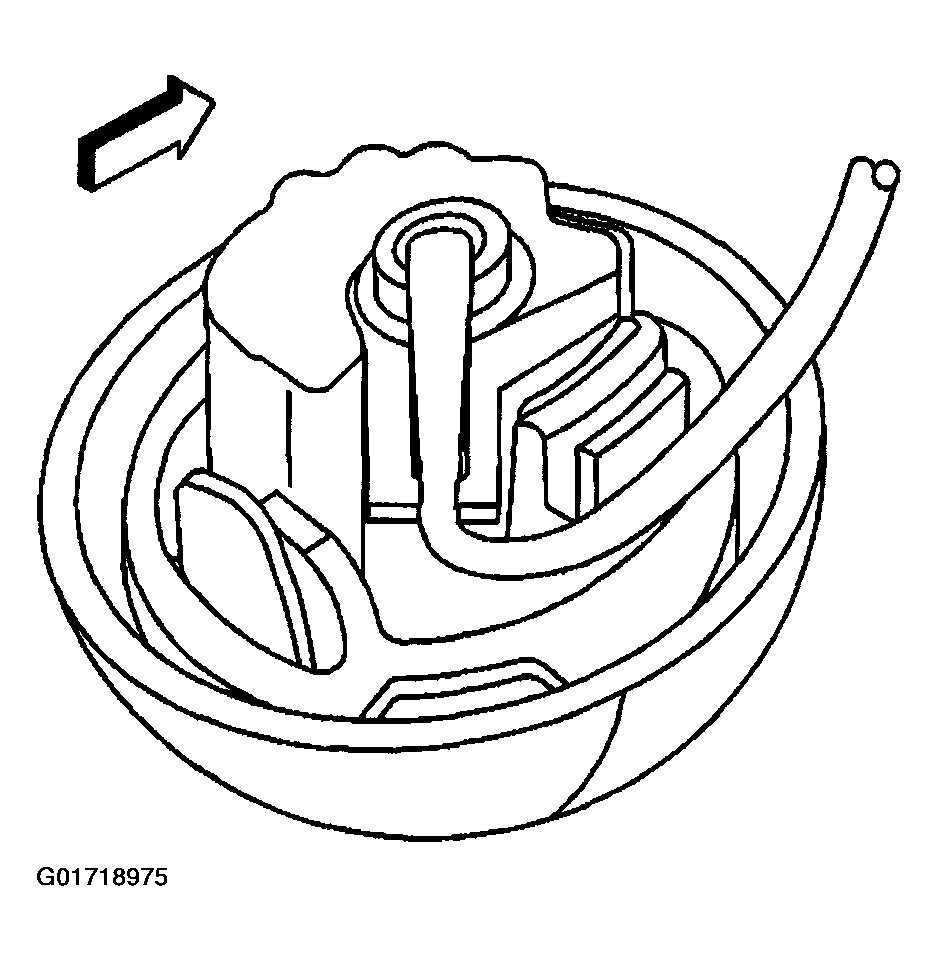

    Fig 2: Routing Wire Harness Into Sunshade Wire Harness Channel
    G01718975Courtesy of GENERAL MOTORS CORP.

    Important:  If the wire harness retaining clip is removed from the sunshade for any reason, a new retaining clip must be installed.

  6. Position the wire harness retaining clip between the headliner and the roof panel.
  7. Position the index tabs on the wire harness retaining clip to the pivot arm and install the clip until fully seated.

    With the wire harness retaining clip installed, the sunshade should remain attached to the headliner.

    Fig 3: Installing Wire Harness Retaining Clip
    G01718976Courtesy of GENERAL MOTORS CORP.
  8. Position the inboard retainer (1) to the roof panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

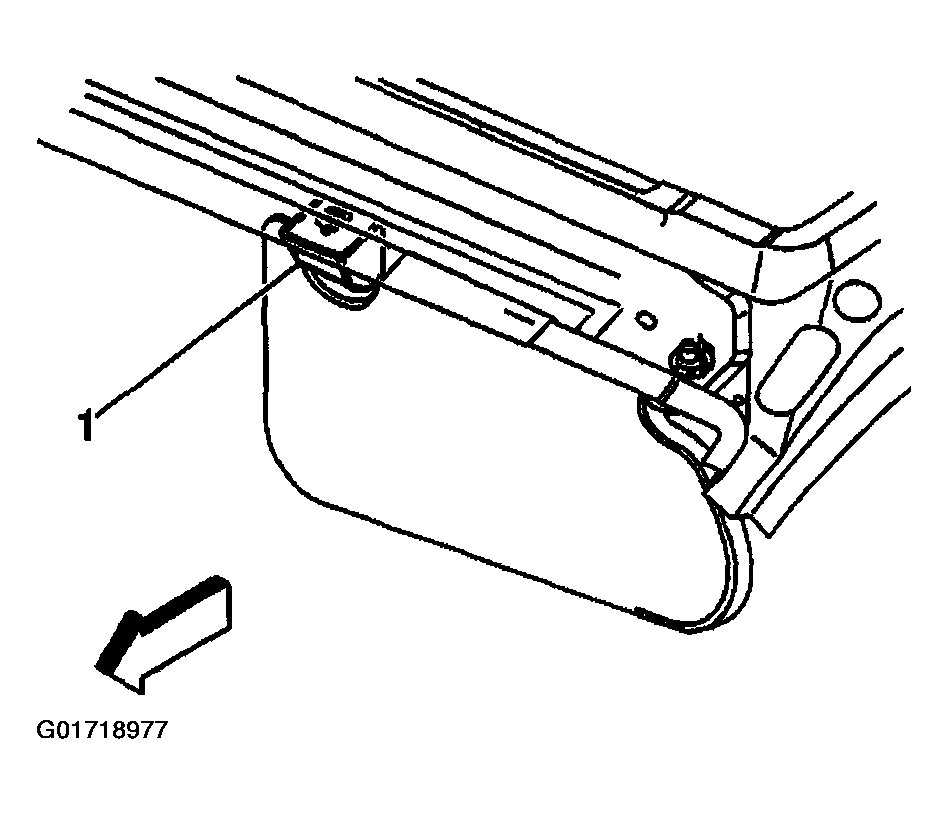

    Fig 4: Aligning Inboard Retainer To Roof Panel
    G01718977Courtesy of GENERAL MOTORS CORP.
  9. Install the inboard retaining screw.

    Tighten

    Tighten the screw to 1.2 N.m (10 lb in).

  10. With the sunshade parallel to the windshield, index the pivot arm tab to the roof panel slot.
    Fig 5: Positioning Pivot Arm Tab To Roof Panel Slot
    G01718978Courtesy of GENERAL MOTORS CORP.
  11. Apply and maintain upward pressure to the pivot arm while rotating the sunshade parallel to the side window. The sunshade arm should appear flush with the bezel.
  12. Rotate and clip the sunshade to the inboard retainer.
    Fig 6: Sunshade Arm Properly Installed In Bezel
    G01718979Courtesy of GENERAL MOTORS CORP.
  13. Ensure the pivot arm retaining tabs are fully seated to the roof panel.
  14. Install the front assist handle to the roof panel. Refer to Assist Handle Replacement .
  15. Install the windshield garnish molding. Refer to Garnish Molding Replacement - Windshield Pillar .
  16. Install the center pillar trim panel. Refer to GARNISH MOLDING REPLACEMENT-Center Pillar .
  17. Return the bucket seat to an upright position.
