Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front and rear door sill plates. Refer to DOOR SILL PLATE REPLACEMENT-Front  and Door Sill Plate Replacement - Rear (TrailBlazer, Envoy, Bravada)  or Door Sill Plate Replacement - Rear (TrailBlazer EXT, Envoy XL) .
  2. Move the seat to a forward position.
  3. Release the 4 retaining clips that attach the garnish molding to the center pillar.
  4. Disconnect the electrical connector from the temperature sensor, if equipped.
  5. Remove the garnish molding from the vehicle.

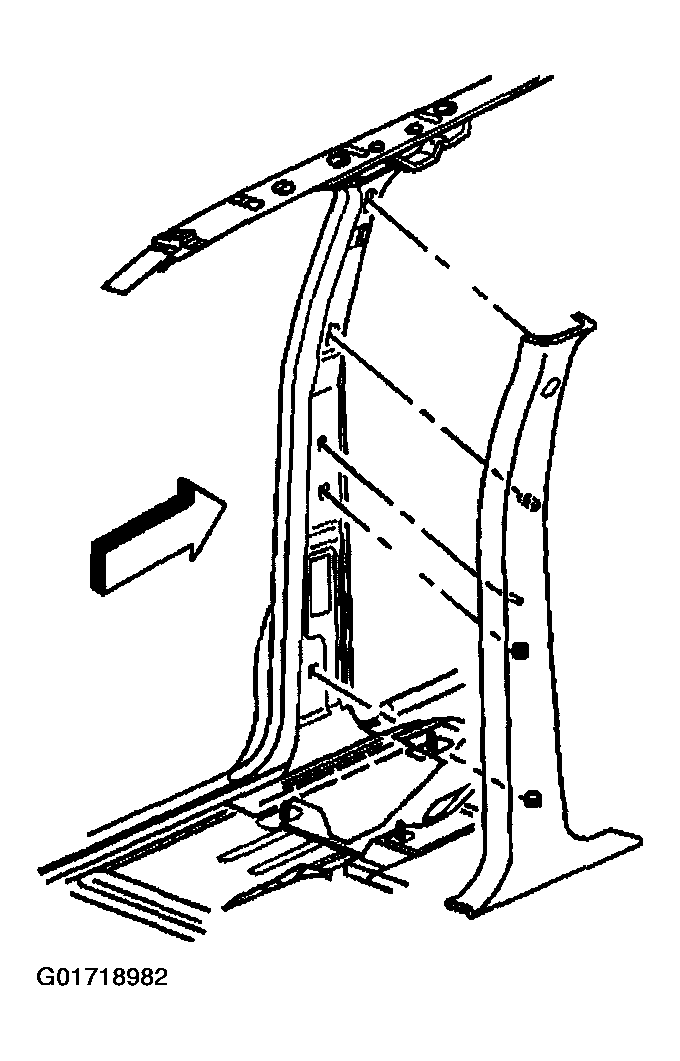

    Fig 1: Removing Center Pillar Garnish Molding
    G01718982Courtesy of GENERAL MOTORS CORP.
