Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the garnish molding to the center pillar.
  2. Connect the electrical connector to the temperature sensor, if equipped.
  3. Index the positioning tabs on the garnish molding to the corresponding holes in the center pillar.
  4. Seat the 4 garnish molding retaining tabs to the center pillar.
  5. Return the seat to neutral position.
  6. Install the front and rear door sill plates. Refer to DOOR SILL PLATE REPLACEMENT-Front  and Door Sill Plate Replacement - Rear (TrailBlazer, Envoy, Bravada)  or Door Sill Plate Replacement - Rear (TrailBlazer EXT, Envoy XL) .

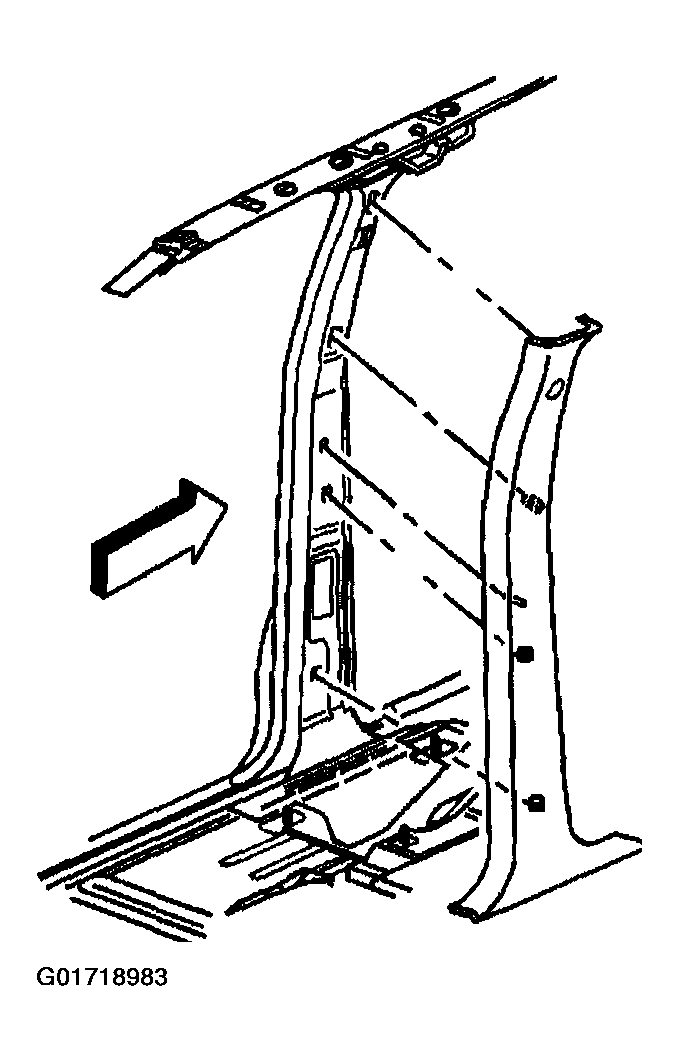

    Fig 1: Installing Center Pillar Garnish Molding
    G01718983Courtesy of GENERAL MOTORS CORP.
