Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Starting at the top of the garnish molding, carefully release the upper attaching clip that retains the garnish molding to the first pillar.
  2. Release the remaining 2 retaining clips from the first pillar.
  3. Remove the garnish molding (1) from the vehicle.

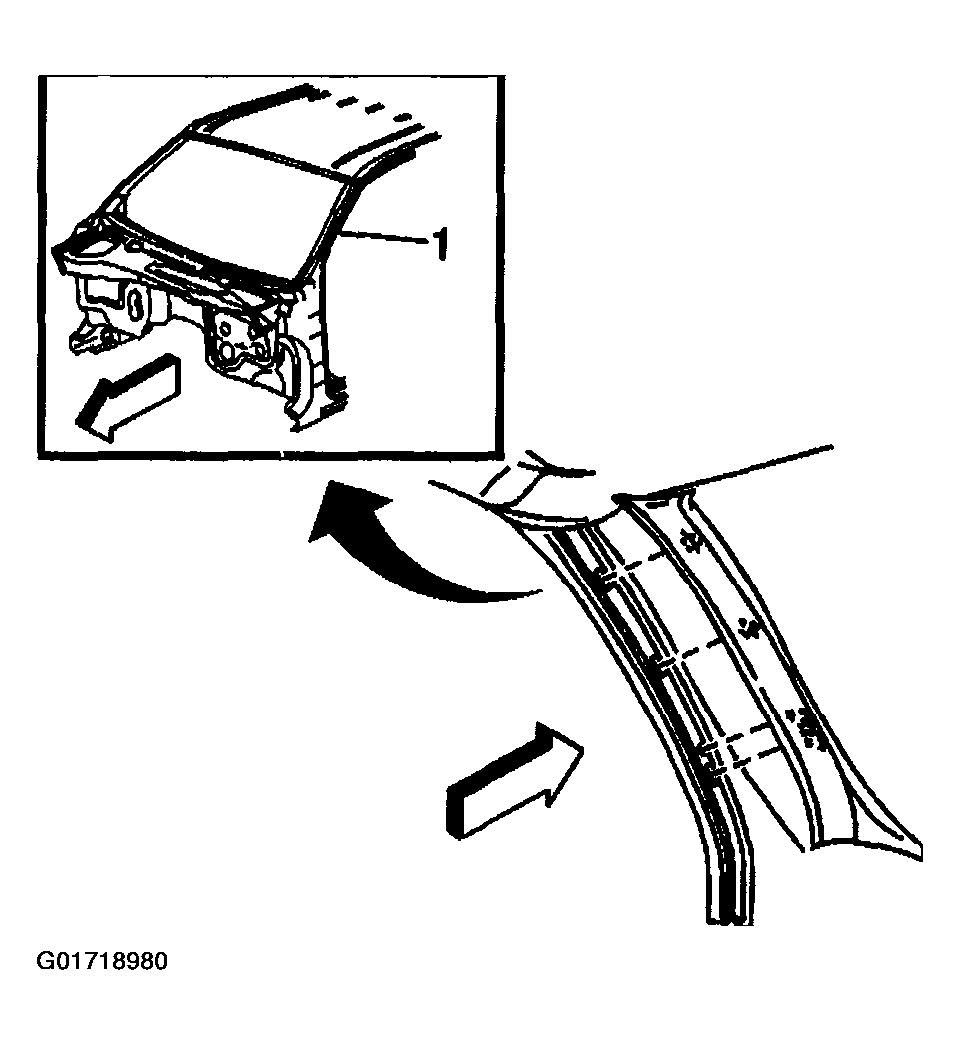

    Fig 1: Locating Windshield Pillar Garnish Molding
    G01718980Courtesy of GENERAL MOTORS CORP.
