Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the garnish molding (1) to the vehicle.
  2. Align the locating fingers to the corresponding holes in first pillar.
  3. Starting at the top of the garnish molding, seat the attachment clips that retain the garnish molding to the first pillar.

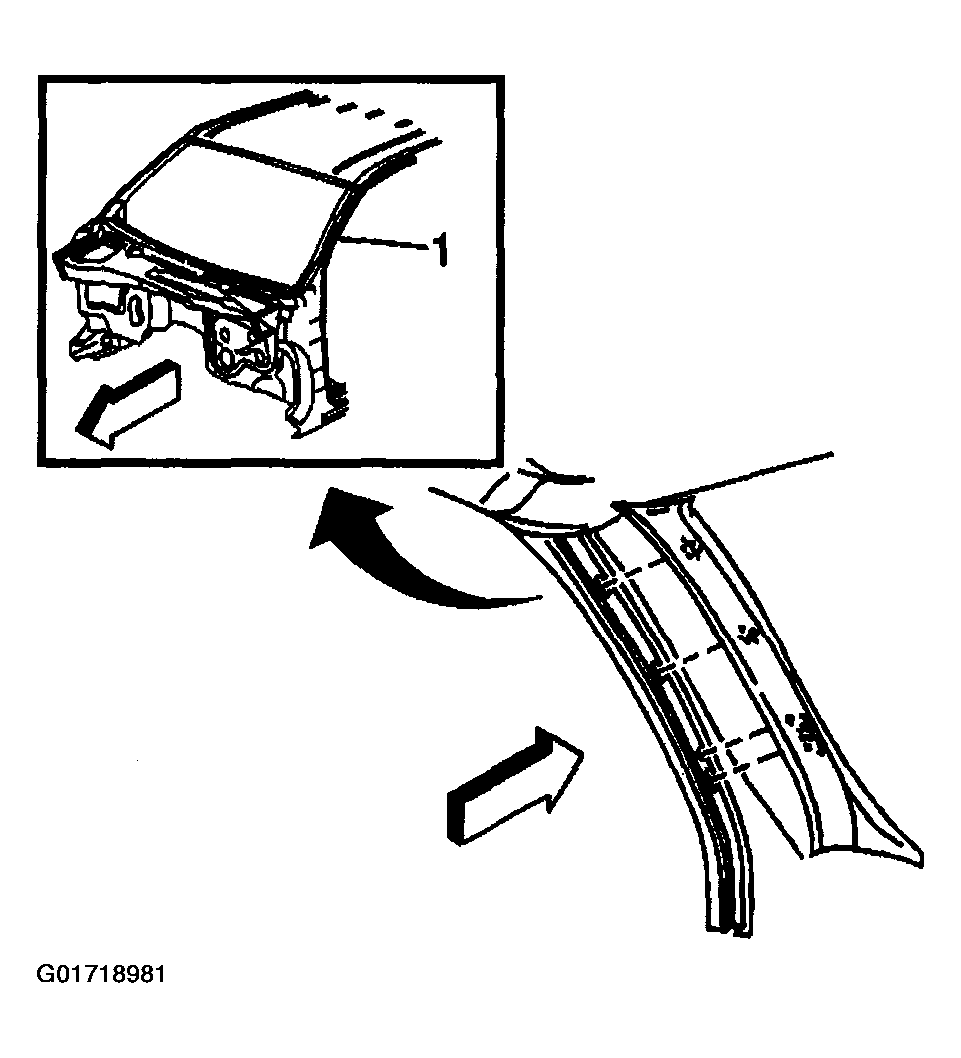

    Fig 1: Identifying Windshield Pillar Garnish Molding
    G01718981Courtesy of GENERAL MOTORS CORP.
