Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool in order to release the 4 sill plate retaining tabs.
  2. Remove the sill plate from the door frame.
  3. Remove any retaining tabs that remain attached to the door frame.

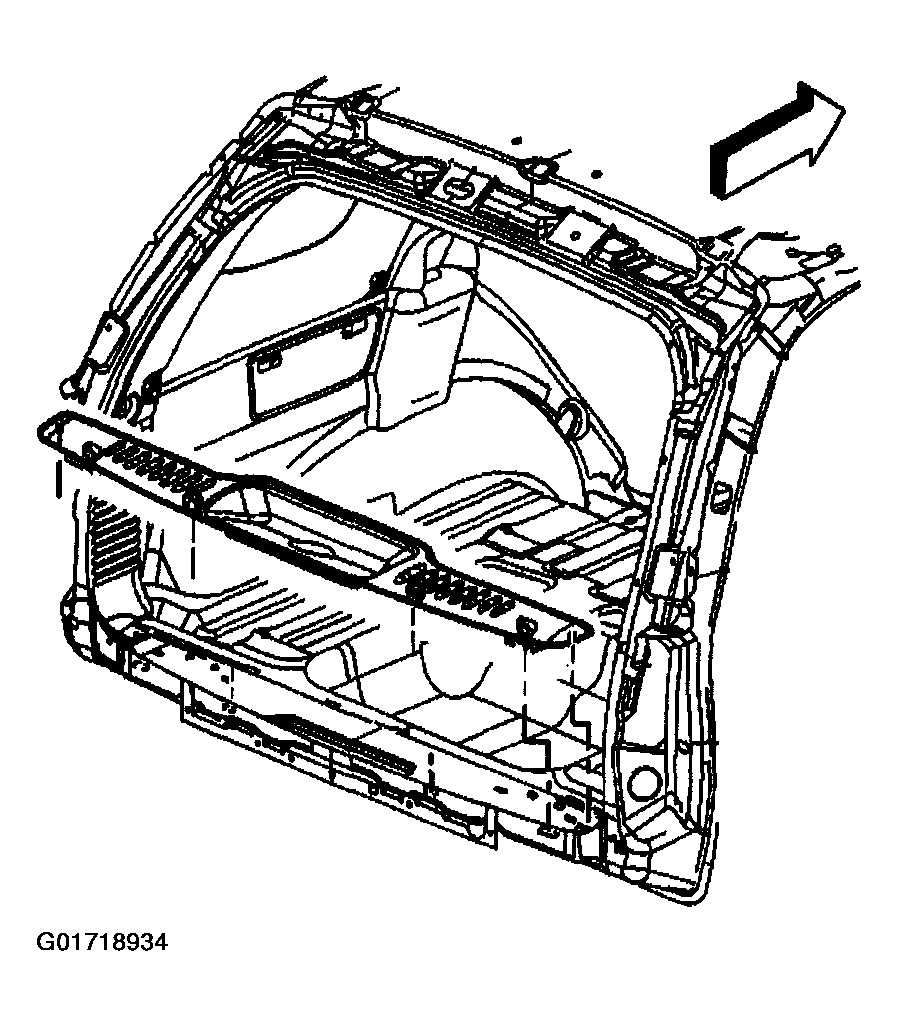

    Fig 1: Removing Lift Gate Door Sill Plate
    G01718934Courtesy of GENERAL MOTORS CORP.
