Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that all 4 retaining tabs are securely attached to the sill plate.
  2. Align the retaining tabs to the liftgate door frame slots.
  3. Push down on the sill plate, seating the retaining tabs to the door frame.

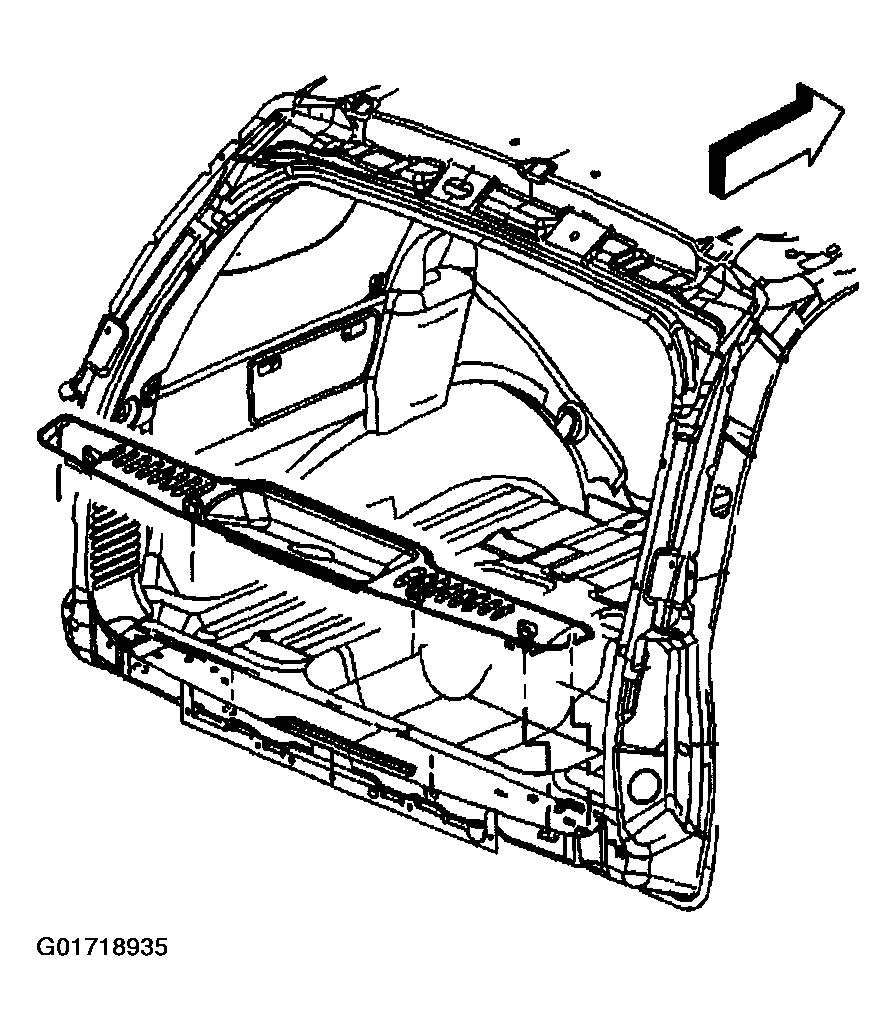

    Fig 1: Installing Lift Gate Door Sill Plate
    G01718935Courtesy of GENERAL MOTORS CORP.
