Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. If removing the right sill plate, remove the right insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT-RIGHT .
  2. Starting at the rear of the sill plate, use a flat-bladed tool in order to release the 5 retaining tabs.
  3. If removing the left sill plate, remove the sill plate from the hood release handle.
  4. Remove the sill plate from the door frame.
  5. Remove any retaining tabs that remain attached to the door frame.

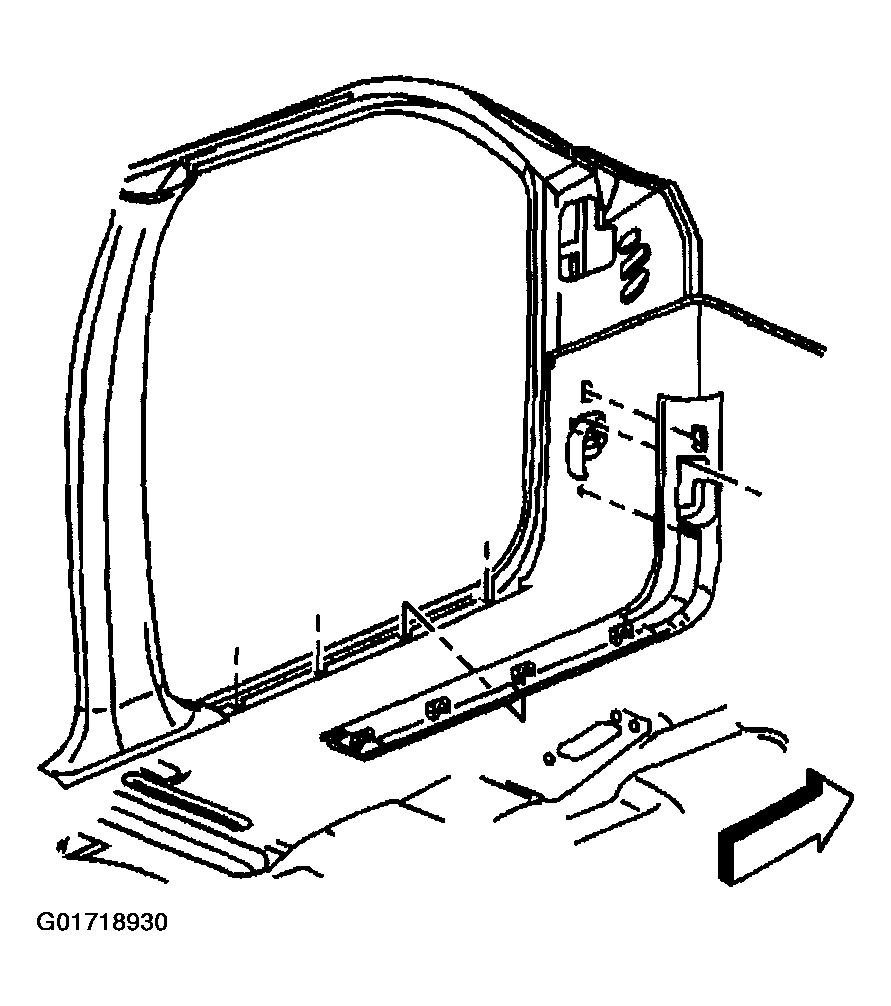

    Fig 1: Removing Front Door Sill Plate
    G01718930Courtesy of GENERAL MOTORS CORP.
