Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the SIR. Refer to DISABLING SYSTEM in SIR.
  2. Remove the front bucket seats. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.
  3. Remove the front door sill plates. Refer to DOOR SILL PLATE REPLACEMENT-Front .
  4. Remove the center pillar trim panels. Refer to GARNISH MOLDING REPLACEMENT-Center Pillar .
  5. Remove the floor console. Refer to CONSOLE REPLACEMENT in Instrument Panel, Gages and Console.
  6. Remove the floor console bracket. Refer to BRACKET REPLACEMENT-CONSOLE FLOOR in Instrument Panel, Gages and Console.
  7. Remove the carpet from the vehicle.

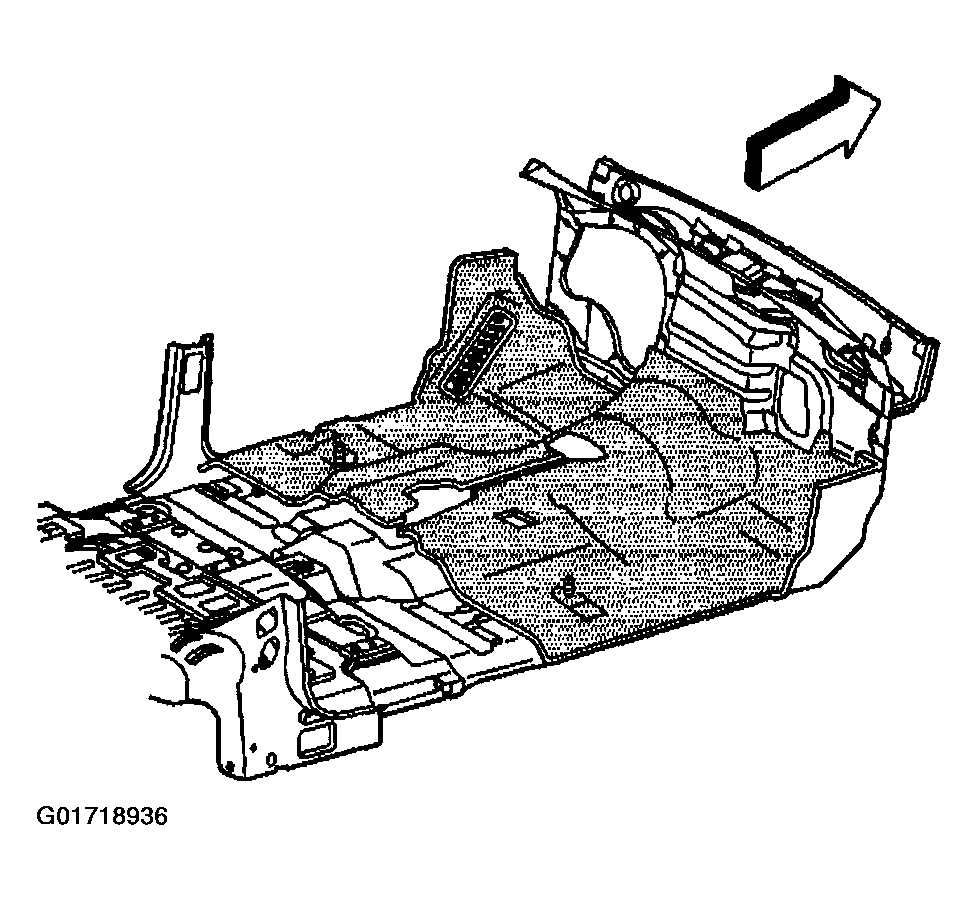

    Fig 1: Identifying Front Carpet
    G01718936Courtesy of GENERAL MOTORS CORP.
