Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the catalytic converter heat shield rear 2 bolts where the catalytic converter heat shield connects to the muffler heat shield.
  3. Remove the remaining exhaust muffler heat shield bolts and remove the heat shield from the floor panel studs.

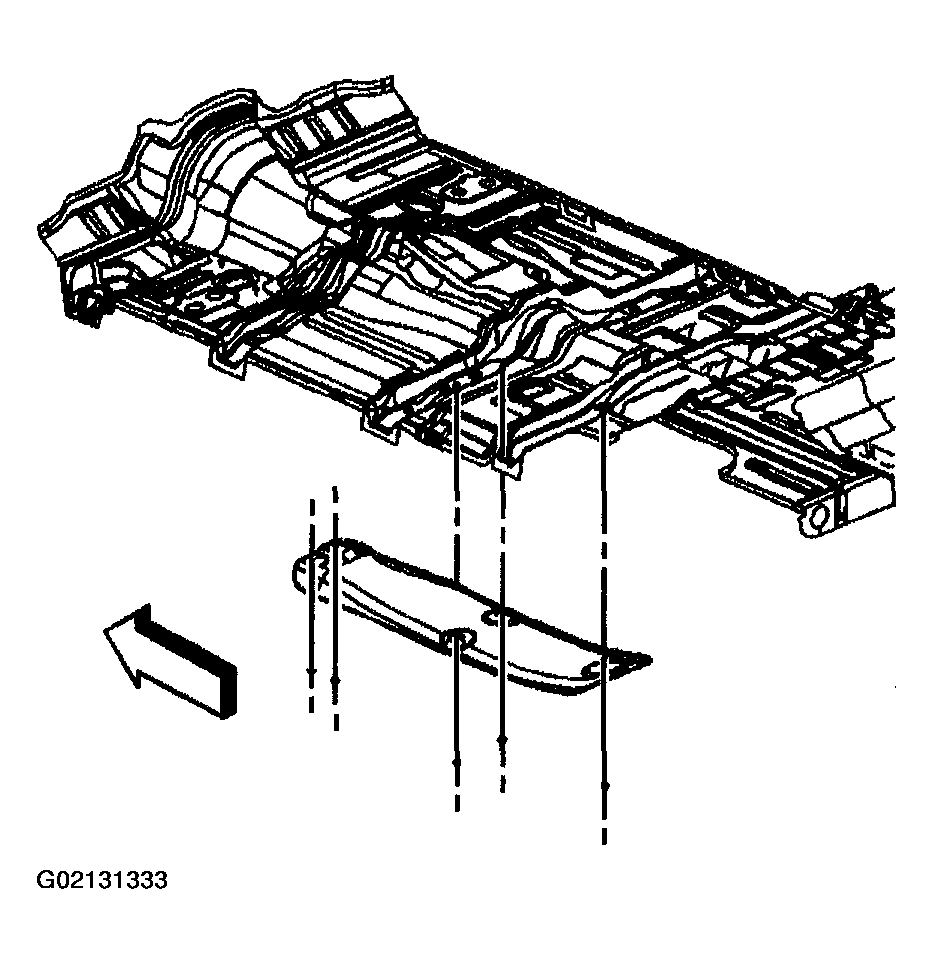

    Fig 1: Removing Heat Shield From Floor Panel Studs
    G02131333Courtesy of GENERAL MOTORS CORP.
