Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the muffler heat shield to the floor panel studs placing the muffler heat shield under the rear part of the converter heat shield.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Secure the muffler heat shield with 5 bolts.
Tighten

Tighten the exhaust muffler heat shield bolts to 7 N.m (62 lb in).
Lower the vehicle.

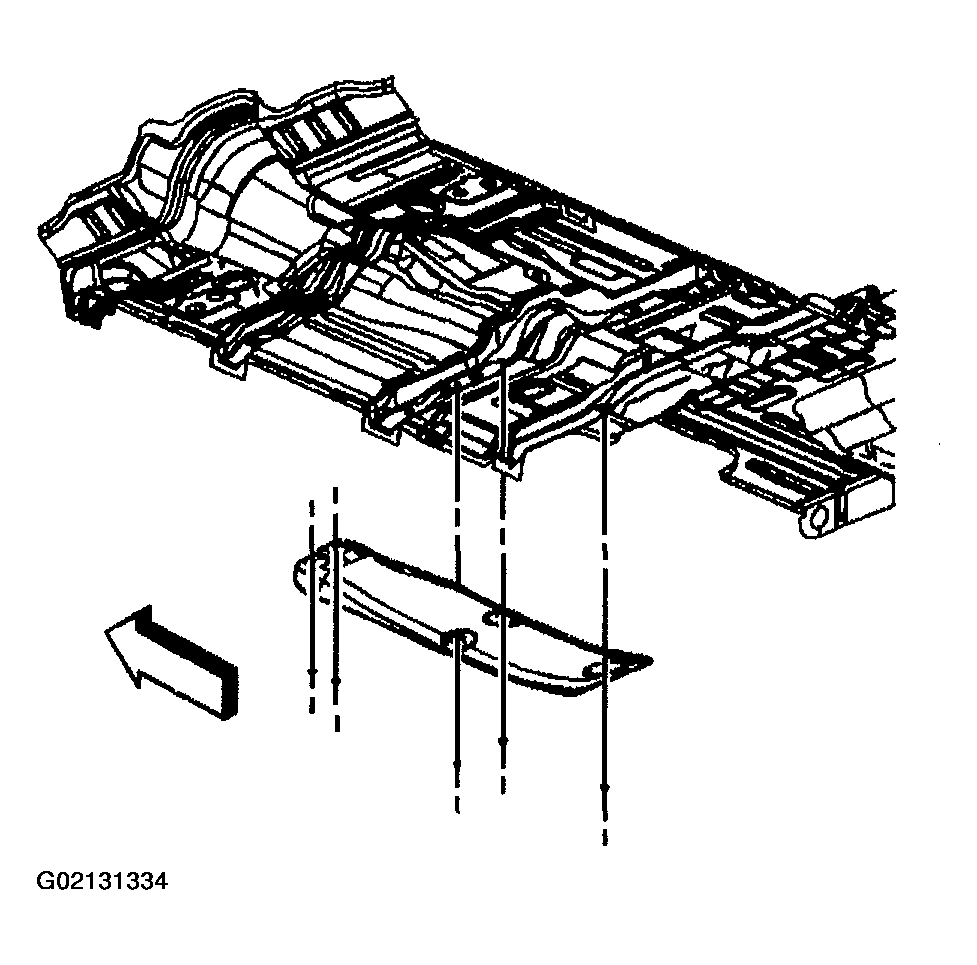

Fig 1: Installing Muffler Heat Shield To Floor Panel Studs
Courtesy of GENERAL MOTORS CORP.
