Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the heat shield, and bolts to the exhaust manifold.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

  2. Install the spark plugs. Refer to SPARK PLUGS .

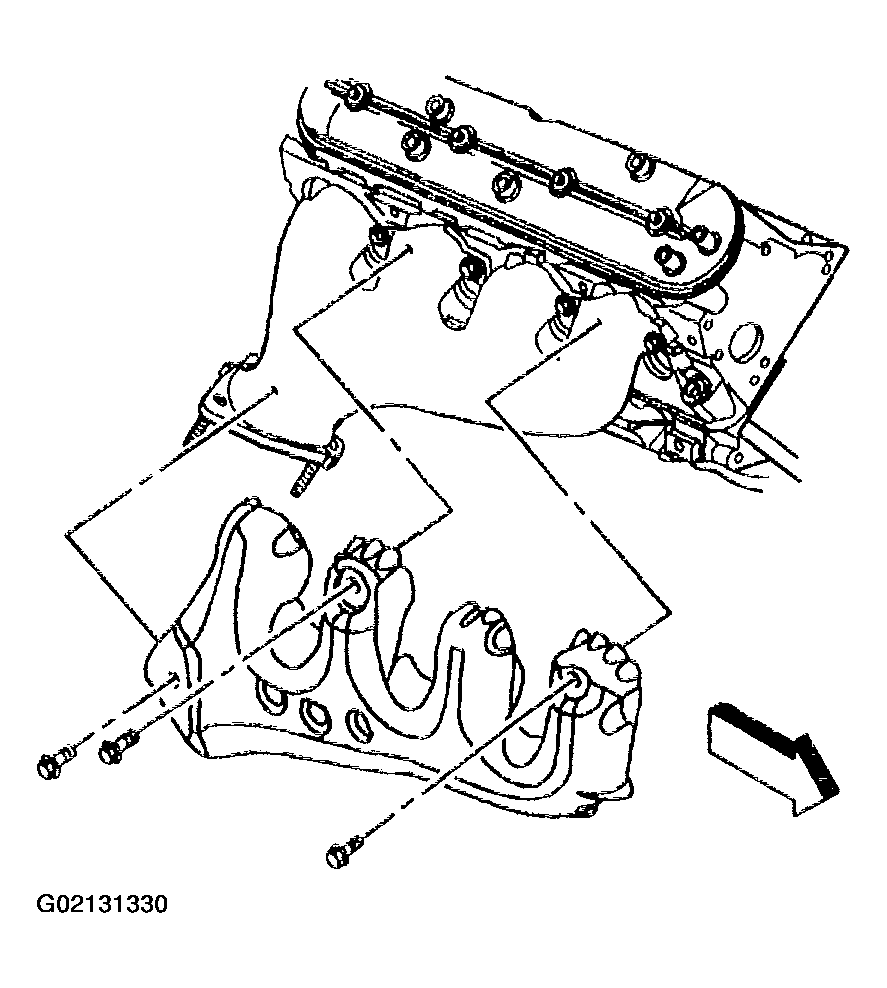

    Fig 1: Installing Heat Shield & Bolts To Right Exhaust Manifold
    G02131330Courtesy of GENERAL MOTORS CORP.
