Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Remove the nuts that secure the converter pipe to the exhaust manifold.

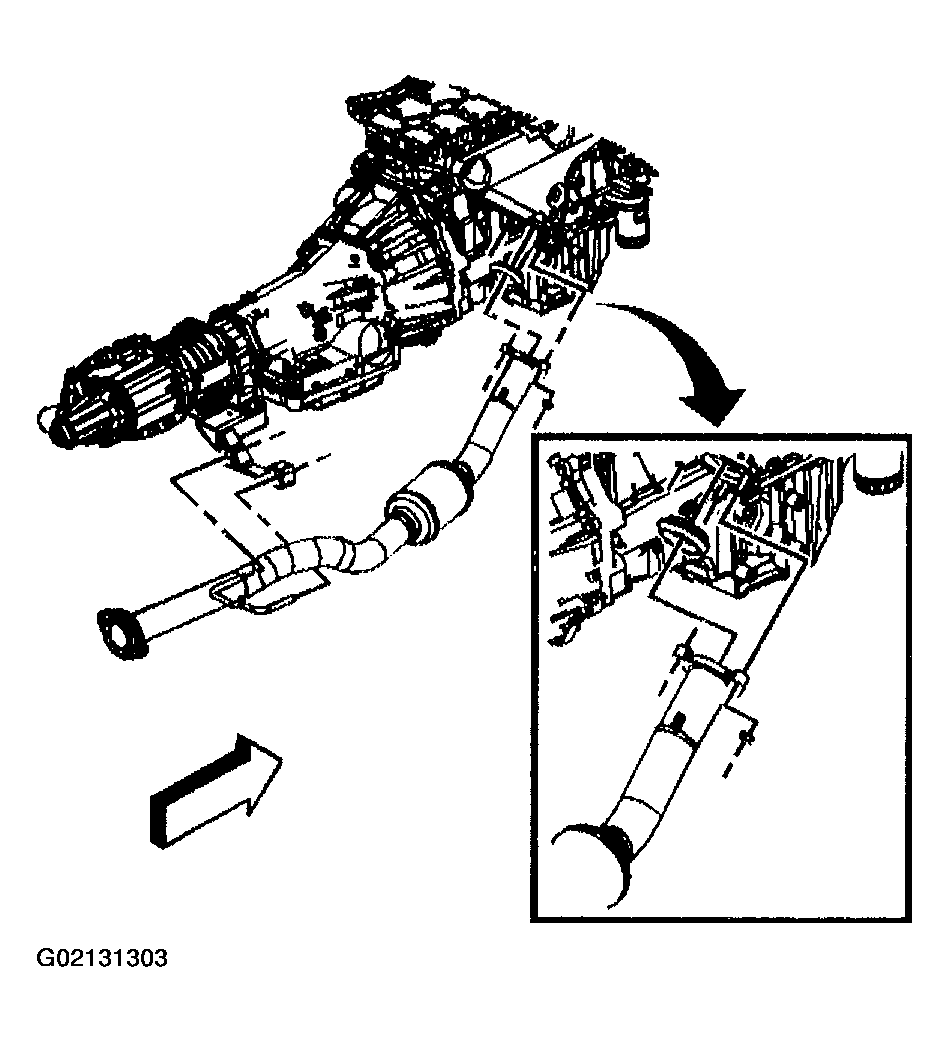

Fig 1: Removing Converter Pipe To Exhaust Manifold Nuts
Courtesy of GENERAL MOTORS CORP.
Remove the nuts that secure the converter pipe to the muffler.

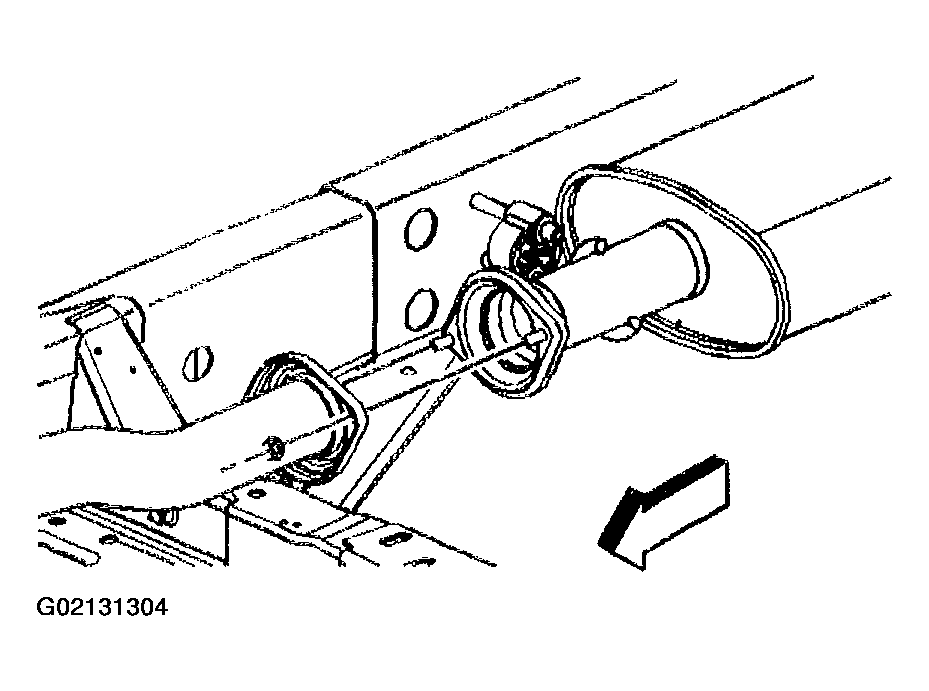

Fig 2: Removing Converter Pipe To Muffler Nuts
Courtesy of GENERAL MOTORS CORP.
Slide the catalytic converter out of the exhaust insulators and out of the vehicle.

Fig 3: Sliding Catalytic Converter Out Of Exhaust Insulators
Courtesy of GENERAL MOTORS CORP.
