Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the converter hangars into the exhaust insulators in order to secure the pipe to the vehicle.

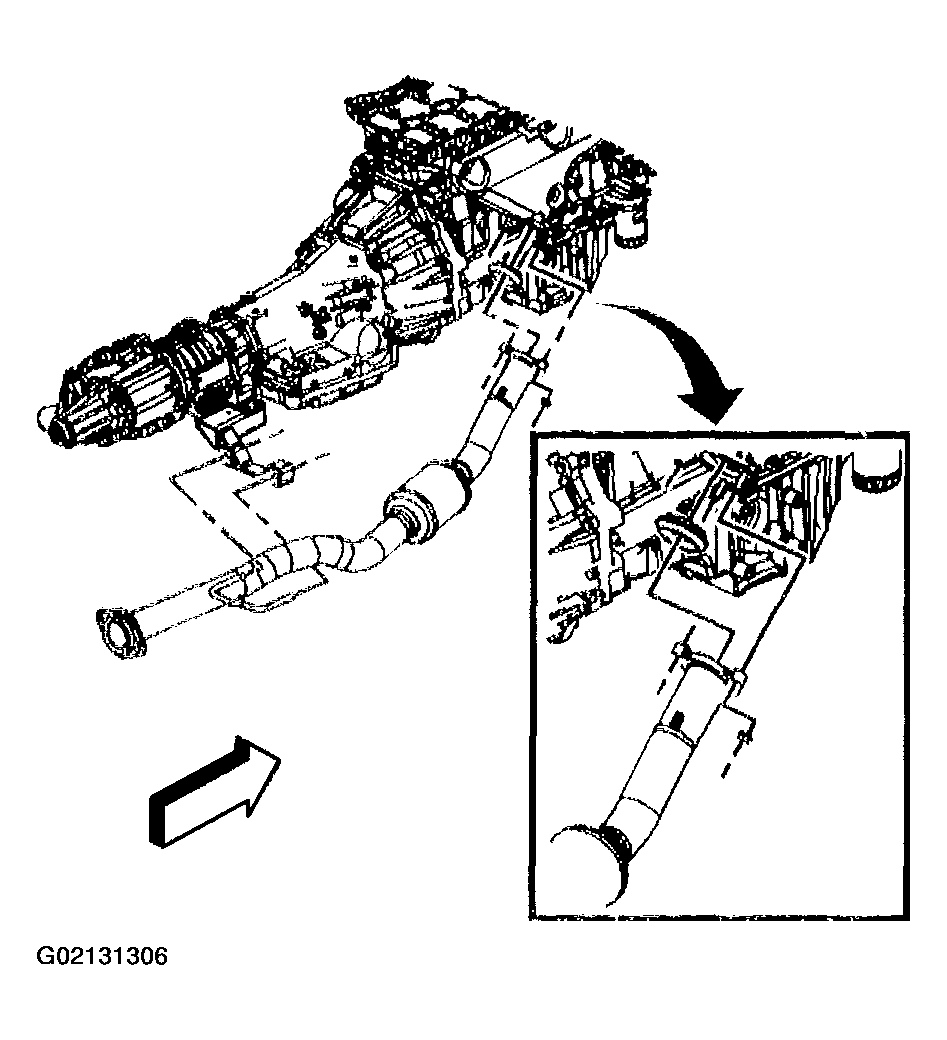

Fig 1: Installing Converter Hangars Into Exhaust Insulators
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the converter pipe to the muffler and secure the pipe with the nut.
Tighten

Tighten the converter pipe to muffler nuts to 45 N.m (33 lb ft).

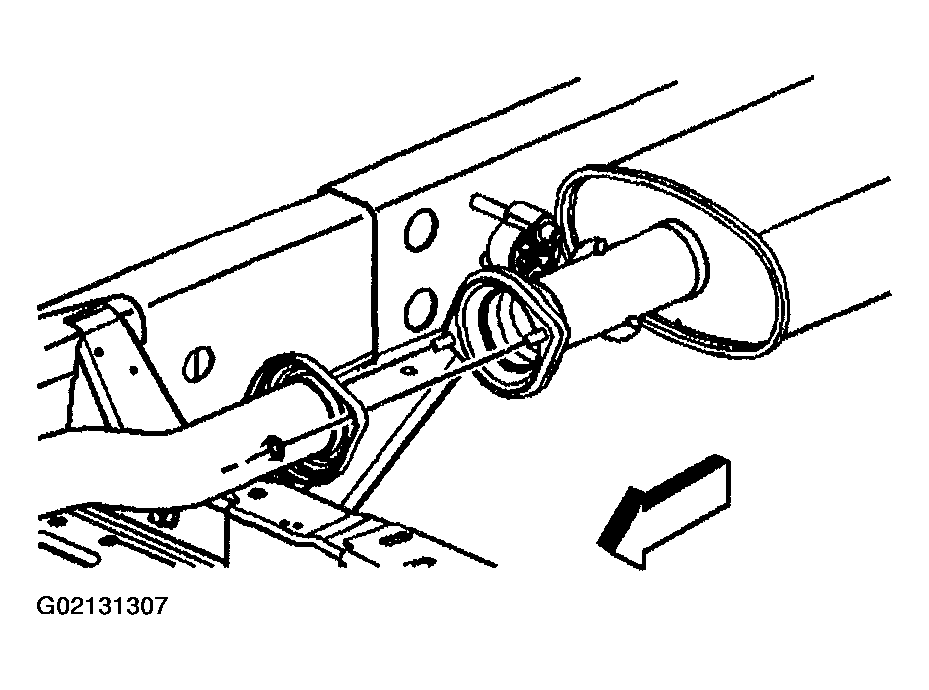

Fig 2: Installing Converter Pipe To The Muffler With Nuts
Courtesy of GENERAL MOTORS CORP.
Install the converter pipe to the exhaust manifold with the exhaust seal, and secure the pipe with the nuts.
Tighten

Tighten the converter pipe to the exhaust manifold to 50 N.m (37 lb ft).
Lower the vehicle.

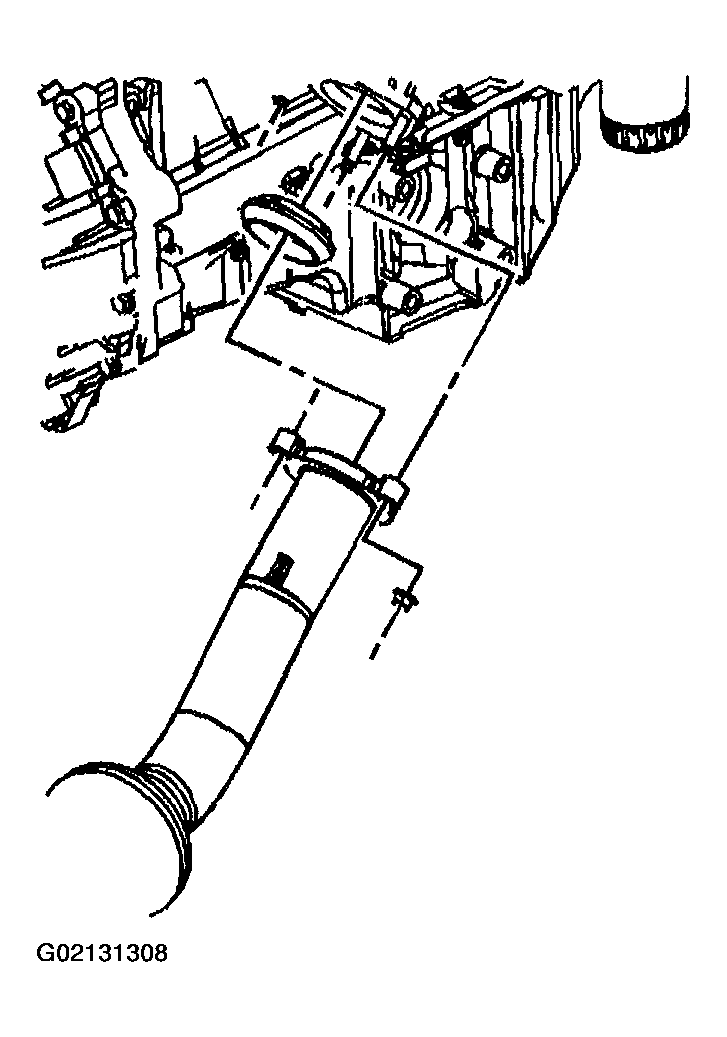

Fig 3: Installing Converter Pipe To Exhaust Manifold With Exhaust Seal & Nuts
Courtesy of GENERAL MOTORS CORP.
