Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the 5 bolts securing the heat shield to the floor panel studs.
  3. Remove the heat shield from the vehicle.

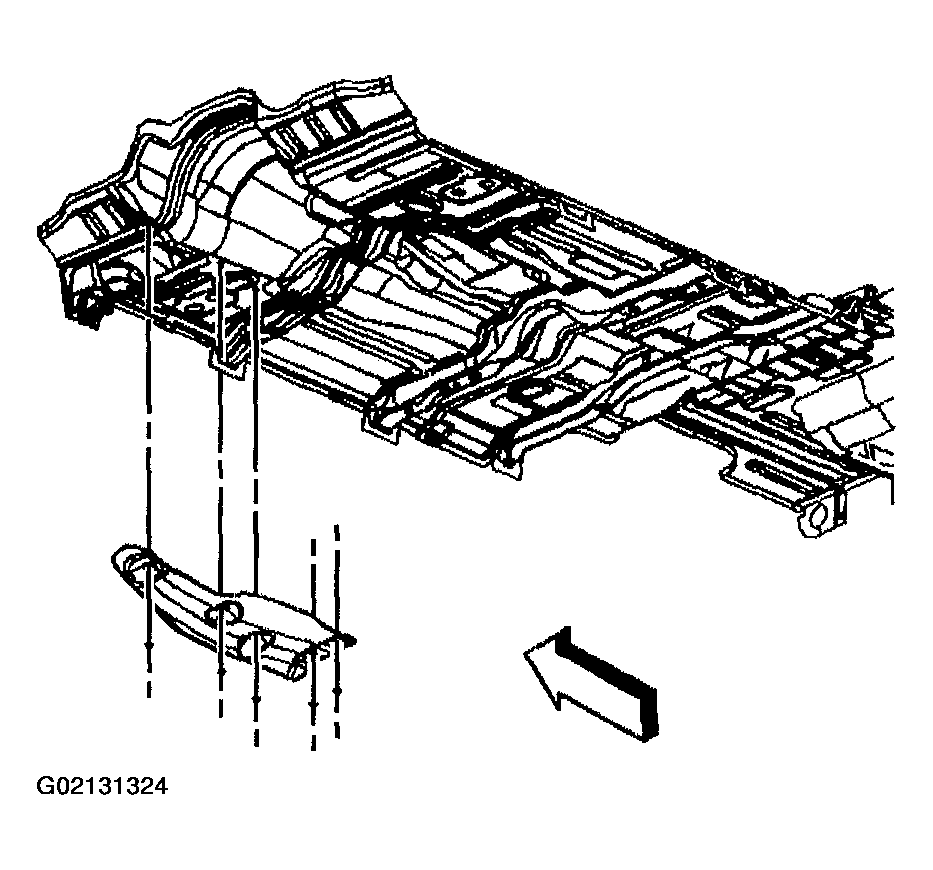

    Fig 1: Removing Heat Shield From Vehicle
    G02131324Courtesy of GENERAL MOTORS CORP.
