Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to BATTERY REPLACEMENT   .
  2. Loosen and remove the 5 bolts that secure the battery tray to the wheelhouse.
  3. Remove the battery tray.

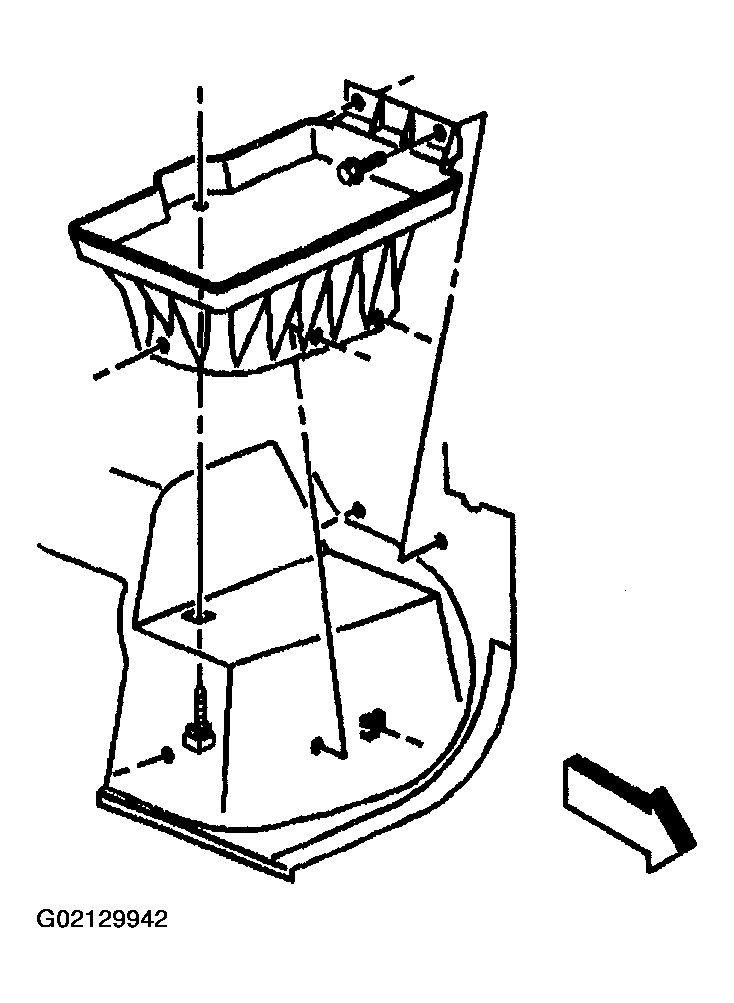

    Fig 1: Removing Battery Tray
    G02129942Courtesy of GENERAL MOTORS CORP.
